IPC-HDBW4831E-ASE - DAHUA DH-IPC-HDBW4831E-ASE 8MP IR Mini Dome Network Camera With Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ IPC-HDBW4831E-ASE

In stock
SKU
IPC-HDBW4831E-ASE
Rating:
100% of 100
$168.89

IPC-HDBW4831E-ASE

8MP IR Mini Dome Network Camera

> 1/2.5” 8Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 triple-stream encoding
> 15fps@4K(3840×2160),25/30fps@3M(2304×1296)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (4mm optional)
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 30m
> Micro SD memory, IP67, IK10, PoE
>DAHUA Logo,English firmware
>100% original products manufactured by DAHUA

The delivery time is 25 working days usually, some times can complete early.

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Enough stock, welcome to order


in Warehouse

IPC-HDBW4831E-ASE - DAHUA DH-IPC-HDBW4831E-ASE 8MP IR Mini Dome Network Camera With Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ h Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ IPC-HDBW4831E-ASE

IPC-HDBW4831E-ASE

8MP IR Mini Dome Network Camera

> 1/2.5” 8Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 triple-stream encoding
> 15fps@4K(3840×2160),25/30fps@3M(2304×1296)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (4mm optional)
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 30m
> Micro SD memory, IP67, IK10, PoE
>,English firmware
>100% original products manufactured by DAHUA

IPC-HDBW4831E-ASE - DAHUA DH-IPC-HDBW4831E-ASE 8MP IR Mini Dome Network Camera With Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ h Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ IPC-HDBW4831E-ASE SYSTEM OVERVIEW



With upgraded H.265 encoding technology, Eco-savvy series brings high efficient video compression capability. It can save bandwidth and storage. Meanwhile, the series features starlight, smart IR technology and intelligent image analysis techniques. This series supports reminder function, meanwhile fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard.

DAHUA Smart Shop solution

IPC-HDBW4831E-ASE - DAHUA DH-IPC-HDBW4831E-ASE 8MP IR Mini Dome Network Camera With Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ h Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ IPC-HDBW4831E-ASE FUNCTIONS

ePoE technology

The ePoE technology of Dahua, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.ePoE technology

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video analysis (IVS)

IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Environmental

cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity, allowing the camera to operate in the harshest environments.

Protection(IP67, IK10, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 4KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests(IK10), the camera is the choice for installation in even the most unforgiving environments.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.



IPC-HDBW4831E-ASE - DAHUA DH-IPC-HDBW4831E-ASE 8MP IR Mini Dome Network Camera With Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ h Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ IPC-HDBW4831E-ASE PICTURE



DAHUA IPC-HDBW4831E-ASE,DAHUA DH-IPC-HDBW4831E-ASE,IPC-HDBW4831E-ASE,DH-IPC-HDBW4831E-ASE,N84CL52,DH-IPC-HDBW4831EN-ASE,DH-IPC-HDBW4831EP-ASE,hd mini dome camera,Wholesales DAHUA Dome Network Camera


IPC-HDBW4831E-ASE - DAHUA DH-IPC-HDBW4831E-ASE 8MP IR Mini Dome Network Camera With Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ h Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ IPC-HDBW4831E-ASE  DIMENSIONS

 DAHUA DH-IPC-HDBW4631E-ASE

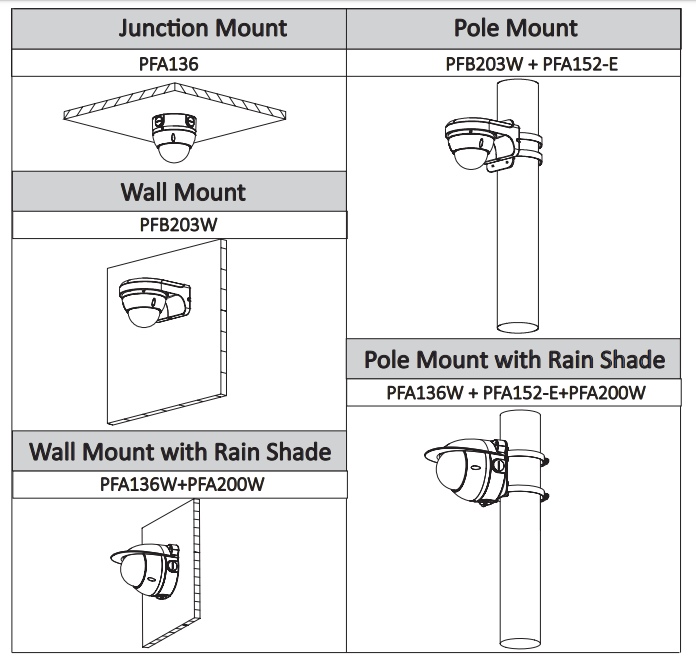

IPC-HDBW4831E-ASE - DAHUA DH-IPC-HDBW4831E-ASE 8MP IR Mini Dome Network Camera With Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ h Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ IPC-HDBW4831E-ASE  INSTALLATION


DAHUA DH-IPC-HDBW4631E-ASE

IPC-HDBW4831E-ASE - DAHUA DH-IPC-HDBW4831E-ASE 8MP IR Mini Dome Network Camera With Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ h Smart Detection supported IP67, IK10, ePoE technology Smart H.265+ IPC-HDBW4831E-ASE TECHNICAL SPECIFICATIONS

*****

Camera

Image Sensor

1/2.5” 8Megapixel progressive scan CMOS

Effective Pixels

3840(H)x2160(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.03Lux/F2.5( Color,1/3s,30IRE)

0.3Lux/F2.5( Color,1/30s,30IRE)

0Lux/F2.5(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m (98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

18

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (4mm optional

Max. Aperture

F2.5 (F2.2)

Angle of View

H:112° (88°), V:69° (48°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.9m(1.7m)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

69m(226ft)

28m(92ft)

14m(46ft)

7m(23ft)

4.0 mm

89m(292ft)

36m(118ft)

18m(59ft)

9m(30ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~355˚; Tilt:0˚~64˚; Rotation:0˚~355˚

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/

3M(2048x1536)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4K(1~15fps)/3M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<5.2W

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ109.9mm×81mm (4.33×3.19)

Net Weight

0.41kg (0.91lb)

Gross Weight

0.53 kg (1.17lb)

*******

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*********DAHUA IPC-HDBW4831E-ASE,DAHUA DH-IPC-HDBW4831E-ASE,IPC-HDBW4831E-ASE,DH-IPC-HDBW4831E-ASE,N84CL52,DH-IPC-HDBW4831EN-ASE,DH-IPC-HDBW4831EP-ASE,N84CL54,hd mini dome camera,Wholesales DAHUA Dome Network Camera,ip camera 8mp***

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Fixed
Day/Night D/N IR
Factor Dome
Max Resolution 8 MP
