IPC-HDBW3841R-ZAS- DAHUA DH-IPC-HDBW3841R-ZAS 8MP IR Vari-focal Dome WizSense Network Camera With Starlight SMD Plus Perimeter Protection IPC-HDBW3841R-ZAS

IPC-HDBW3841R-ZAS

8MP IR Vari-focal Dome WizSense Network Camera

> 8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 8MP (3840 × 2160) @20 fps (AI function enabled by default) and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled)

> H.265 codec, high compression rate, low bit rate

> Built-in IR LED, max. IR distance: 40 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio detection (Only - ZAS supports), no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection

> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports)

> Supports max. 256 G Micro SD card

> 12V DC/PoE power supply

> IP67, IK10 protection

> SMD Plus

IPC-HDBW3841R-ZAS- DAHUA DH-IPC-HDBW3841R-ZAS 8MP IR Vari-focal Dome WizSense Network Camera With Starlight SMD Plus Perimeter Protection IPC-HDBW3841R-ZAS System Overview

 WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

IPC-HDBW3841R-ZAS- DAHUA DH-IPC-HDBW3841R-ZAS 8MP IR Vari-focal Dome WizSense Network Camera With Starlight SMD Plus Perimeter Protection IPC-HDBW3841R-ZAS Functions

SMD Plus

With intelligent algorithm, Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Starlight

Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.

WDR

With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Protection (IP67, wide voltage) IP67:

The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IPC-HDBW3841R-ZAS- DAHUA DH-IPC-HDBW3841R-ZAS 8MP IR Vari-focal Dome WizSense Network Camera With Starlight SMD Plus Perimeter Protection IPC-HDBW3841R-ZAS Picture

IPC-HDBW3841R-ZAS- DAHUA DH-IPC-HDBW3841R-ZAS 8MP IR Vari-focal Dome WizSense Network Camera With Starlight SMD Plus Perimeter Protection IPC-HDBW3841R-ZAS  Dimensions

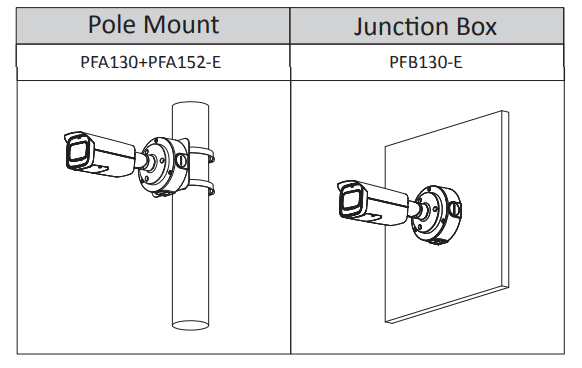

IPC-HDBW3841R-ZAS- DAHUA DH-IPC-HDBW3841R-ZAS 8MP IR Vari-focal Dome WizSense Network Camera With Starlight SMD Plus Perimeter Protection IPC-HDBW3841R-ZAS  Installation
