IPC-HDBW3449E-AS-NI - DAHUA DH-IPC-HDBW3449E-AS-NI 4MP Full-color Fixed-focal Dome WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDBW3449E-AS-NI

In stock
SKU
BWIPC-HDBW3449E-AS-NI
$148.00

IPC-HDBW3449E-AS-NI

4MP Full-color Fixed-focal Dome WizSense Network Camera

> 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 4MP (2688 × 1520) @ 30 fps

> H.256 coding, high compression rate, low bit rate

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card

> 12V DC/PoE power supply

> IP67, IK10 protection

> SMD Plus

>100% original products manufactured by DAHUA

The delivery time is 15-25 working days

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HDBW3449E-AS-NI - DAHUA DH-IPC-HDBW3449E-AS-NI 4MP Full-color Fixed-focal Dome WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDBW3449E-AS-NI

IPC-HDBW3449E-AS-NI

4MP Full-color Fixed-focal Dome WizSense Network Camera

> 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 4MP (2688 × 1520) @ 30 fps

> H.256 coding, high compression rate, low bit rate

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card

> 12V DC/PoE power supply

> IP67, IK10 protection

> SMD Plus

>,English firmware
>100% original products manufactured by DAHUA

IPC-HDBW3449E-AS-NI - DAHUA DH-IPC-HDBW3449E-AS-NI 4MP Full-color Fixed-focal Dome WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDBW3449E-AS-NI System Overview



 WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

DAHUA Smart Shop solution

With advanced deep learning algorithm, WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. In addition, with full-color technology, it provides a better image effect in the condition of low illuminance.

IPC-HDBW3449E-AS-NI - DAHUA DH-IPC-HDBW3449E-AS-NI 4MP Full-color Fixed-focal Dome WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDBW3449E-AS-NI Functions

Full-color

With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.

Full-color Starlight

SMD Plus

With intelligent algorithm, Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.SMDSMDSMD

SMDSMD

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Detect tripwire and intrusion violationsProcessing FlowWide dynamic range (WDR)

adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

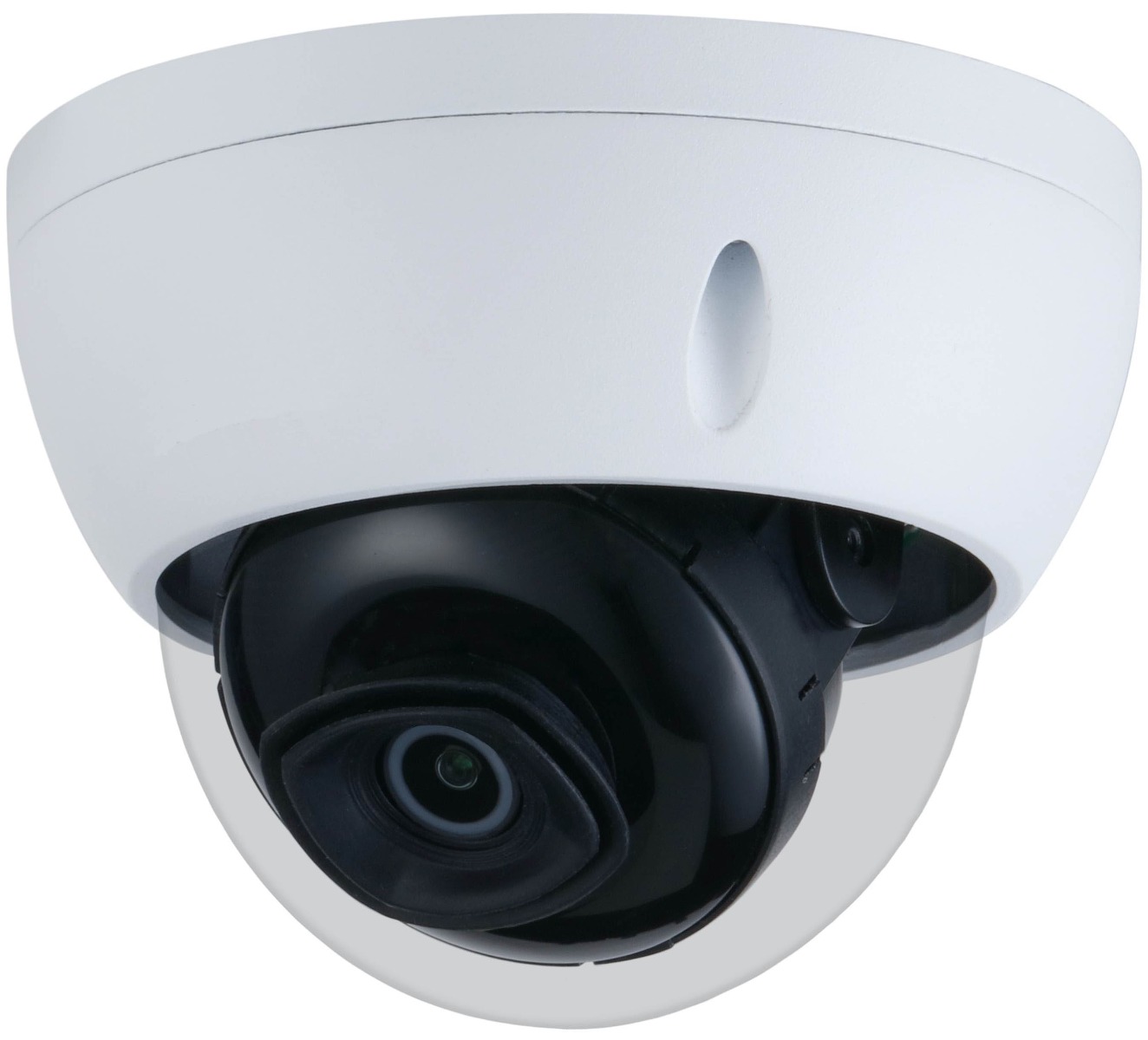

IPC-HDBW3449E-AS-NI - DAHUA DH-IPC-HDBW3449E-AS-NI 4MP Full-color Fixed-focal Dome WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDBW3449E-AS-NI Picture



IPC-HDW3249TM-AS-NI   DAHUA IPC-HDBW3449E-AS-NI,DAHUA DH-IPC-HDBW3449E-AS-NI,IPC-HDBW3449E-AS-NI,DAHUA DH-IPC-HDBW3449E-AS-NI,DAHUA DH-IPC-HDBW3449EP-AS-NI,DAHUA DH-IPC-HDBW3449EN-AS-NI,dome camera ip,video surveillance,security camera xiaomi,imi security camera,hd smart ip camera,sectec camera,Wholesales DAHUA Network Camera,Perimeter Protection

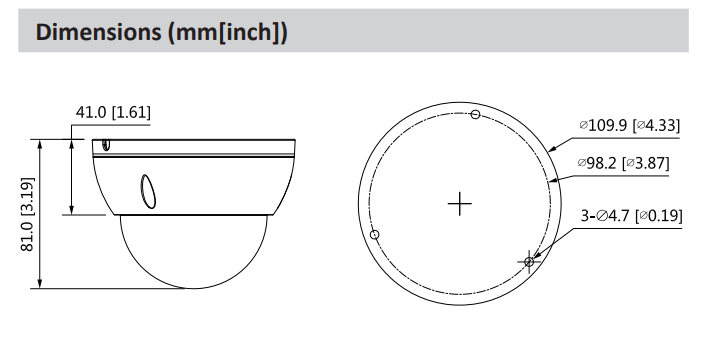

IPC-HDBW3449E-AS-NI - DAHUA DH-IPC-HDBW3449E-AS-NI 4MP Full-color Fixed-focal Dome WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDBW3449E-AS-NI  Dimensions

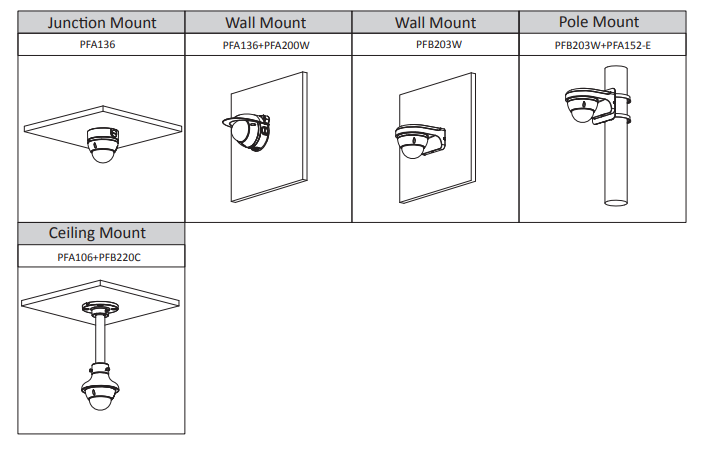

IPC-HDBW3449E-AS-NI - DAHUA DH-IPC-HDBW3449E-AS-NI 4MP Full-color Fixed-focal Dome WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDBW3449E-AS-NI  Installation


IPC-HDBW3449E-AS-NI - DAHUA DH-IPC-HDBW3449E-AS-NI 4MP Full-color Fixed-focal Dome WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDBW3449E-AS-NI Technical Specifications

**

*****

***

Camera

Image Sensor

1/2.7”4Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 Lux @ F1.0

S/N Ratio

> 56 dB

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: Horizontal 103° × vertical 53° × diagonal 122°

3.6 mm: Horizontal 80° × vertical 43° × diagonal 95°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)

3.6 mm: 2.4 m (7.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)

Professional, Intelligent

Perimeter Protection

Tripwire, intrusion (Recognition of vehicle and people)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream (2688 × 1520 @ 1–25/30 fps)
sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps)
third stream (1280 × 720 @ 1–25/30 fps)

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Color/B/W

BLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; G726; AAC

Alarm

Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

Scene self-adaptation

Yes

User/Host

20 (Total bandwidth: 64M.)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS

Browser

IE: IE8; IE9; IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE

Power Consumption

< 4.4W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than 95%

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal

Dimensions

81 mm × Φ109.9 mm (3.2" × Φ4.3")

Net Weight

378 g (0.8 lb)

Gross Weight

523 g (1.2 lb)

****

**

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

**** DAHUA IPC-HDBW3449E-AS-NI,DAHUA DH-IPC-HDBW3449E-AS-NI,IPC-HDBW3449E-AS-NI,DAHUA DH-IPC-HDBW3449E-AS-NI,DAHUA DH-IPC-HDBW3449EP-AS-NI,DAHUA DH-IPC-HDBW3449EN-AS-NI,dome camera ip,video surveillance,security camera xiaomi,imi security camera,hd smart ip camera,sectec camera,Wholesales DAHUA Network Camera,Perimeter Protection***

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Fixed
Day/Night Low light
Factor Dome
Max Resolution 4 MP
