IPC-HDBW2531R-VFAS – DAHUA DH-IPC-HDBW2531R-VFAS 5MP WDR IR Dome Network Camera with H.265 & H.264 dual-stream encoding IPC-HDBW2531R-VFAS

Out of stock

SKU

BWIPC-HDBW2531R-VFAS

$155.00

IPC-HDBW2531R-VFAS

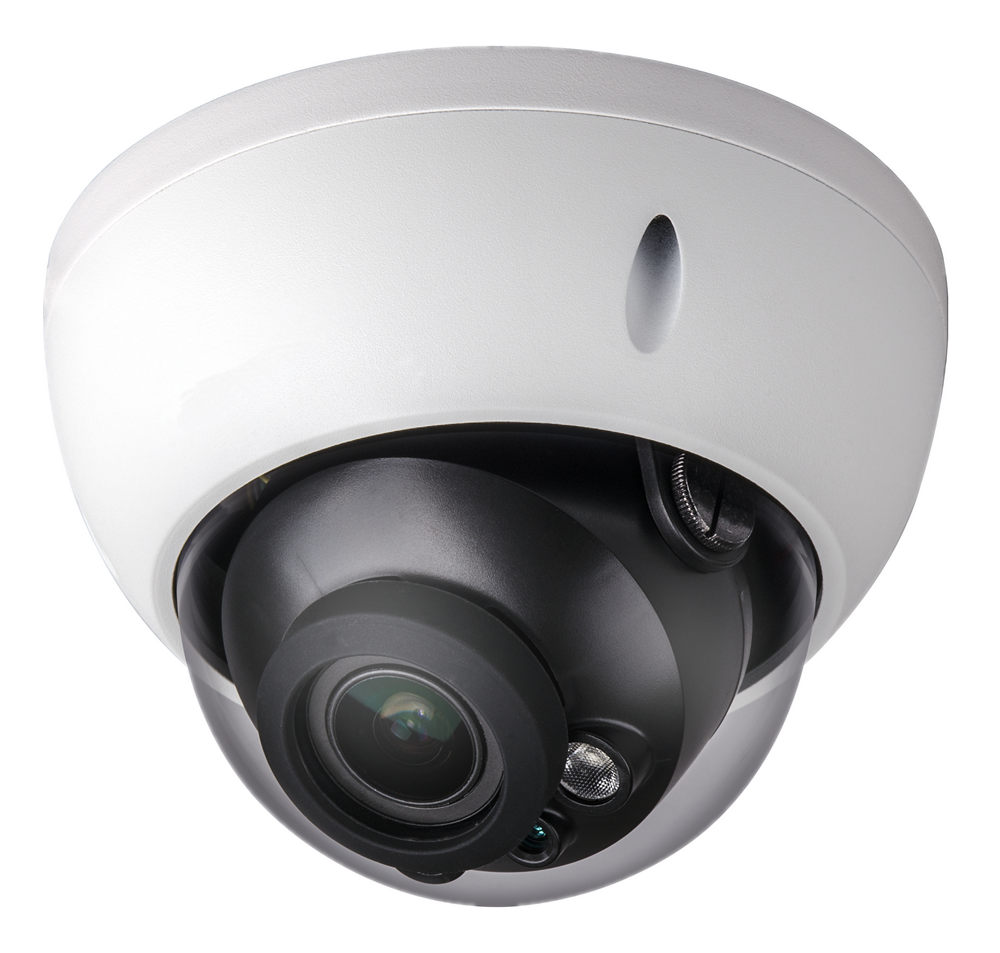

5MP WDR IR Dome Network Camera

> 1/2.7” 5Megapixel progressive CMOS
> H.265 & H.264 dual-stream encoding
> 15fps@5M(2592×1944)&25/30fps@3M(2304×1296)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Micro SD card slot, up to 128GB
> 2.7~13.5mm varifocal lens
> Max IR LEDs Length 30m
> IP67, IK10, PoE

> dahua Logo,English firmware

> 100% original products manufactured by DAHUA

The delivery time is 25 working days if no stock.

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HDBW2531R-VFAS – DAHUA DH-IPC-HDBW2531R-VFAS 5MP WDR IR Dome Network Camera with H.265 & H.264 dual-stream encoding IPC-HDBW2531R-VFAS

IPC-HDBW2531R-VFAS

5MP WDR IR Dome Network Camera

> ,English firmware
> 100% original products manufactured by DAHUA

IPC-HDBW2531R-VFAS – DAHUA DH-IPC-HDBW2531R-VFAS 5MP WDR IR Dome Network Camera with H.265 & H.264 dual-stream encoding IPC-HDBW2531R-VFAS Picture

IPC-HDBW2531R-VFAS – DAHUA DH-IPC-HDBW2531R-VFAS 5MP WDR IR Dome Network Camera with H.265 & H.264 dual-stream encoding IPC-HDBW2531R-VFAS Specification

Technical Specifications

*****

Bit Rate

H.265: 12K ~ 8448Kbps

H.264: 32K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;Qos;UPnP;NTP;Bonjour;IEEE802.1x;Multicast;ICMP;IGMP;TLS;RTCP

Interoperability

ONVIF Profile S&G,API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

NAS

Local PC for instant recording

Micro SD Card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V PoE (802.3af)(Class 0)

Power Consumption

<9.5W(-ZS), <7.5W(-VFS)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

φ122mm×88.9mm(4.80''x3.50'')

Net Weight

0.4Kg (0.88lb)

Gross Weight

0.54Kg(1.19lb)

Camera

Image Sensor

1/2.7” 5Megapixel progressive CMOS

Effective Pixels

2592(H) x1944(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.02Lux/F1.6( Color,1/3s,30IRE)

0.2Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

Lens

Lens Type

Manual(-VFS)

Mount Type

Board-in

Focal Length

2.7mm~13.5mm

Max. Aperture

F1.6

Angle of View

H:95°~27°, V:70°~20°

Focus Control

Motorized(-ZS),Manual(-VFS)

Close Focus Distance

0.3m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

64m(210ft)

26m(85ft)

13m(43ft)

6m(20ft)

222m(728ft)

89m(292ft)

44m(144ft)

22m(72ft)

PTZ

Pan/Tilt Range

Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°

Intelligence

Event Trigger

Motion detection, Video tampering,Scene changing,Network disconnection,IP address conflict,Illegal acess,Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265+/H.265/H.264+/H.264

Smart Codec

Support H.265+/h.265+

Streaming Capability

2 Streams

Resolution

5M(2592×1944)/4M(2688x1520)/(2560×1440)/(2304x1296)/1080P(1920x1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)

Frame Rate

5M (1 ~ 15fps)/3M(1 ~ 25/30fps)

D1/CIF(1 ~ 20/25fps)

Bit Rate Control

CBR/VBR

****
