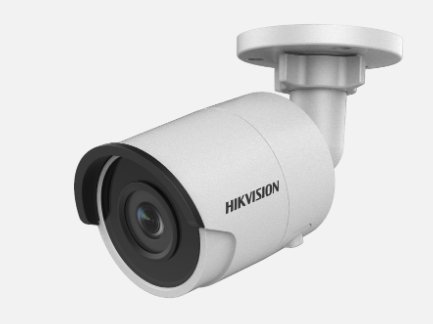

HIKVISION DS-2CD2025FWD-I 2 MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera with Excellent low-light performance via powered-by-DarkFighter technology Technical Specifications

********

Camera

Image Sensor1/2.8" Progressive Scan CMOS

Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR;Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed1/3 s to 1/100,000 s

Slow ShutterYes

Wide Dynamic Range120dB

Day & NightIR Cut Filter

Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

FocusFixed

Lens Type2.8/4/6/8/12 mm

FOV2.8 mm, horizontal field of view: 108°;4 mm, horizontal field of view: 86.4°;6 mm, horizontal field of view: 52°;8 mm, horizontal field of view: 41°;12 mm, horizontal field of view: 25°

ApertureF1.6

Lens MountM12

Illuminator

IR Range30 m

Video

Max. Resolution1920 × 1080

Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)

Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288);60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)

Video CompressionMain stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264

Video Bit Rate32 Kbps to 16 Mbps

H.264 TypeMain Profile/High Profile

H.265 TypeMain Profile

H.264+Main stream supports

H.265+Main stream supports

Region Of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately

Network

Simultaneous Live ViewUp to 6 channels

APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/HostUp to 32 users,3 levels: Administrator, Operator and User

SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

ClientiVMS-4200, Hik-Connect, Hik-Central

Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+

Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login


Day/Night SwitchDay/Night/Auto/Schedule

DNR3D DNR

Image EnhancementBLC/3D DNR/HLC

Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128G

Hardware ResetYes

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection，face detection, scene change detection

Face DetectionYes

Exception DetectionScene change detection

General

Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

Firmware VersionV5.5.80

Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Consumption And Current12 VDC ± 25%, 5 W; PoE(802.3af, 36 V to 57V, class 3), 6.5 W

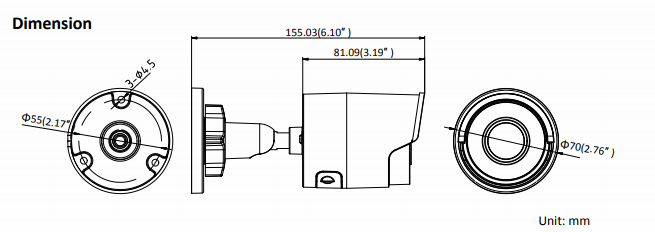

Camera DimensionCamera: Φ70 × 155.03 mm (Φ2.76″ × 6.1″);Package: 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″)

Camera WeightCamera: 410 g (0.9 lb.)

*****

*

**

****
