[2021 new] 8 Channel Wireless OfficeSecurity System 1080P NVR, 8PCS metal Bullet camera 1080P CCTV WI-FI IP Cameras for Homes Small business Night Vision, Motion Alert free shipping
8 channel Wireless Security Camera System
Appearance Patented Products, Never light-leaking
Automatic Wireless Connection, plug and play
1080P H.265+ wireless network recorder and 4 1080P wireless cameras
In open space without interfere transmission distance up to 200 meters
Insert professional surveillance Wireless board, with stronger anti-interfere ability
One-push to configure
Support alarm push motion detection and alarm output(voice/email/ FTP etc.)
Support Android/Apple cell phone or pad by LAN & WAN visit and control
P2P IP PRO, fluent and fast remote access
Suit to homes, offices, small businesses & retail stores
Easy installation can be equipped with quick chassis and wire box
8 Channel Camera System Wireless,8 Channel Wireless Security Camera System,8ch wifi cctv system
[2021 new] 8 Channel Wireless OfficeSecurity System 1080P NVR, 8PCS metal Bullet camera 1080P CCTV WI-FI IP Cameras for Homes Small business Night Vision, Motion Alert free shipping
Key Features
Appearance Patented Products, Never light-leaking
Automatic Wireless Connection, plug and play
1080P H.265+ wireless network recorder and 4 1080P wireless cameras
In open space without itrefere transmission distance up to 200 meters
Insert professional surveillance Wireless board, with stonger anti-interfere ability
One-push to configure
Support alarm push motion detection and alarm output(voice/email/ FTP etc.)
Support Android/Apple cell phone or pad by LAN & WAN visit and control
P2P IP PRO, fluent and fast remote access
Suit to homes, offices, small businesses & retail stores
Easy installation can be equipped with quick chassis and wire box
8 Channel Camera System Wireless,8 Channel Wireless Security Camera System,8ch wifi cctv system

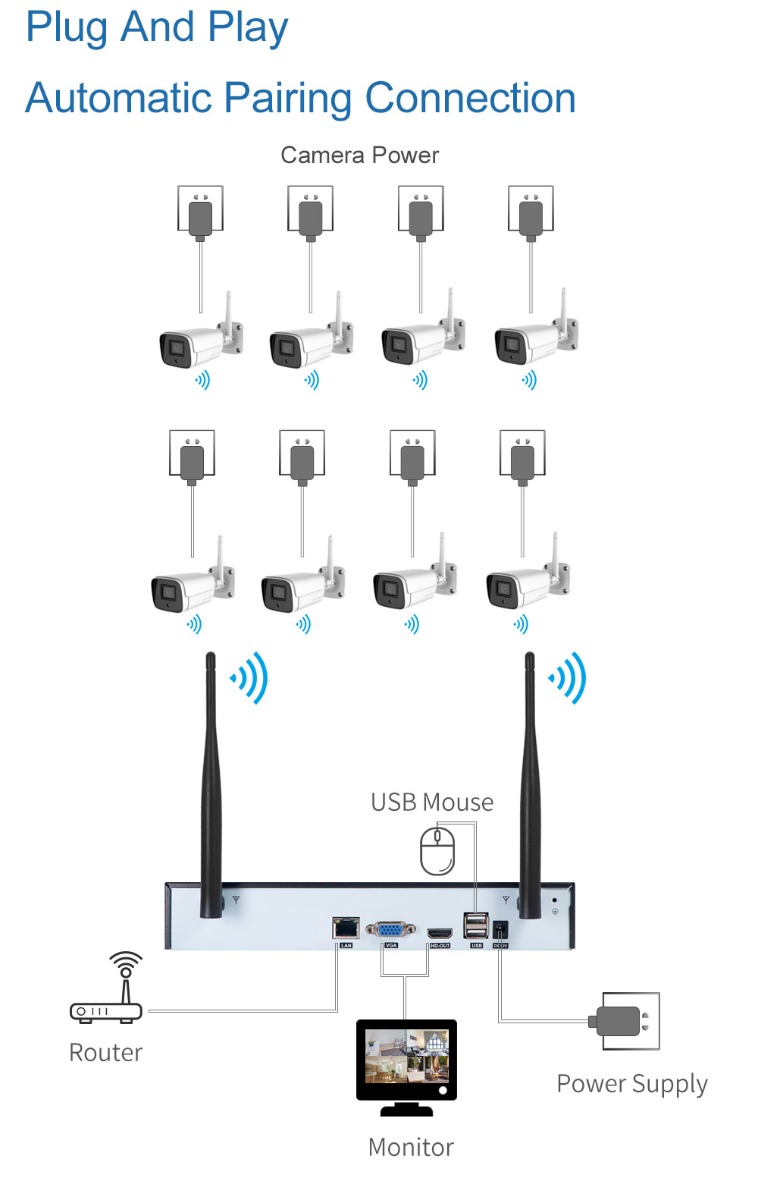

[2021 new] 8 Channel Wireless OfficeSecurity System 1080P NVR, 8PCS metal Bullet camera 1080P CCTV WI-FI IP Cameras for Homes Small business Night Vision, Motion Alert free shipping SYSTEM OVERVIEW
[2021 new] 8 Channel Wireless OfficeSecurity System 1080P NVR, 8PCS metal Bullet camera 1080P CCTV WI-FI IP Cameras for Homes Small business Night Vision, Motion Alert free shipping DIMENSIONS

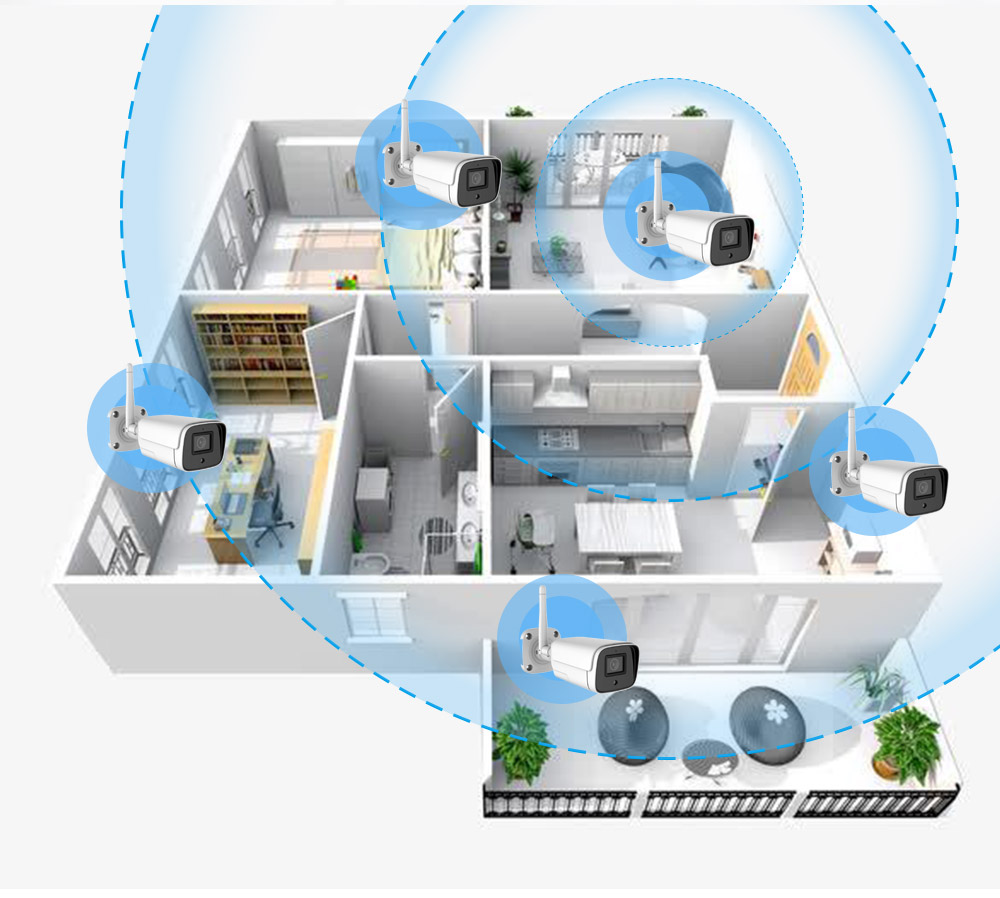

[2021 new] 8 Channel Wireless OfficeSecurity System 1080P NVR, 8PCS metal Bullet camera 1080P CCTV WI-FI IP Cameras for Homes Small business Night Vision, Motion Alert free shipping INSTALLATION
[2021 new] 8 Channel Wireless OfficeSecurity System 1080P NVR, 8PCS metal Bullet camera 1080P CCTV WI-FI IP Cameras for Homes Small business Night Vision, Motion Alert free shipping Specification
IP Camera Specification:
*****
Model |
|
2.0Mp Wireless IP Camera |
|
Image sensor |
1/2.9" 2.0M Pixel CMOS |
Lens |
2.8mm, horizontal field of view:100° |
IR LED |
2pcs 38mil Leds, IR distance 30M |
Min. Illumination |
Color:0.01Lux@(F1.2,AGC ON) B/W:0.001Lux@(F1.2,AGC ON),0Lux @(IRled ON) |
S / N ratio |
≥39dB |
Shutter speed |
1/5 - 1/20,000s, |
Day & Night |
Day / Night / External control(IR Cut Filter) |
AGC |
Auto / Manual |
White balance |
Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
Wide dynamic range |
Digtal Wide dynamic range |
Digital noise Reduction |
2DNR,3DNR |
Video Compression |
H.265 Main Profile/H.264 Main Profile/M-JPEG |
Audio Compression |
G711,PCM |
Max.Image Resolution |
1920x1080@20fps |
Image Resolution |
Main stream (1920x1080、1280×960、1280×720、720×576、640×480) |
sub-stream (640×480、352×288、320×240、176×144) |
|
Bitrate |
CBR/VBR, bitrate:32Kbps~10Mbps variable |
Motion detect |
Support |
Privacy Zone Masking |
4 privacy masks programmable |
P2P |
Android、IOS |
Protocols |
TCP/IP,HTTP, NTP,IGMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P |
Onvif |
Non- Support |
Wireless |
Frequency:2.4G |
Transmission distance :More than 200 meters with no obstacle, More than 30 meters if penetrate the wall, The actual transmission distance according to the situation |
|
Power |
12VDC@0.12A |
Dimensions |
104x60mm |
Working Temperature |
-30°C ~60°C, Humidity≤90%RH(Unsupport-condensing) |
NVR Specification:
Model |
|
|
4CH Wireless 1080P HD-NVR |
||
System |
Main processor |
Hi3536D |
Operating System |
Embedded Linux |
|
Video |
Video compression |
H.265 High Profile/ H.264 Main Profile |
Video output |
720P60,XGA,1080P60 |
|
Video input(IP) |
4*1080P/4*960P/4*720P |
|
Audio |
Audio compression |
G.711 |
intercom |
None |
|
Record & playback |
Recording mode |
Manual/Alarm/Video Detection/Continuous |
Local Playback |
1*1080P |
|
Storage & Backup |
Record Storage |
network |
Backup mode |
Network backup, USB hard disk |
|
Network Control |
Protocol |
TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P |
Wireless |
Frequency |
2.4G |
Antenna Structure |
2 × 2MIMO |
|
Distance |
More than 200 meters with no obstacle,more than 30 meters if penetrate the wall, the actual transmission distance according to the situation |
|
Interface |
Video output |
1ch HDMI, 1ch VGA output |
Audio I/O |
None |
|
Alarm I/O |
None |
|
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port |
|
USB |
2*USB 2.0 port |
|
Hard disk |
1 SATA(Up to 4TB) |
|
Other |
Power supply |
DC +12V /3A |
Power Consumption |
5W(Without HDD) |
|
Work environment |
Temperature:-10℃-+55℃, Humidity:10%-90%RH |
******8 Channel Camera System Wireless,8 Channel Wireless Security Camera System,8ch wifi cctv system****
**
**
*******8 Channel Camera System Wireless,8 Channel Wireless Security Camera System,8ch wifi cctv system**************
channels | 8 channels |
---|---|
including hard disk | NO |
Brand | Description |
History | Color sit amet, consectetur adipiscing elit. In gravida pellentesque ligula, vel eleifend turpis blandit vel. Nam quis lorem ut mi mattis ullamcorper ac quis dui. Vestibulum et scelerisque ante, eu sodales mi. Nunc tincidunt tempus varius. Integer ante dolor, suscipit non faucibus a, scelerisque vitae sapien. |
-
