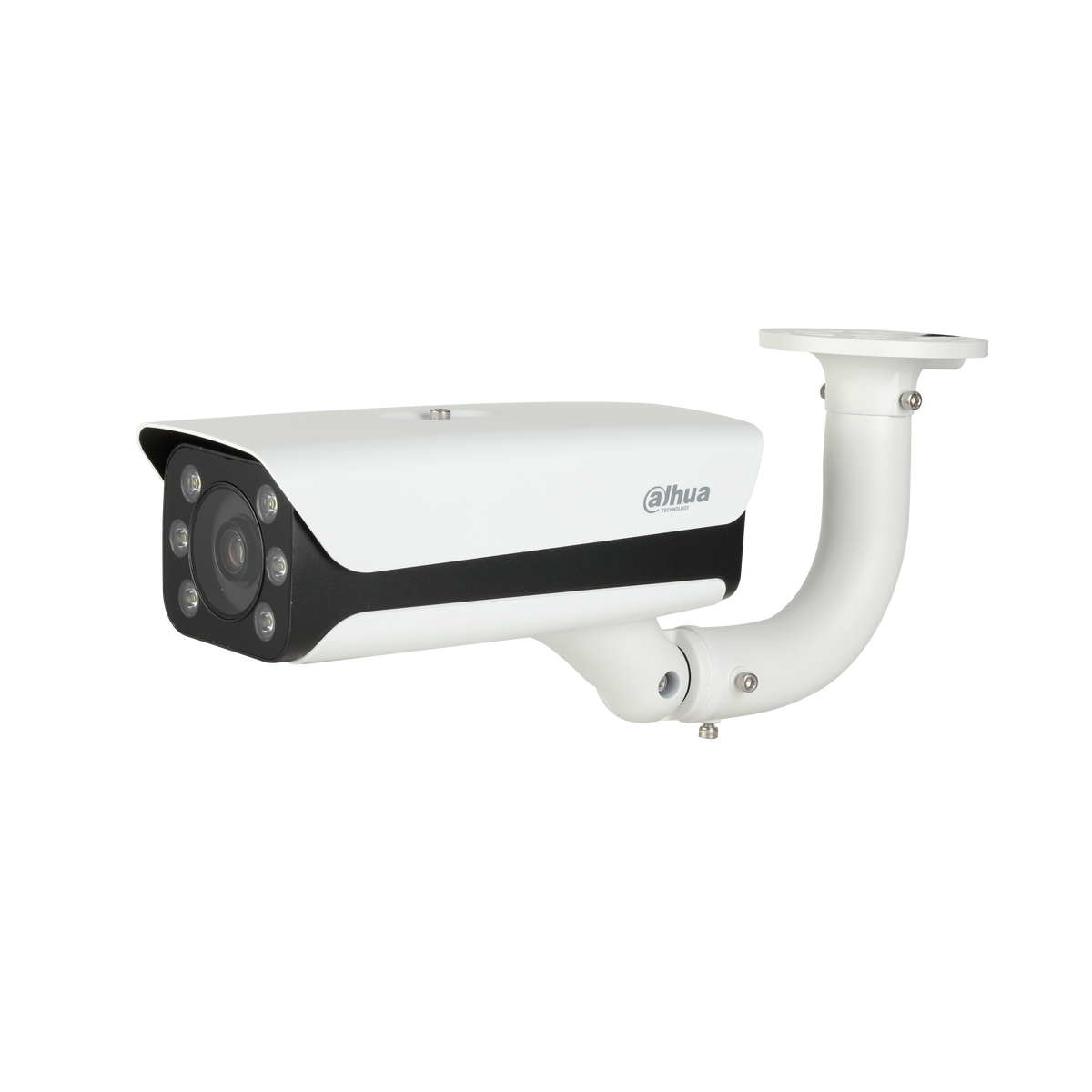

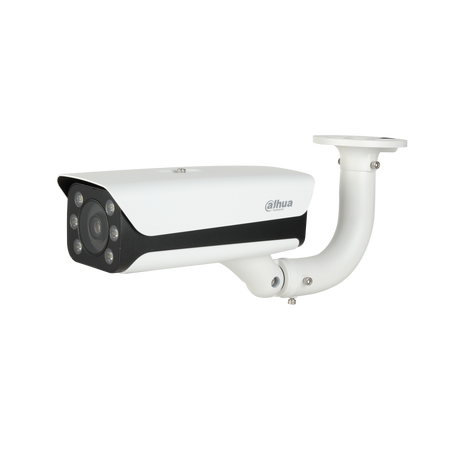

Dahua IPC-HFW8242E-Z20FR-IRA-LED 2MP Starlight 20x Zoom Bullet Network Camera
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
IPC-HFW8242E-Z20FR-IRA-LED
Product Data
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/1.8” 2Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
1920(H)x1080(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM/ROM |
2048MB/4096MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.005Lux/F1.4( Color,1/3s,30IRE) 0.03Lux/F1.4( Color,1/30s,30IRE) 0Lux/F1.4(LED on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LED Distance |
Distance up to 30m(98ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LED On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LEDs |
6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Motorized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
6.7~134mm motorized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 60°~4.1° V:36°~2.2° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Zoom |
20x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
Motorized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
3m(9.84ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Recognize |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
W |
71m(233ft) |
28m(92ft) |
14m(46ft) |
7m(23ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
T |
1258m(4127ft) |
503m(1650ft) |
251m(823ft) |
125m(410ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Artificial Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Capture |
Support face image capture |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Attributes |
Support 6 kinds of face attributes extraction: Age, Gender, Expression(Jolly, Calm, Surprise, Sad, Rage), Glasses, Mouth Mask, Moustache & Beard |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition |
Support face images matching, support up to 10000 face images and 5 image libraries management; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Event Trigger |
Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Intelligence |
Tripwire, Intrusion, Object Abandoned/Missing, People Counting, Heat Map |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
H.265/H.264/H.264B/H.264H/MJPEG(sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Codec |
Support H.265+/H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Capability |
3 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Long-range perimeter and entrance monitoring where a motorized 20x zoom bullet camera with face capture is needed.
The motorized 6.7~134mm lens gives operators flexible optical zoom for identifying activity across wide outdoor areas.
A 1/1.8-inch 2MP sensor with F1.4 aperture supports clearer color images in dim conditions, backed by IR LEDs rated to 30m.
Built-in face capture, face attribute extraction and tripwire or intrusion detection help teams organize alerts and review events faster.
