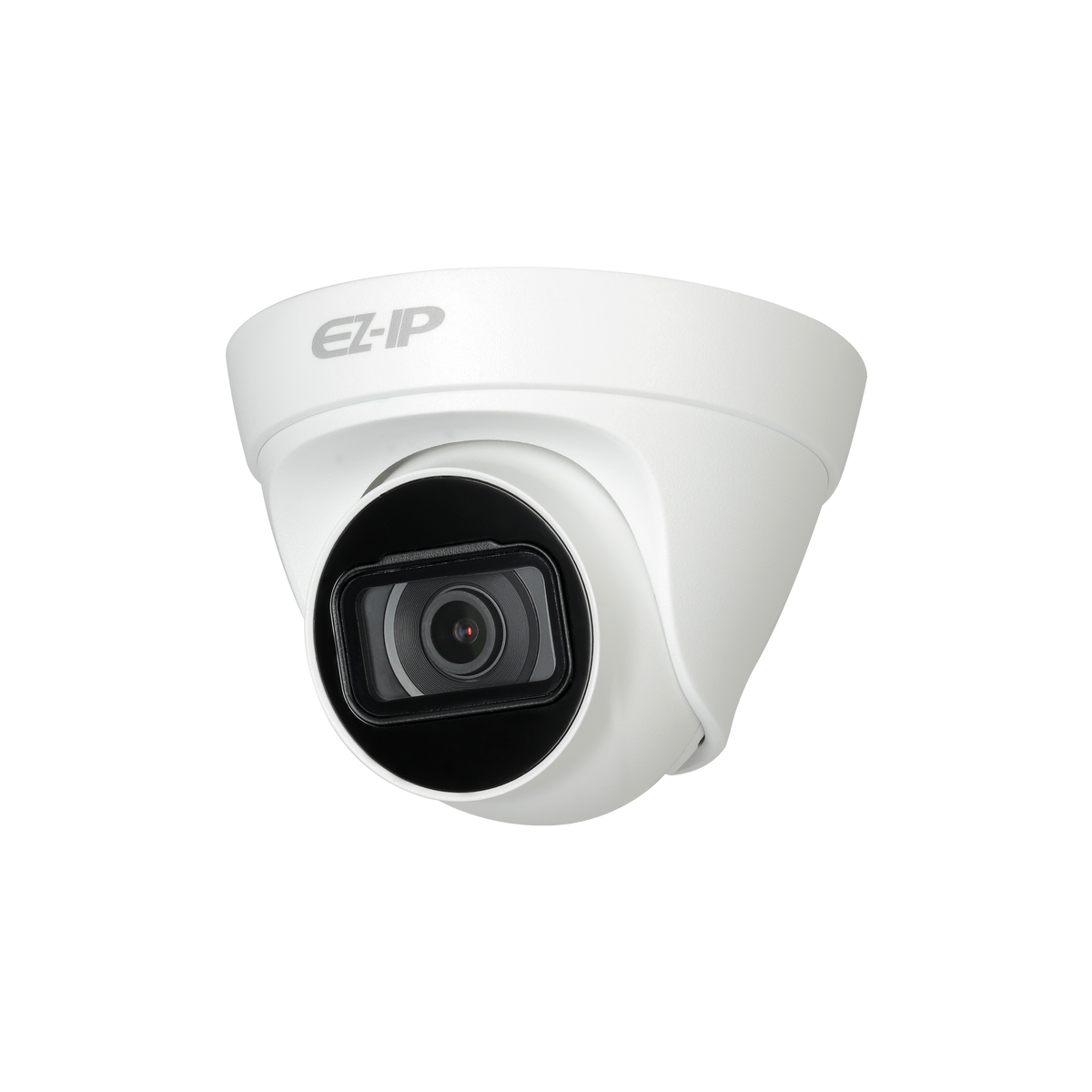

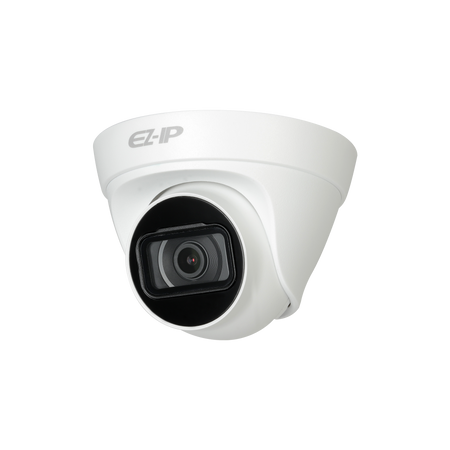

Dahua IPC-T1B40 4MP IR Turret Network Camera
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
IPC-T1B40
Product Data
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/3” 4Megapixel progresive CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
2560(H)x1440(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM/ROM |
256MB/16MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.09Lux/F2.0(Color,1/3s,30IRE) 0.5Lux/F2.0(Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
Distance up to 30m(98ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
Auto/ Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR LEDs |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm (3.6 mm optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F2.0/F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H:101°/80°, V:54°/44° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
0.8m(2.63ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2.8 mm |
56m(184ft) |
22.4m(73.5ft) |
11.2m(36.7ft) |
5.6m(18.4ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6 mm |
80m(262.5ft) |
32m(105ft) |
16m(52.5ft) |
8m(26.3ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PTZ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt Range |
Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Event Trigger |
Motion detection, Video tampering , Network disconnection , Scene change, IP address conflict, Illegal Access,Storage anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
H.265/H.264/H.264B/MJPEG(Sub Stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Codec |
Support H.265+/H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Capability |
2 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
4M(2560x1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frame Rate |
Main Stream: 4M(1 ~ 20fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sub Stream: D1(1 ~ 25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate |
H.264: 32K~6144K H.265: 12K~ 6144K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR) / Color / B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC Mode |
BLC / HLC / DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Indoor and sheltered outdoor surveillance of entrances, hallways and small retail areas needing a 4MP turret camera with up to 30 m IR range.
A 1/3-inch 4MP progressive CMOS sensor delivers 2560x1440 images so faces and objects stay easier to identify.
Built-in IR illumination reaches up to 30 m, keeping the scene visible in low light and total darkness.
H.265 and smart codec support reduce bandwidth and storage load while dual streams serve live view and recording.
