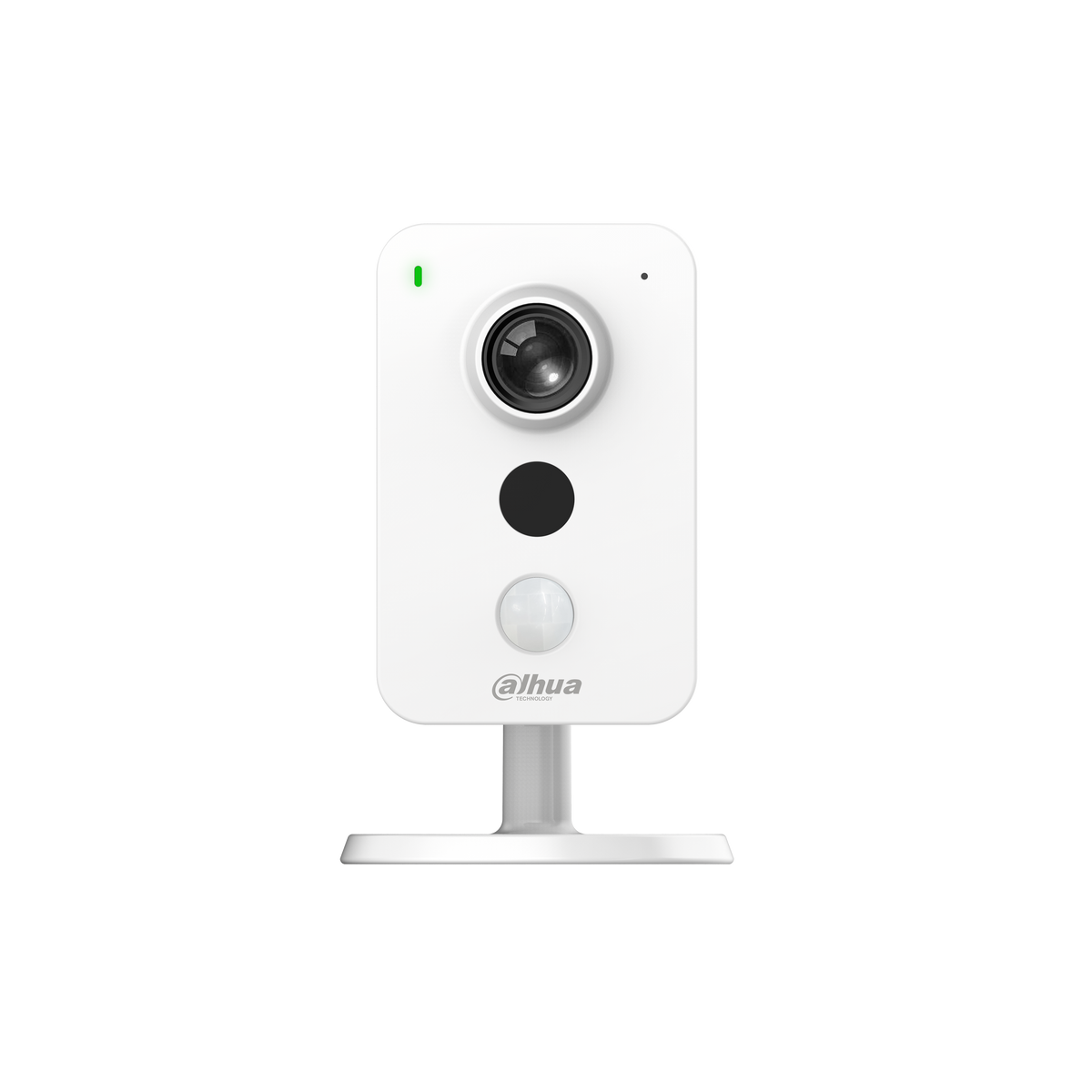

DAHUA IPC-K42A 4MP IR Network Camera
DAHUA IPC-K42A 4MP IR Network Camera
icctvzone

Dahua IPC-K42A 4MP IR Network Camera (EOL)

In stock
SKU: IPC-K42A
$45.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

IPC-K42A

> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
> Outputs max. 4MP (2560 × 1440) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Max. IR distance: 10 m
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
> H.264/H.265, flexible coding, applicable to various bandwidth and
> Alarm: 1 in, 1 out; 256 G SD card, built-in Mic and speaker
> Supports 256 G Micro SD card
> 12V DC/PoE power supply, easy for installation
> Supports PIR



Product Data



Image Sensor

1/3”4Megapixel progressive CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s



Manual 1/30 s
0. 170 Lux @F2.0 (Color, 80 IRE); 0.165 Lux @F2.0 (W/B, 80 IRE); 0 Lux (IR on)
Manual 1/3 s
0.0141 Lux @F2.0 (Color, 80 IRE); 0.0116 Lux @F2.0 (W/B, 80 IRE); 0 Lux (IR on)



>46.6 dB



10 m (32.8 ft) (IR LED)



Auto







Pan: 0°–360°
Tilt: 0°–90°





Fixed-focal



M12



2.8 mm



F2.0



Horizontal: 97°
Vertical: 52°
Diagonal: 116°



Fixed



0.8 m (2.6 ft)

DORI Distance

Detect

Observe

Recognize

Identify

56.0 m

(183.7ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)





H.265; H.264; H.264H; H.264B; MJPEG



H.264: Yes
H.265: Yes



50 Hz
Main stream (2560 × 1440 @25 fps), sub stream (640 × 480 @25 fps)
Main stream (2304 × 1296 @25 fps), sub stream (640 × 360 @25 fps)
Main stream (1920 × 1080 @25 fps), sub stream (320 × 240 @25 fps)
60 Hz
Main stream (2560 × 1440 @30 fps), sub stream (640 × 480 @30 fps)
Main stream (2304 × 1296 @30 fps), sub stream (640 × 360 @30 fps)
Main stream (1920 × 1080 @30 fps), sub stream (320 × 240 @30 fps)



2 streams



4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); VGA (640 × 480); 640 × 360; QVGA (320 × 240)



CBR/VBR



H.264: 184 kbps–6144 kbps
H.265: 73 kbps–6144 kbps



Auto (ICR)/Color/B/W



Yes



Yes



DWDR



Auto/natural/street lamp/outdoor/manual/regional custom



Auto/Manual



3D DNR



OFF/ON (4 areas, rectangular)



Yes (4 areas)



Yes



0°/90°/180°/270°



Yes



4 areas





Yes



AAC; G.711a; G.711Mu





No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering





RJ-45 (10/100 Base-T)



Yes



HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QoS; NTP



ONVIF (Profile T/Profile S/Profile G); CGI; DMSS



20 (Total bandwidth: 100 M)



NAS; FTP; SFTP; Micro SD card (256 G)



IE: IE7 and later
Chrome: Chrome 45 and later
Firefox: FireFox 46 and later
Safari: Mac os Safari12



DMSS



IOS; Android



IOS; Android





CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B





1 channel in: 5mA 3V~5V DC



1 channel out: 300mA 12V DC





12V DC/PoE



Max 3.3W (12V DC)





–10°C to +45°C (14°F to +113°F)/Less than 95%RH



–40°C to +60°C (–40°F to +140°F)





Plastic



Φ78.5 mm × 90.5 mm × 127.8 mm (3.1" × 3.6" × 5.0") (L × W × H)



170 g (0.4 lb)



270 g (0.6 lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Indoor surveillance where a compact 4MP camera with built-in mic, speaker, PIR and 10 m IR is needed.

Before you orderConfirm that this end-of-life IPC-K42A is still in stock and verify PoE or 12V DC power availability for your site.
01
Clear 4MP Imaging

The 1/3-inch CMOS sensor delivers up to 2560 x 1440 resolution for detailed indoor monitoring.

02
Efficient H.265 Coding

H.265 and H.264 options help reduce bandwidth and storage while keeping image quality usable.

03
Flexible Power Options

Support for 12V DC or PoE simplifies installation where either power method is already available.
