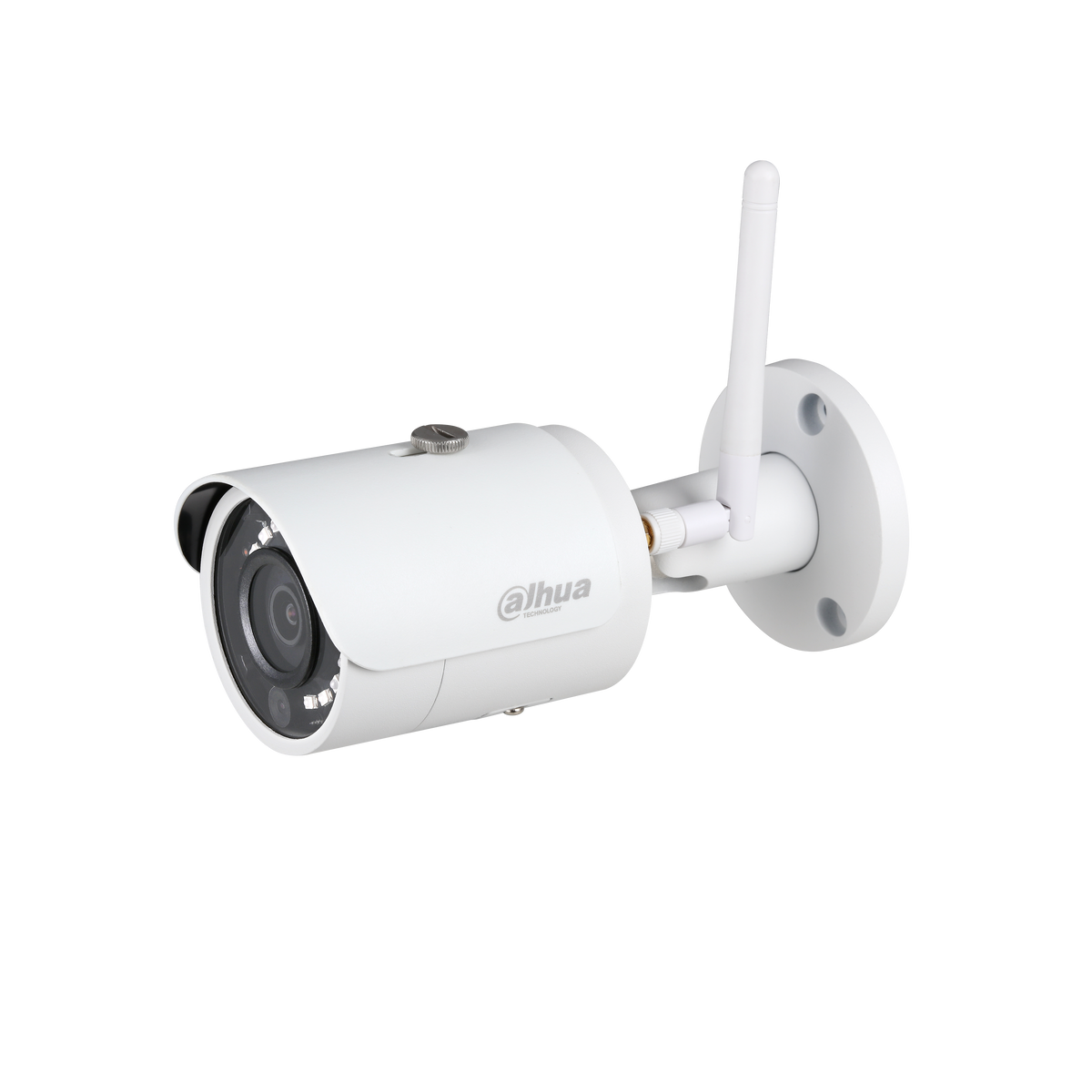

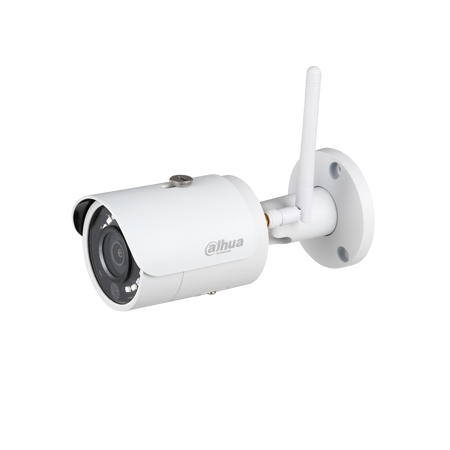

DAHUA IPC-HFW1435S-W-S2 4MP IR Bullet WI-FI Camera
DAHUA IPC-HFW1435S-W-S2 4MP IR Bullet WI-FI Camera
icctvzone

Dahua IPC-HFW1435S-W-S2 4MP IR Wi-Fi Bullet Network Camera

In stock
SKU: IPC-HFW1435S-W-S2
$72.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

IPC-HFW1435S-W-S2

> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition

> Outputs max. 4MP (2560 × 1440) @20 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Max. IR distance: 30 m

> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Supports 256 G Micro SD card

> 12V DC power supply, easy for installation

> IP67 protection

> Supports Wi-Fi



Product Data



Image Sensor

1/3”4Megapixel progressive CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s



Manual 1/30 s
0.9343 Lux @F2.0 (Color, 80 IRE); 0.9258 Lux @F2.0 (W/B, 80 IRE); 0 Lux (IR on)
Manual 1/3 s
0.1195 Lux @F2.0 (Color, 80 IRE); 0.1190 Lux @F2.0 (W/B, 80 IRE); 0 Lux (IR on)



>52 dB



30 m (98.4 ft)



Auto







Pan: 0°–360°
Tilt: 0°–90°





Fixed-focal



M12



2.8 mm
3.6 mm



F2.0



2.8 mm:
Horizontal: 97°
Vertical: 52°
Diagonal: 116°
3.6 mm:
Horizontal: 76°
Vertical: 42°
Diagonal: 90°



Fixed



2.8 mm: 0.8 m (2.6 ft)
3.6 mm: 1.4 m (4.6 ft)

DORI Distance



Detect

Observe

Recognize

Identify



56 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)



80 m

(262.5 ft)

30m

(105.0 ft)

16m

(52.5 ft)

8m

(26.2 ft)





H.265; H.264; H.264H; H.264B; MJPEG



H.264: Yes
H.265: Yes



50 Hz
Main stream (2560 × 1440 @20 fps), sub stream (640 × 480 @20 fps)
Main stream (2304 × 1296 @25 fps), sub stream (640 × 480 @25 fps)
60 Hz
Main stream (2560 × 1440 @20 fps), sub stream (640 × 480 @20 fps)
Main stream (2304 × 1296 @30 fps), sub stream (640 × 480 @30 fps)



2 streams



4M (2560 × 1440); 2M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); VGA (640 × 480); QVGA (320 × 240)



CBR/VBR



H.264: 24 kbps–8192 kbps
H.265: 9 kbps–7424 kbps



Auto (ICR)/Color/B/W



Yes



Yes



DWDR



Auto/natural/street lamp/outdoor/manual/regional custom



Auto/Manual



3D DNR



OFF/ON (4 areas, rectangular)



Yes (4 areas)



Yes



0°/90°/180°/270° (Support 90°/270° with all resolution)



Yes



4 areas





No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering





RJ-45 (10/100 Base-T)



Yes



Yes



HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QoS; NTP



ONVIF (Profile T/Profile S/Profile G); CGI; DMSS



20 (Total bandwidth: 40 M)



FTP; SFTP; Micro SD card (256 G); NAS



IE: IE9, IE11 and later
Chrome: 39.0.2171.95, and later version without plug-in (62.0.3202.94)
Firefox: 43.0.1 and later version without plug-in (69.0.3)



DMSS



IOS; Android





CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 15, Subpart B
FCC ID: FCC PART 15C





12V DC



Max 5.39W (12V DC) (IR full intensity)





–30°C to +50°C (–22°F to +122°F)/Less than 95%RH



–40°C to +60°C (–40°F to +140°F)



IP67





Metal



164.9 mm × 70 mm × 125.2 mm (6.5" × 2.8" × 4.9") (L × W × H)



431 g (1.0 lb)



708 g (1.6 lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Buyers who need a Wi-Fi bullet camera for a small outdoor site and are sourcing this end-of-life Dahua model specifically.

Before you orderConfirm this end-of-life model's stock status and check Wi-Fi coverage, 12V DC power, and micro SD capacity up to 256 GB before ordering.
01
4MP Clear Imaging

A 1/3-inch CMOS sensor outputs up to 2560 x 1440 at 20 fps for detailed day-to-day monitoring.

02
Efficient H.265 Coding

H.265 compression helps reduce bit rate and storage load, with ROI and smart coding options for varied bandwidth.

03
Outdoor-Ready Wi-Fi

IP67 protection and up to 30 m IR range support flexible wireless placement in exposed locations.
