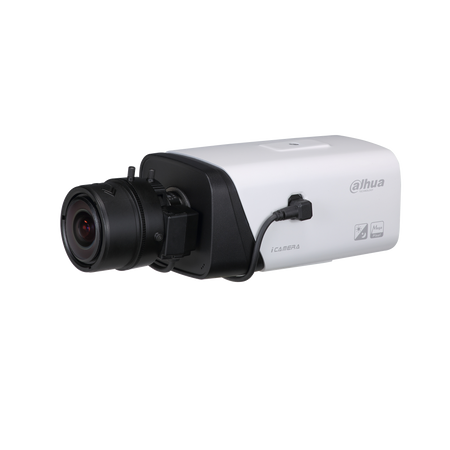

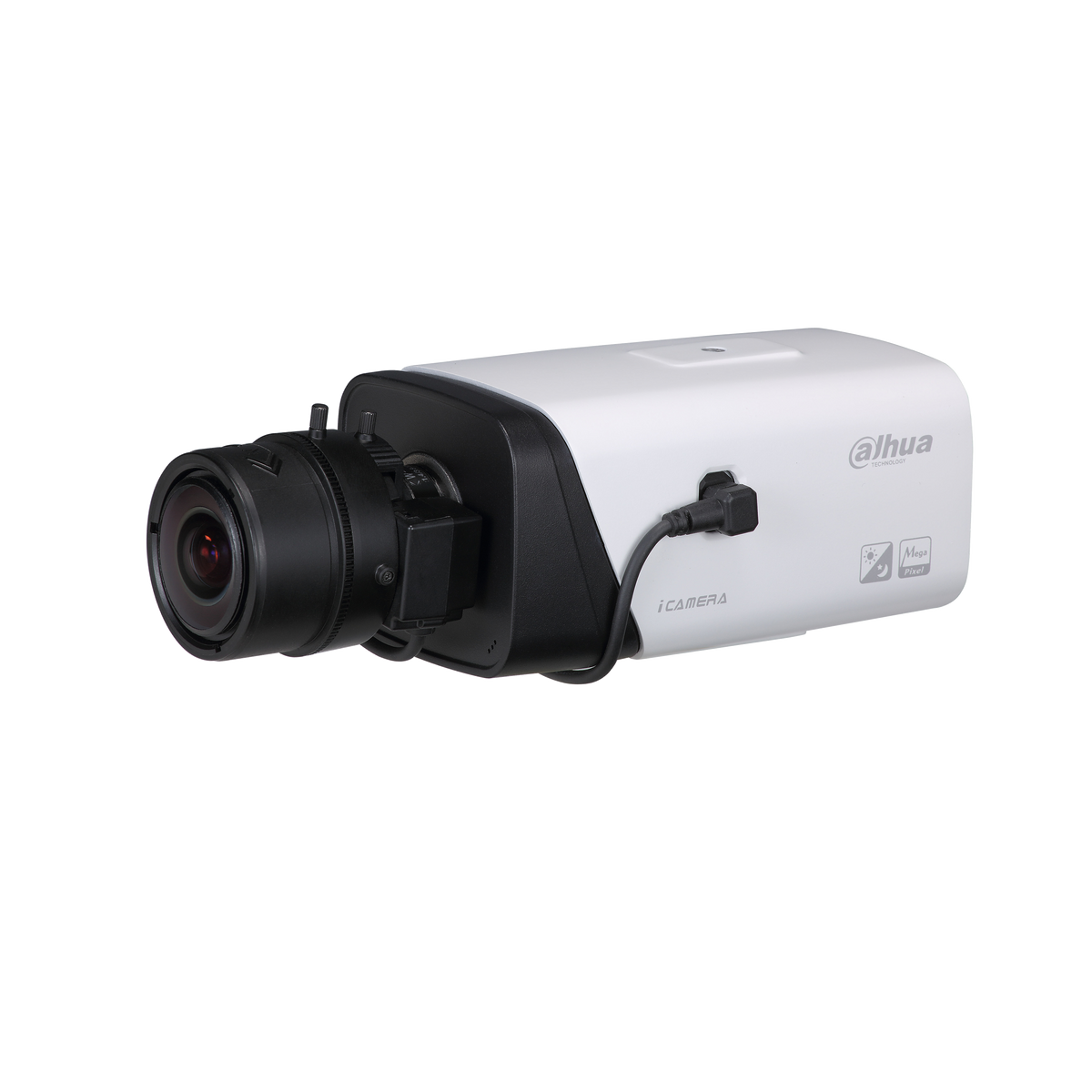

Dahua IPC-HF5431E-E 4MP WDR Box Network Camera (EOL)
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
IPC-HF5431E-E
> H.264&H.265 Triple-stream encoding
> 25/30fps@4M(2688×1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2/1 Alarm in/out, 1/1 audio in/out(Built-in Mic)
> Auto back focus(ABF)
> Micro SD memory, PoE
Product Data
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/3” 4Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
2688(H)x1520(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM/ROM |
512MB/32MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.02Lux/F1.2(Color,1/3s,30IRE) 0.2Lux/F1.2(Color,1/30s,30IRE) 0.01Lux/F1.2(B/W,1/3s,30IRE) 0.1Lux/F1.2(B/W,1/30s,30IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR LEDs |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
C/CS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Zoom |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Advanced Intelligent Functions |
Face Detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
H.265+/H.265/H.264+/H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Capability |
3 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
4M(2688×1520)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frame Rate |
Main Stream: 4M(1~25/30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sub Stream: D1(1~25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third Stream: 720P(1~25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate |
H.264: 24~10240Kbps H.265: 14~9984Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR) / Color / B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC Mode |
BLC / HLC / WDR(120dB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Fixed indoor or sheltered surveillance points that need a C/CS-mount box camera with 4MP WDR imaging and alarm/audio I/O.
Captures 2688x1520 video at up to 25/30fps for detailed coverage of monitored areas.
Wide dynamic range helps hold detail in scenes with strong light and shadow contrast.
Alarm and audio in/out plus micro SD and PoE support simplify integration and local recording.
