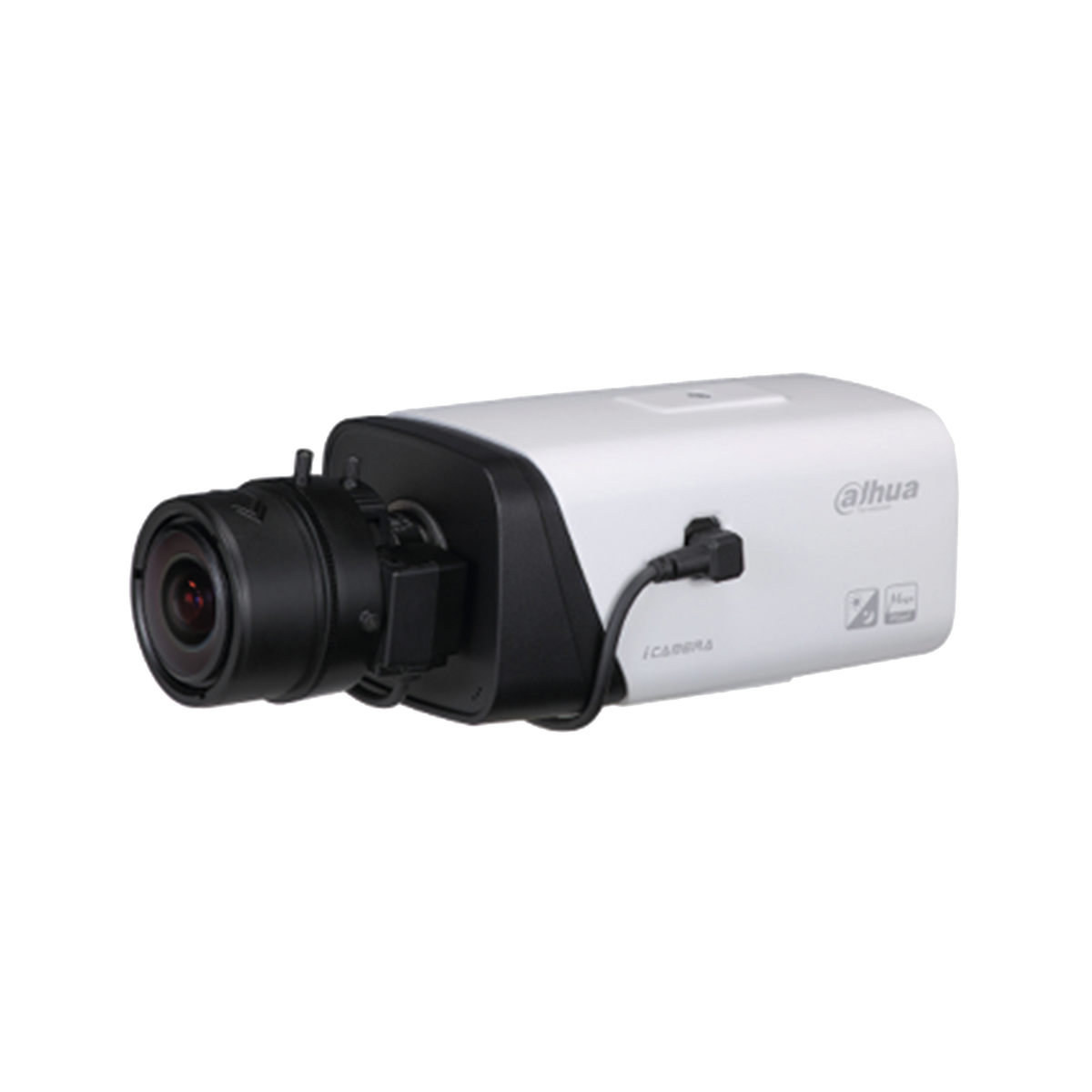

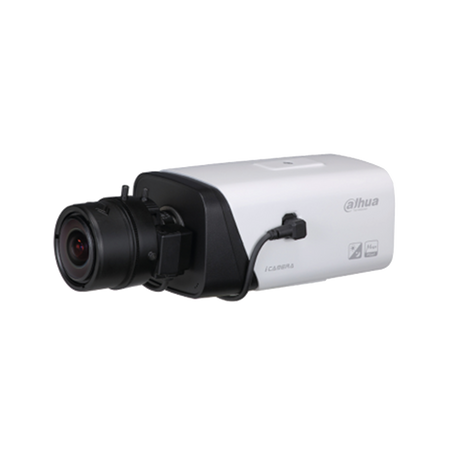

Dahua IPC-HF5242E-E-MF 2MP WizMind Box Network Camera
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
IPC-HF5242E-E-MF
2MP Box WizMind Network Camera
> 1/1.8" 2Megapixel progressive scan CMOS
> ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, appli cable to various bandwidth and storage environments
> 50/60 fps@1080 (1920 × 1080)
> WDR (140 dB), Day/Night (ICR), 3D NR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
> 2/1 Alarm in/out, 1/1 audio in/out (Built-in MIC)
> Auto back focus(ABF)
> Micro SD memory
> SMD3.0
Product Data
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/1.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/ 100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
C/CS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Protection |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
People Counting |
Support the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Event Trigger |
Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Intelligence |
Abandoned object; missing object |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Heat Map |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Capability |
3 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frame Rate |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
AI-driven perimeter, people counting and queue analytics projects that specify a 2MP WizMind box camera with C/CS-mount lens flexibility.
WizMind intelligence supports face detection, perimeter protection, people counting and heat mapping to turn footage into usable operational insight.
The C/CS mount and auto back focus let you pair the body with a lens that matches each scene's field of view and focus needs.
Smart H.265+ and H.264+ compression plus triple streaming help balance image quality against bandwidth and storage budgets.
