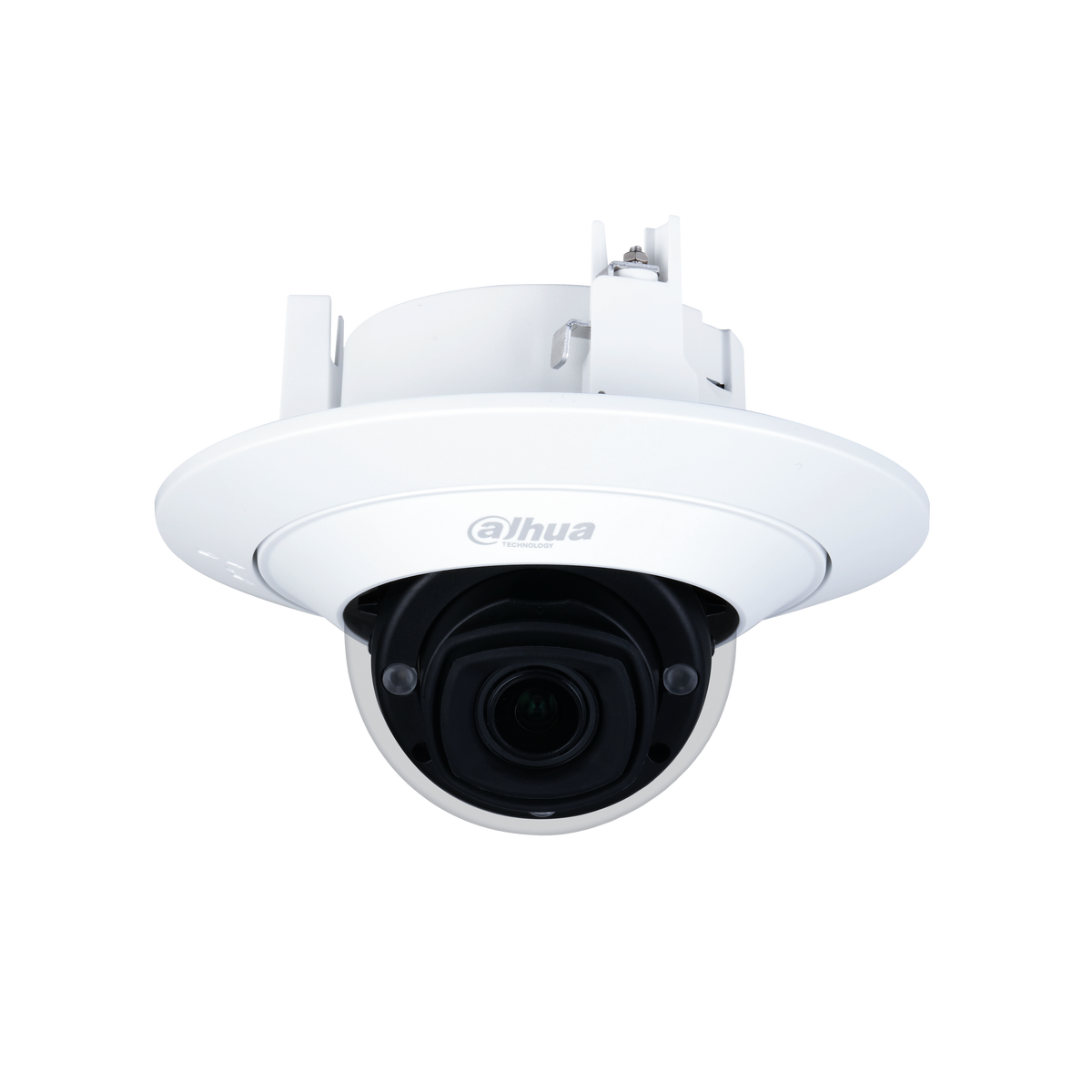

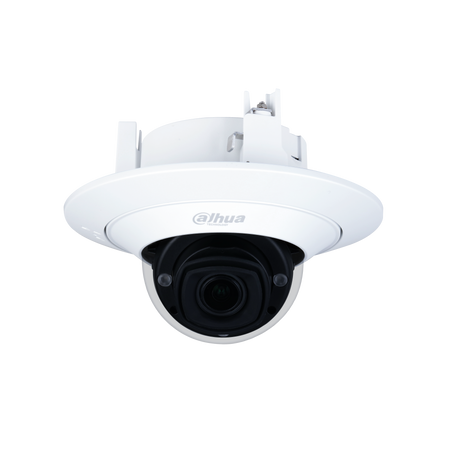

Dahua IPC-HDPW5541G-ZE 5MP IR Vari-focal WizMind Network Camera (EOL)
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
IPC-HDPW5541G-ZE
5MP IR Vari-focal WizMind Network Camera
> 1/2.7'' 5Megapixel progressive scan CMOS.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Outputs max. 5MP (2592 × 1944)@20 fps , and supports 4MP (2688 × 1520)@25/30 fps.
> 20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080).
> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC.
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS.
> 2.7 mm–13.5 mm motorized lens.
> 1/1 Alarm in/out, 1/1 audio in/out.
> Max. IR LEDs Length 40 m.
> Micro SD memory.
Product Data
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.7” 5Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
2592 (H) × 1944 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM/ROM |
1 GB/128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.005Lux@F1.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
Distance up to 40 m (131 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
3 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan: 0˚–355˚; Tilt: 0˚–75˚; Rotation: 0˚–355˚ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Motorized vari-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.7 mm–13.5 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 100°–28°, V: 72°–21° (2592 × 1944) H: 104°–29°, V: 55°–16° (2688 × 1520) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Aperture Type |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
0.8 m (2.62 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
W |
64 m (210 ft) |
26 m (85 ft) |
13 m (43 ft) |
6 m (20 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
T |
212 m (696 ft) |
85 m (279 ft) |
42 m (138 ft) |
21 m (69 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Artificial Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection |
Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo;three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Protection |
Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
People Counting |
Support the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Event Trigger |
Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
End-of-life replacement or spare-unit sourcing for projects already standardized on the Dahua IPC-HDPW5541G-ZE 5MP vari-focal WizMind camera.
A 1/2.7-inch 5-megapixel progressive scan CMOS sensor captures up to 2592 x 1944 images for sharper identification of people and objects.
The 2.7-13.5 mm motorized vari-focal lens lets you fine-tune the field of view remotely to match each scene without swapping hardware.
120 dB WDR, day/night ICR, 3D DNR and up to 40 m IR range help keep footage usable across bright, dim and low-light conditions.
