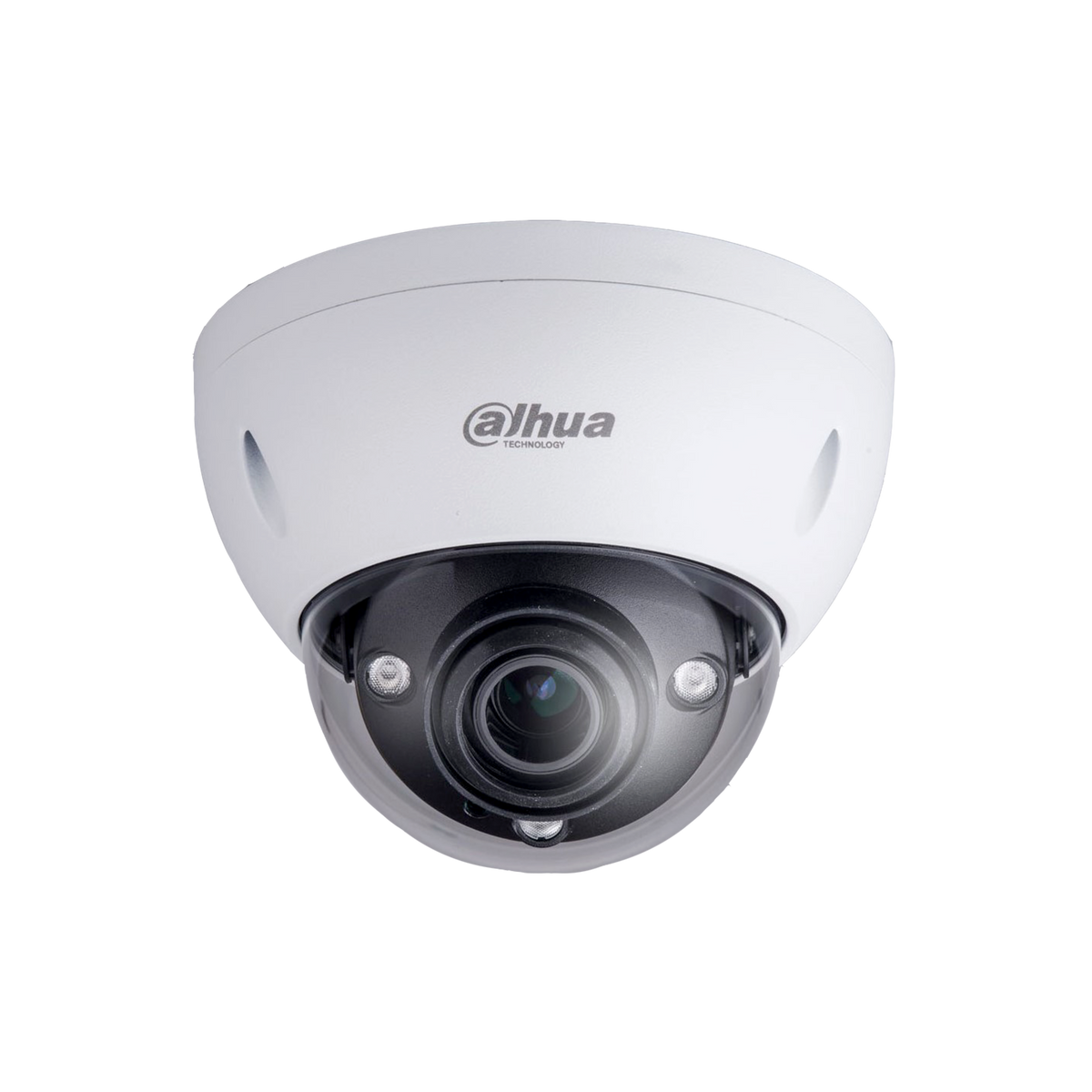

Dahua IPC-HDBW5431E-ZE 4MP WDR IR Dome Network Camera (EOL)
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
IPC-HDBW5431E-ZE
4MP WDR IR Dome Network Camera
> H.265&H.264 triple-stream encoding
> 25/30fps@4Mp(2688×1520)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm ~13.5mm motorized lens
> Max. IR LEDs Length 50m
> Micro SD card memory, IP67,IK10, PoE+
Product Data
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/3” 4Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
2688(H)x1520(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM/ROM |
512MB/32MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.03Lux/F1.4 (Color,1/3s,30IRE) 0.3Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
Distance up to 50m (164ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
Auto/ Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR LEDs |
3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Motorized/ Auto Iris(DC) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.7mm~13.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 106°~31°, V:58°~17° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Zoom |
5x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
Motorized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
0.3m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
W |
64(210ft) |
26m(85ft) |
13m(42ft) |
6.5m(21ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
T |
208m(682ft) |
83m(272ft) |
41m(136ft) |
20m(68ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Advanced Intelligent Functions |
Face Detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
H.265+/H.265/H.264+/H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Capability |
3 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
4M(2688x1520)/3M(2304x1296)/ 1080P(1920x1080)/ 1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frame Rate |
Main Stream: 4M(1~25/30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sub Stream: D1(1~25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third Stream: 720P(1~25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate |
H.264: 24~10240Kbps H.265: 14~9984Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
End-of-life replacement or spare-unit coverage for outdoor entrances, walkways and building perimeters needing a motorized-zoom IR dome.
A 1/3-inch 4MP progressive scan sensor delivers 2688x1520 detail for identifying activity across entrances and walkways.
The 2.7-13.5mm motorized lens with 5x optical zoom lets you reframe the view remotely instead of climbing to adjust the camera.
IP67 and IK10 ratings plus up to 50m IR range support dependable day/night monitoring in exposed outdoor positions.
