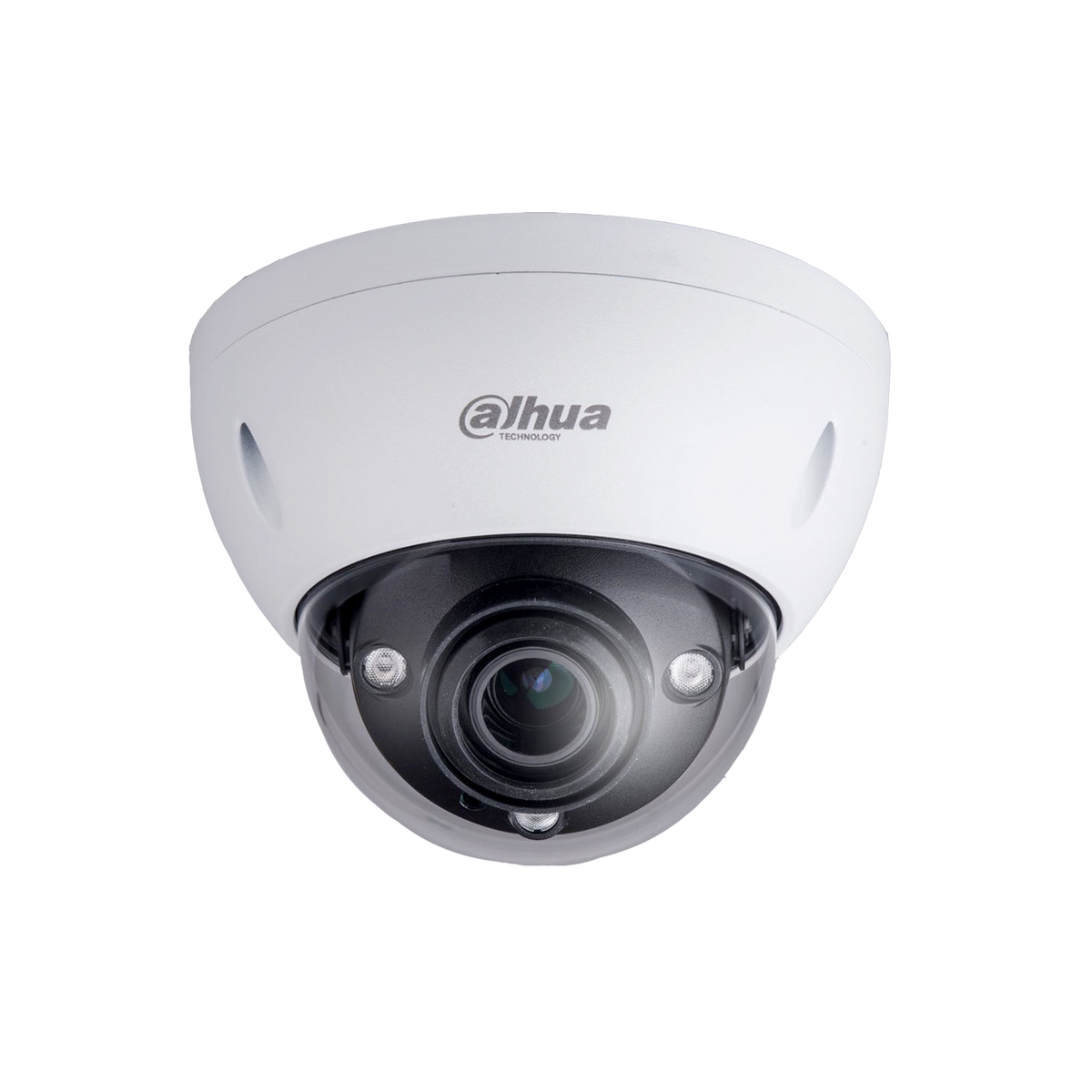

Dahua IPC-HDBW5231E-ZE 2MP WDR IR Dome Network Camera
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
IPC-HDBW5231E-ZE
2MP WDR IR Dome Network Camera
> H.265&H.264 triple-stream encoding
> 50/60fps@1080(1920×1080)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm ~13.5mm motorized lens
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 50m
> Micro SD memory, IP67, IK10, PoE+
Product Data
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.8” 2Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
1920(H) x 1080(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM/ROM |
256MB/32MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.006Lux/F1.4 ( Color,1/3s,30IRE) 0.05Lux/F1.4 ( Color,1/30s,30IRE) 0Lux/F1.4 (IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
Distance up to 50m (164ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
Auto/ Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR LEDs |
3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Motorized/ Auto Iris(DC) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.7mm~13.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 101°~31°, V:54°~17° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Zoom |
5x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
Motorized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
0.3m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
W |
44m(144ft) |
18m(59ft) |
9m(29ft) |
4m(13ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
T |
143m(469ft) |
57m(187ft) |
28m(92ft) |
14m(46ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Advanced Intelligent Functions |
Face Detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
H.265+/H.265/H.264+/H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Capability |
3 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frame Rate |
Main Stream: 1080P (1~50/60fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sub Stream: D1(1~50/60fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third Stream: 1080P(1~25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate |
H.264: 24~9472Kbps H.265: 14~5632Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Fixed outdoor dome surveillance of entrances, walkways and perimeter areas where a motorized zoom lens and IR coverage up to 50m are useful.
The 2.7mm to 13.5mm motorized lens lets you adjust framing remotely to suit each camera position.
A STARVIS CMOS sensor with 120dB WDR and IR illumination up to 50m supports clearer images across challenging lighting.
IP67 and IK10 ratings make this dome suitable for exposed outdoor mounting where weather and impact resistance matter.
