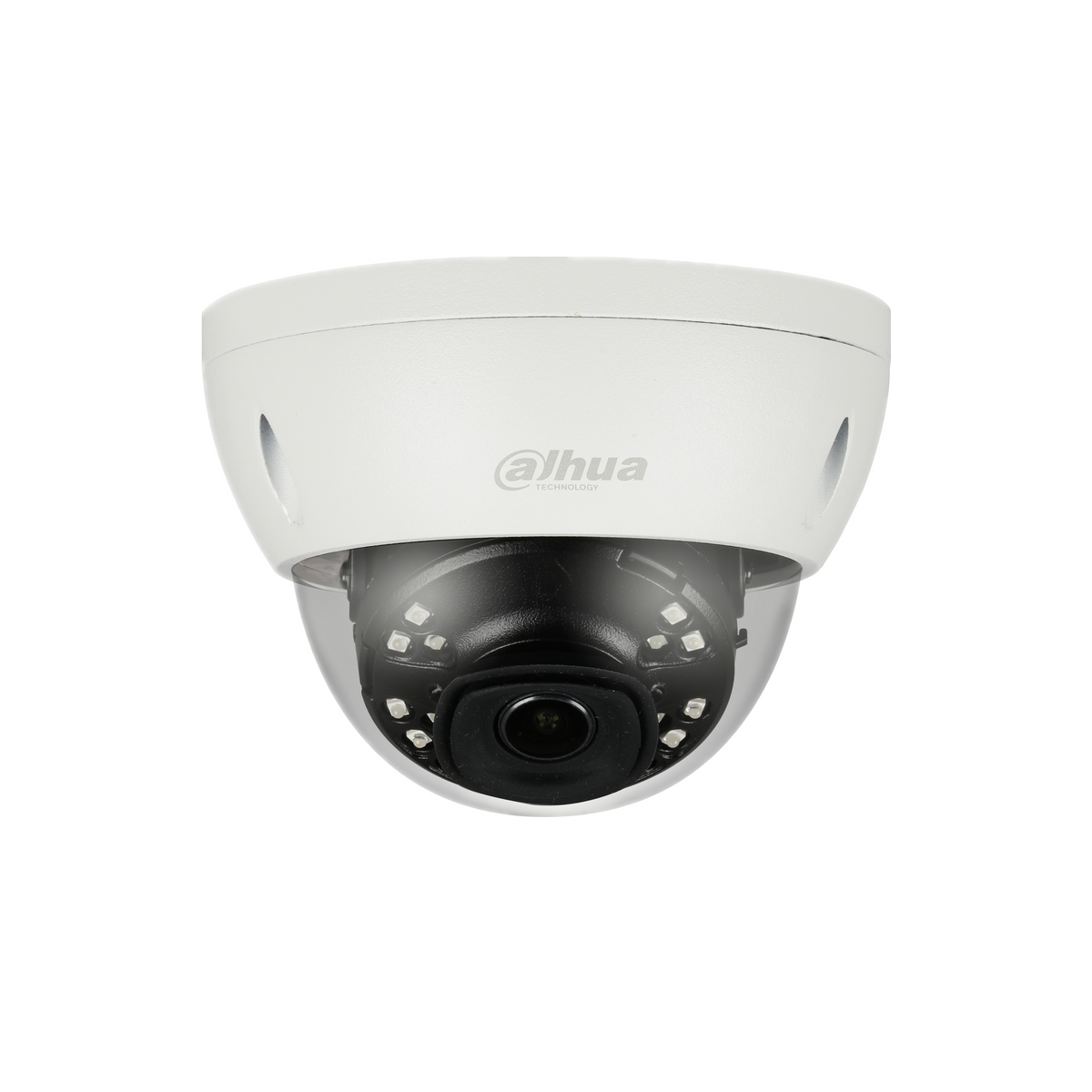

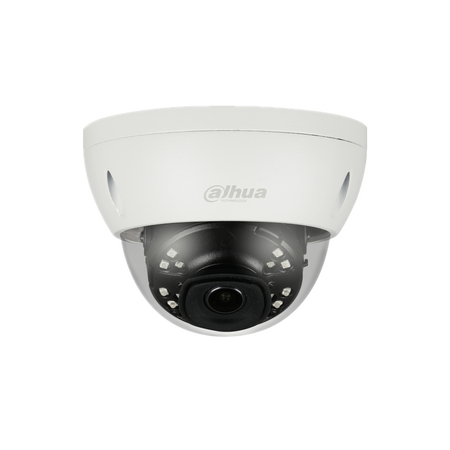

IPC-HDBW4431E-ASE
4MP IR mini Dome Network Camera
> H.265&H.264 triple-stream encoding
> 25/30fps@4M(2688×1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm, 6mm optional)
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 30m
> Micro SD memory, IP67, IK10, PoE
Product Data
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motion Detetion |
Off / On (4 Zone, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Region of Interest |
Off / On (4 Zone) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Image Stabilization (EIS) |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart IR |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Defog |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Digital Zoom |
16x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flip |
0°/90°/180°/270° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Off / On |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet |
RJ-45 (10/100Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF, PSIA, CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Method |
Unicast / Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. User Access |
10 Users /20 Users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Edge Storage |
NAS Local PC for instant recording Mirco SD card 128GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Viewer |
IE, Chrome, Firefox, Safari |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
Smart PSS, DSS, Easy4ip |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Phone |
IOS, Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Interface |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Interface |
1/1 channel In/Out |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS485 |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
1 channel In: 5mA 5VDC 1 channel Out: 300mA 12VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
<5W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Legacy or replacement installations that specifically require the end-of-life IPC-HDBW4431E-ASE 4MP IR mini dome camera.
The 1/3-inch progressive scan CMOS delivers 4MP detail at up to 30fps, helping you identify people and activity across the scene.
Integrated IR LEDs reach up to 30m, so the camera keeps monitoring after dark with automatic ICR day/night switching.
IP67 weather protection and IK10 vandal resistance let you deploy this mini dome in exposed and tamper-prone locations.
