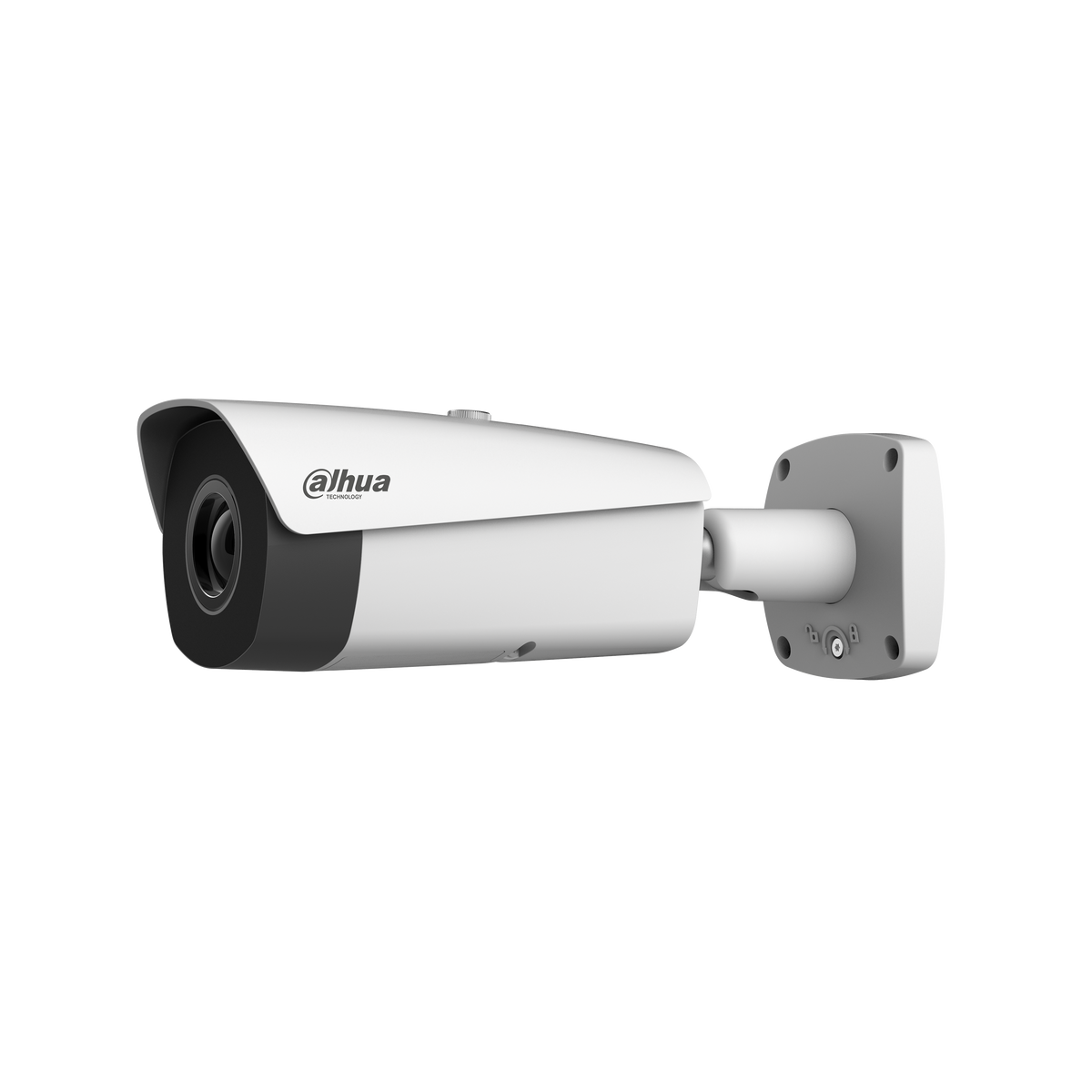

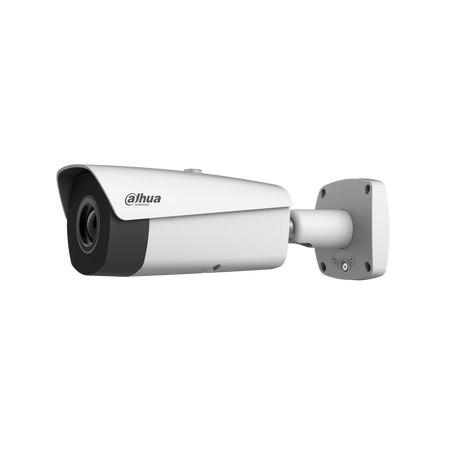

DAHUA TPC-BF5600 Thermal Network Bullet Camera
DAHUA TPC-BF5600 Thermal Network Bullet Camera
icctvzone

Dahua TPC-BF5600 640x512 VOx Thermal Network Bullet Camera

In stock
SKU: TPC-BF5600
$6,899.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

TPC-BF5600

Thermal Network Bullet Camera

> 640x512 VOx uncooled thermal sensor technology
> Athermalized Lens (thermal), Focus-free
> Support Fire detection & alarm
> Various lens optional (9/13/19/25/35mm)
> 2/1 alarm in/out
> Micro SD memory, IP67, PoE




Product Data

Thermal Camera

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

640(H)x512(V)

Pixel Size

17um

Thermal Sensitivity (NETD)

<40mK@f/1.0

Spectral Range

7~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

14(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2 .etc)

Thermal Lens

Lens Type

Fixed

Focus Control

Athermalized, Focus-free

Focal Length

9mm

13mm

19mm

25mm

35mm

Angle of View

H: 69°

V: 56°

H: 45°

V: 37°

H: 32°

V: 26°

H: 25°

V: 20°

H: 18°

V: 14°

Effective Distance①

Man(1.8m*0.5m)

D②: 290m

R③: 70m

I ④: 40m

D: 450m

R: 110m

I: 60m

D: 640m

R: 160m

I: 80m

D: 1000m

R: 250m

I: 125m

D: 1300m

R: 320m

I: 160m

Effective Distance

Vehicle(2.3m*2.3m)

D: 880m

R: 220m

I: 110m

D: 1300m

R: 350m

I: 180m

D: 2000m

R: 500m

I: 250m

D: 3000m

R: 720m

I: 360m

D: 4000m

R: 1000m

I: 500m

Compression

H.264/MJPEG

Frame Rate

Main Stream:

1280*1024 (default)/720P @1 ~ 25/30fps

Sub Stream:

640*512 (default)/320*256 @1 ~ 25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 640 ~ 8192Kbps

Motion Detetion

Off/On (4 zone, Rectangle)

Region of Interest

Off/On (4 zone)

Electronic Image Stabilization

(EIS)

NA

Digital Zoom

24x

Flip

180°

Mirror

Off/On

Privacy Masking

Off/On (4 area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC

Intelligence

IVS

Tripwire, Intrusion, Object Abandon/Missing

Advanced Intelligent Functions

Fire detection & alarm

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Interoperability

ONVIF Profile S & G, PSIA, CGI

Streaming Method

Unicast/Multicast

Max. User Access

10 Users/20 Users

Edge Storage

micro SD (128GB)

Memory status display (Normal/Error/Active/Formatting/Lock),

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer



Management Software

SmartPSS, DSS

Smart Phone

Android, Ios

Certifications

Certification

CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB )

Interface

Video Interface

1.0Vp-p/75Ω, PAL/NTSC (HDCVI Optional)

Audio Interface

1 Input

RS485

NA

Alarm

2/1 In/Out

Electrical

Power Supply

AC 24V/DC 12V/PoE

Power Consumption

Max. 7W

Environmental

Operating Condition

-40°C ~ +60°C (-40°F ~ +140°F)/Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Strorage Conditions

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

291mm× 103mm× 97mm (11.46" x 4.06" x 3.82")

Net Weight

1.37Kg (3.02 lb)

Gross Weight

1.7Kg (3.75 lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Perimeter and fire-detection monitoring where a focus-free, athermalized thermal bullet camera with selectable 9/13/19/25/35mm lens is required.

Before you orderConfirm the required focal length (9/13/19/25/35mm), alarm wiring needs and current lead time before ordering, since lens choice changes coverage and detection distance.
01
Clear Thermal Imaging

The 640x512 VOx microbolometer sensor with under 40mK NETD helps reveal heat signatures in low-contrast scenes.

02
Focus-Free Thermal Lens

An athermalized fixed-focus lens stays sharp without manual focusing, reducing setup effort across the range.

03
Fire Detection Support

Built-in fire detection and alarm functions plus 2/1 alarm in/out support early warning workflows.
