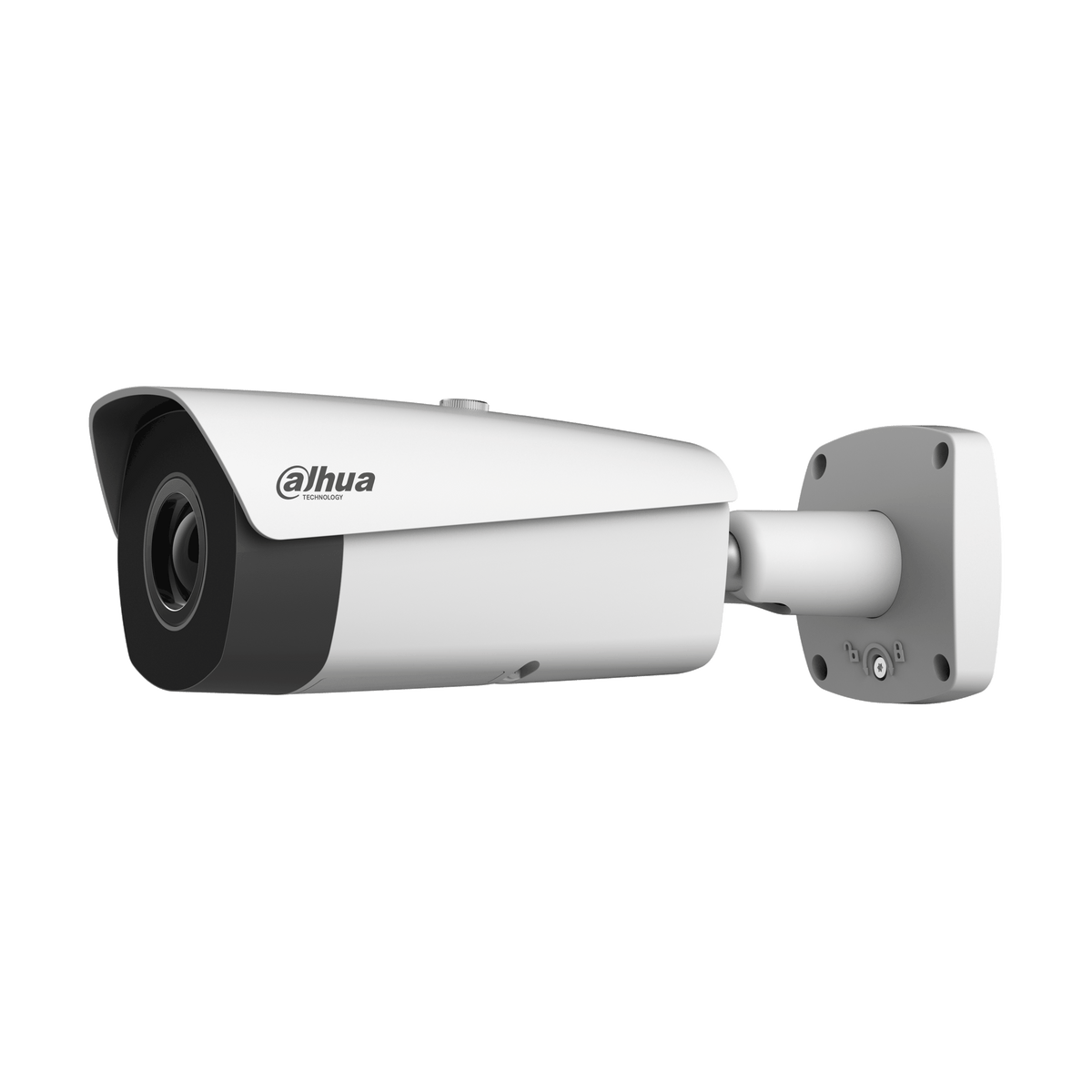

Dahua TPC-BF5401-S2 400x300 VOx Thermal Network Bullet Camera
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
TPC-BF5401-T-S2
Thermal Network Bullet Camera
> 400x300 VOx uncooled thermal sensor technology
> Athermalized Lens (thermal), Focus-free
> Support temperature measurement
> Various lens optional (7.5/13/25/35mm)
> 2/2 alarm in/out
> Micro SD memory, IP67, PoE, ePoE
Product Data
|
Thermal Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
Uncooled VOx Microbolometer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
400(H)x300(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixel Size |
17um |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thermal Sensitivity(NETD) |
40mK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Spectral Range |
8~14um |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Setting |
Brightness/Sharpness/ROI/AGC/FFC/3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color Palettes |
18(Whitehot/Blackhot/Ironrow/Icefire/ Fusion/Rainbow/Globow/Iconbow1/ Iconbow2 .etc) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thermal Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed/F1.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
Athermalized, Focus-free |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
7.5mm |
13mm |
25mm |
35mm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 53.7° V: 39.7° |
H: 30.2° V: 22.6° |
H: 15.5° V: 11.6° |
H: 11.1° V: 8.3° |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Distance① Man(1.8m*0.5m) |
D②: 221m R③: 57m I ④: 28m |
D: 382m R: 98m I: 49m |
D: 735m R: 189m I: 95m |
D: 1030m R: 265m I: 132m |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Distance Vehicle(4m*1.4m) |
D: 490m R: 126m I:63m |
D: 850m R: 219m I: 109m |
D: 1634m R: 420m I: 210m |
D: 2288m R: 588m I: 294m |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Thermal perimeter and construction site monitoring where focus-free heat detection is needed day or night.
The 400x300 VOx microbolometer delivers thermal imaging with 40mK NETD sensitivity for reliable heat detection.
An athermalized, focus-free lens keeps the thermal image stable without manual refocusing during operation.
Choose from 7.5mm, 13mm, 25mm or 35mm focal lengths to match your required detection distance.
