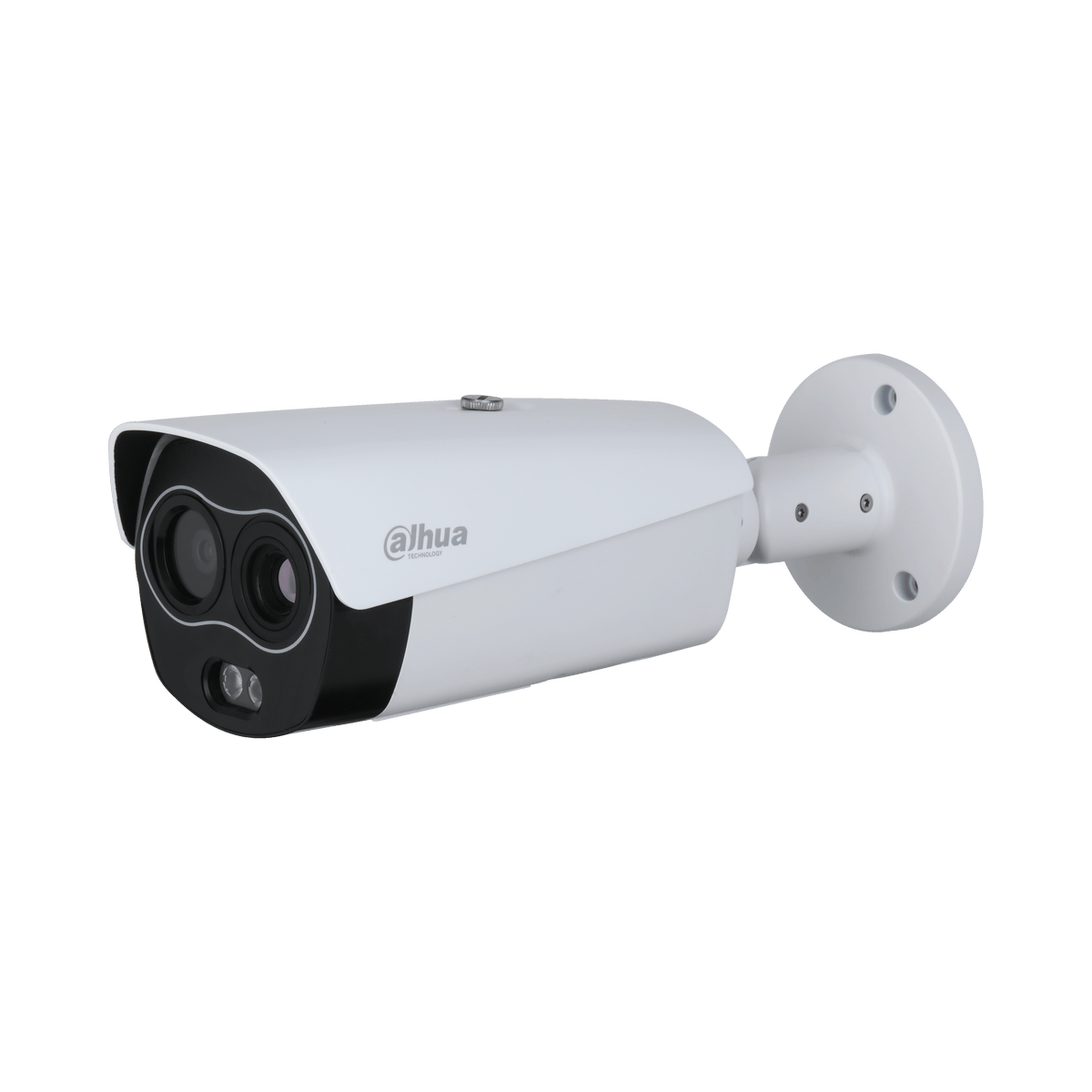

DAHUA TPC-BF5421 Thermal Network Hybrid Bullet Camera

icctvzone

Dahua TPC-BF5421 Thermal Network Hybrid Bullet Camera

In stock

SKU: TPC-BF5421

$2,054.00

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

TPC-BF5421

Thermal Network Hybrid Bullet Camera

> Vanadium oxide uncooled focal plane detector.
> Uses a 1/2.8 inch CMOS image sensor.
> Supports fire detection, smoking detection, tripwire, intrusion, call detection, target classification, and alarm linkages.
> Built-in white light and speaker.
> View videos on the web, app, PC and more.
> Micro SD memory, IP67, PoE, ePoE.
> Supports up to 18 color palettes.

Product Data

General

Appearance

Thermal Network Hybrid Bullet Camera

Type

Monitor

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 × 300

Pixel Pitch

17 μm

Spectral Range

8 μm –14 μm

Thermal Sensitivity (NETD)

≤ 40 mK@f/1.0

Focal Length

7.5 mm

13 mm

25 mm

Field of View

H: 53.7°

V: 39.7°

H: 30°

V: 22.6°

H: 15.5°

V: 11.6°

Focus Control

Athermalized

Aperture

F1.0

Focal Length

7.5 mm

13 mm

25 mm

DRI Effective Distance Human (1.8 m × 0.5 m)

D: 221 m

R: 57 m

I: 28 m

D: 382 m

R: 98 m

I: 49 m

D: 735 m

R: 189 m

I: 95 m

DRI Effective Distance Vehicle (4.0 m × 1.5 m)

D: 558 m

R: 147 m

I: 74 m

D: 1020 m

R: 225 m

I: 127 m

D: 1961 m

R: 490 m

I: 245 m

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

19 levels

AGC

Auto/Manual

Noise Reduction

2D NR/3D NR

Image Flip

0°; 90°; 180°; 270°/Mirror

Color Palettes

18 (white hot/black hot/fusion/rainbow/globow/ironbow1/ironbow2/sepia/color1/color2/icefire/rain/red hot/green hot/spring/summer/autumn/winter)

Visible

Image Sensor

1/2.8"CMOS

Max. Resolution

1920 × 1080

Pixel

2 MP

Horizontal Definition

≥ 1100 TVL

Min. Illumination

Color: 0.01 lux

Black & white: 0.001 lux

0 lux (IR on)

AGC

Auto/Manual

Noise Reduction

2D NR/3D NR

S/N Ratio

> 55 dB

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Sodium lamp/Street lamp/Natural

Defog

Electronic defog

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR)/Color/B/W

Iris Control

Fixed

Image Flip

0°; 90°; 180°; 270°/Mirror

Exposure Compensation

Yes

Focal Length

4 mm

8 mm

Field of View

H: 84.1°

V: 45.4°

H: 38.4°

V: 22.2°

Aperture

F2.0

F1.9

Illuminator Type

IR

Illuminator On/Off Control

Auto/Manual

Illumination Distance

35 m (114.5 ft)

50 m (164.0 ft)

Illuminator Angle

60°

45°

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B

Resolution

Thermal

Main stream: 1280 × 1024; 1280 × 960 ; 1280 × 720; 400 × 300; 192 × 144; 1280 × 960 (default)

Sub stream: 640 × 512; 640 × 480; 400 × 300; 192 × 144; 400 × 300 (default)

Visible

Main stream: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 1080p (default)

Sub stream: D1 (704 × 576); CIF (352 × 288); 352 × 288 (default)

Video Frame Rate

Thermal (50 Hz):

Main stream: 1 fps–25 fps

Sub stream: 1 fps–25 fps

Visible (50 Hz):

Main stream: 1 fps–25 fps

Sub stream: 1 fps–25 fps

Thermal (60 Hz):

Main stream: 1 fps–30 fps

Sub stream: 1 fps–30 fps

Visible (60 Hz):

Main stream: 1 fps–30 fps

Sub stream: 1 fps–30 fps

Video Compression

G.711a; G.711mu; PCM

Image Encoding Format

JPEG

Function

Two-way Audio

Yes

Sound and Light Alarm

Local audio and white light alarm prompts

Network Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x

Region of Interest (RoI)

Yes

Regional Focus

NA

Storage

FTP; Micro SD card (optional 512 GB, hot swapping)

Interoperability

CGI

Browser

IE: IE8 and later

Chrome: 42 and earlier

Firefox: 42 and earlier

User/Host

Up to 20 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

IVS

Yes. Supports tripwire and intrusion.

Intelligence

Fire Detection

Yes

Cold/Hot Spot Trace

Yes

Target Distinction

Human/Vehicle classification

Target Filtering

Yes

Smoking Detection

Yes

Call Detection

Yes

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

2

Alarm Output

1

Alarm Linkage

Recording; digital output; built-in sound and light alarm; email; snapshot; access control

Audio Input

1

Audio Output

1

RS-485

1

Power

Power Supply

12 VDC ± 20%, PoE (802.3af), ePoE

Power Consumption

Basic: ﹤ 8 W (12 VDC)

Max. (adapter excluded): ﹤ 18 W

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%

Physical Characteristics

Protection

IP67

Product Dimensions

262.0 mm × 11.6 mm × 110.6 mm (10.31" × 0.46" × 4.35") (L × W × H)

Packaging Dimensions

Package: 365 mm × 175 mm × 176 mm (14.37" × 6.89" × 6.93") (L × W × H)

Protection box: 902 mm × 380 mm × 380 mm (35.51" × 14.96" × 14.96") (L × W × H)

Net Weight

≤ 1.8 kg (3.97 lb)

Gross Weight

≤ 2.5kg (5.51 lb)

Installation

Wall mount; pole mount; corner mount

Power

Optional: S024-1A120200HE; S024-1A120200HK; S024-1A120200HU

Bracket

Wall mount: DH-PFA122 (optional)

Corner mount: DH-PFA151 (optional)

Pole mount: DH-PFA152-E (optional)

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Perimeter and fire-risk monitoring where thermal detection plus a visible 2 MP image is needed day or night.

Before you orderConfirm your required focal length (7.5 mm, 13 mm or 25 mm), power/PoE compatibility and current lead time before placing the order.

01

Dual Thermal and Visible

Combines a vanadium oxide thermal detector with a 1/2.8-inch CMOS visible sensor so you can correlate heat signatures with a clear 2 MP scene.

02

Smart Event Detection

Supports fire and smoking detection, tripwire, intrusion, call detection and target classification with alarm linkages to speed up response.

03

Built-In Deterrence

Integrated white light and speaker let the camera warn and deter intruders directly, while PoE/ePoE and IP67 simplify installation.
