Dahua PHSIA1.5-CH 1.5625mm Indoor Fine Pixel Pitch LED Display
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

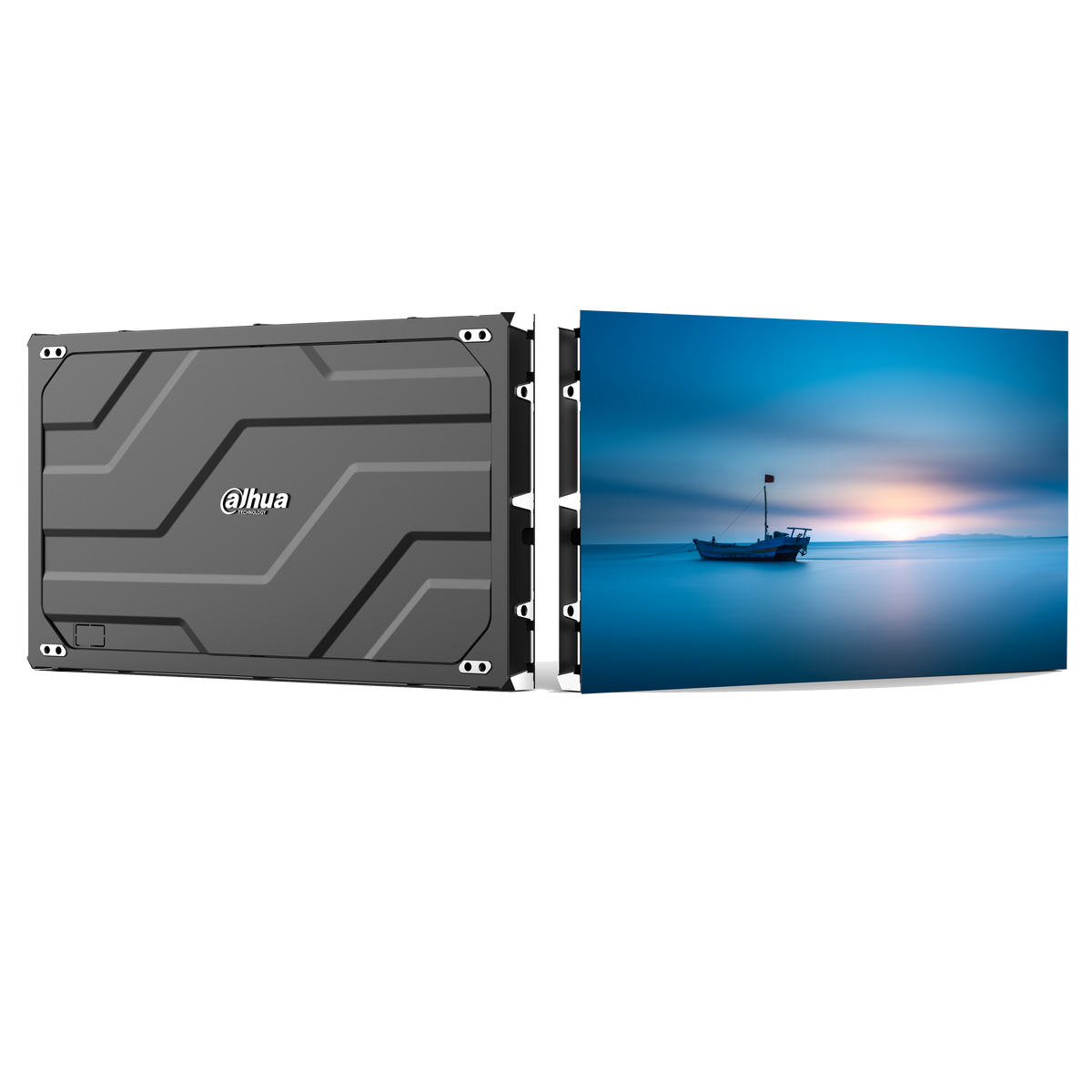

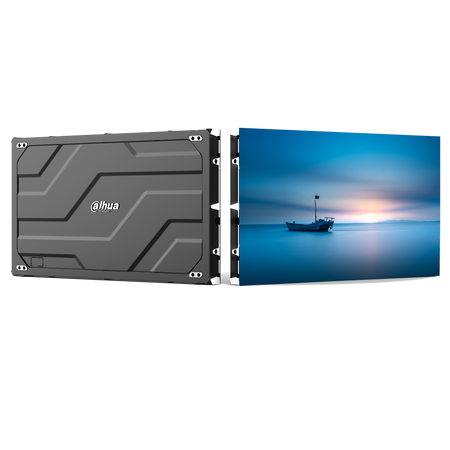

DAHUA PHSIA1.5-CH Indoor Fine Pixel Pitch LED
> Ultra-thin 40mm and super-light 4.0kg design.
> 16:9 Golden aspect ratio , can easily achieve pixel to pixel 2K,4K,8K,16K resolution.
> CNC die-casting aluminum cabinet,splicing tolerance is controlled within ±0.1mm.
> All parts support front maintenance.
> Dot by dot calibration ensures color richness and brightness uniformity.
Product Data
|
Model |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-PHSIA1.5-CH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Parameters |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixel Pitch |
1.5625mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixel Configuration |
1R1G1B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LED Type |
Flip COB Chip |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Brightness (Max) |
800 nit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color Temperature |
9300K ± 200K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Viewing Angle |
H160° / V160° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixel Density |
409,600 dots/m² |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Module Size |
150mm×168.75mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Module Resolution |
96x108 dots |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cabinet Size |
W600mm×H337.5mm×D40mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cabinet Resolution (W×H) |
384×216 dots |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cabinet Weight |
4.0 kg ± 0.1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cabinet Material |
Die-casting Aluminum |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature/Humidity |
-10℃~+40℃/10~80%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature/Humidity |
-20℃~+60℃/10~80%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Rating |
Front IP65/Rear IP43 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Aspect Ratio |
16:9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gray Scale |
13 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Contrast Ratio |
10000:1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Refresh Rate |
3840Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input Voltage |
AC 110~220V (+/-10%) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input Power (max) |
320 W/m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input Power (Avg) |
110 W/m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall Mounted/Floor Mounted |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Maintenance |
Front Maintenance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lamp Lifespan |
≥100,000 H |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Signal Transmission Distance |
CAT5 Cable ( L≤100m ), multi-mode fiber ( L≤300m ), single mode fiber (L≤10km) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Indoor control rooms, lobbies and meeting spaces that need a fine pixel pitch LED video wall with front maintenance access.
A tight 1.5625mm pixel pitch with 409,600 dots per square metre supports close-viewing detail on indoor walls.
Each die-cast aluminium cabinet is just 40mm deep and about 4.0kg, easing wall or floor mounting and handling.
All parts are serviceable from the front, so maintenance can be planned without rear access space behind the wall.
