Dahua DHL24-F600 23.8" FHD 1920x1080 Monitor
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

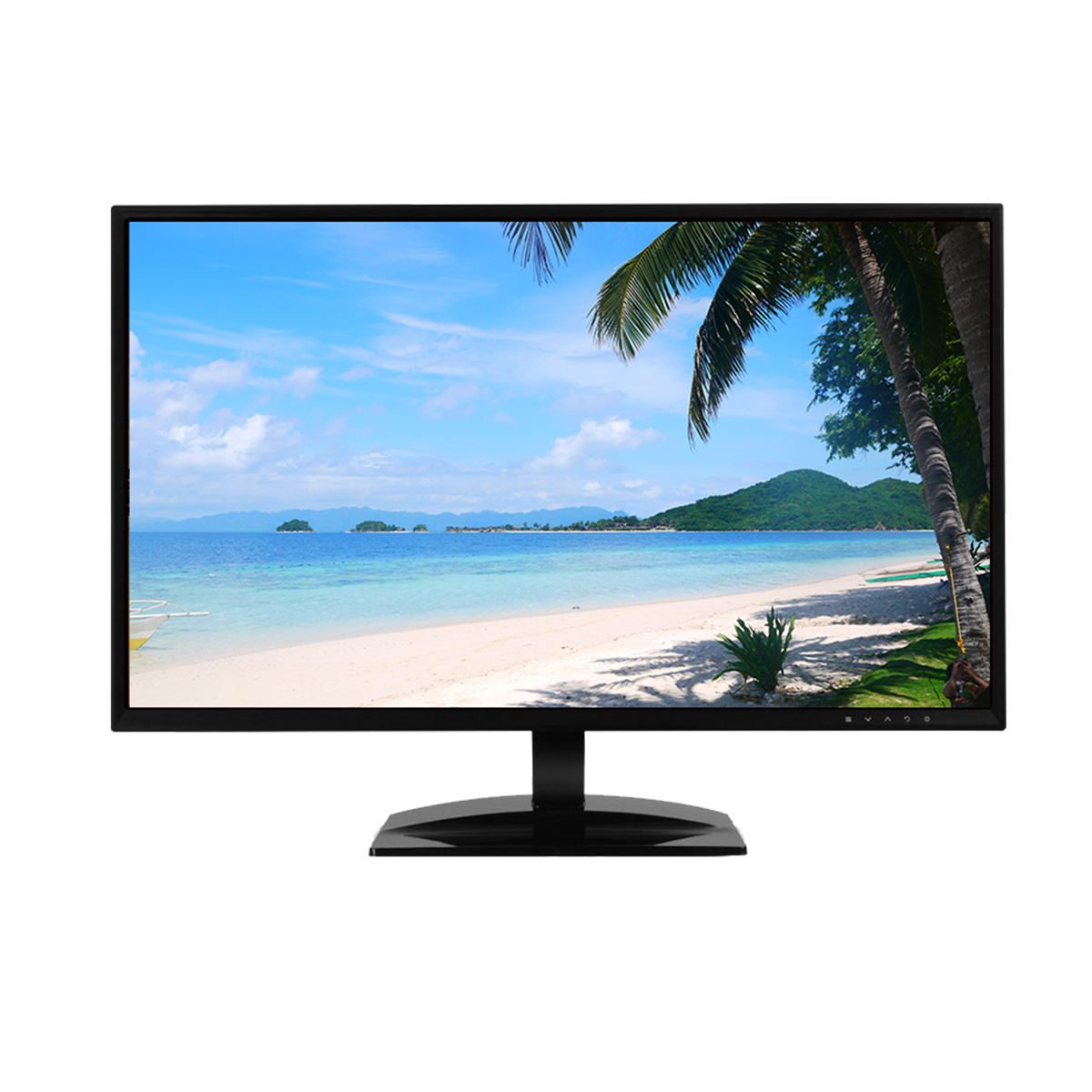

DAHUA DHL24-F600 23.8" FHD Monitor
> Physical resolution of 1920×1080
> High fidelity digital processing for a brilliant and vivid video
> Built-in speakers
> Good compatibility with DVRs and NVRs
> Low energy consumption, long service life
Product Data
|
Model |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHL24-F600 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Size |
23.8" |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Aspect Ratio |
16:9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1920×1080 (FHD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backlight |
LED |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Brightness/Luminance |
250 cd/㎡ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Contrast Ratio |
1000:1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display Color |
16.7M(8bit) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Viewing Angle(H/V) |
178°(H)/178°(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Response Time |
5ms |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Refresh Rate |
60Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Signals |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input |
HDMI×1, VGA(D-Sub)×1, Audio×1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output |
Speaker |
2W×2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
AC110~240V, 50/60 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Consumption (Standard) |
30W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Consumption (Standby) |
≤0.5W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Type |
Internal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
3.8kg (8.4lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
5.2kg (11.5lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bezel Width |
12.5mm (U/R/L), 18mm (B) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VESA |
75×75 mm (3.0"×3.0") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension without base (W×H×D) |
553.2×328.1×48.5mm (21.8"×12.9"×1.9") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Package(W×H×D) |
605×445×143mm (23.8"×17.5"×5.6") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Work Environment |
Temperature |
0℃~40℃ (32°F~104°F) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Humidity |
10%~85% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Standard |
VGA cable, power cable, pedestal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optional |
Hanging bracket |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE/FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
A dedicated 24/7 surveillance viewing station paired with a DVR or NVR in a control room or security desk.
Industrial-level LCD panel is built for continuous operation, so your monitoring display stays ready around the clock.
1920x1080 resolution with high-fidelity digital processing delivers a brilliant, vivid view of your camera feeds.
HDMI and VGA inputs plus built-in 2W speakers offer good compatibility with common DVRs and NVRs.
