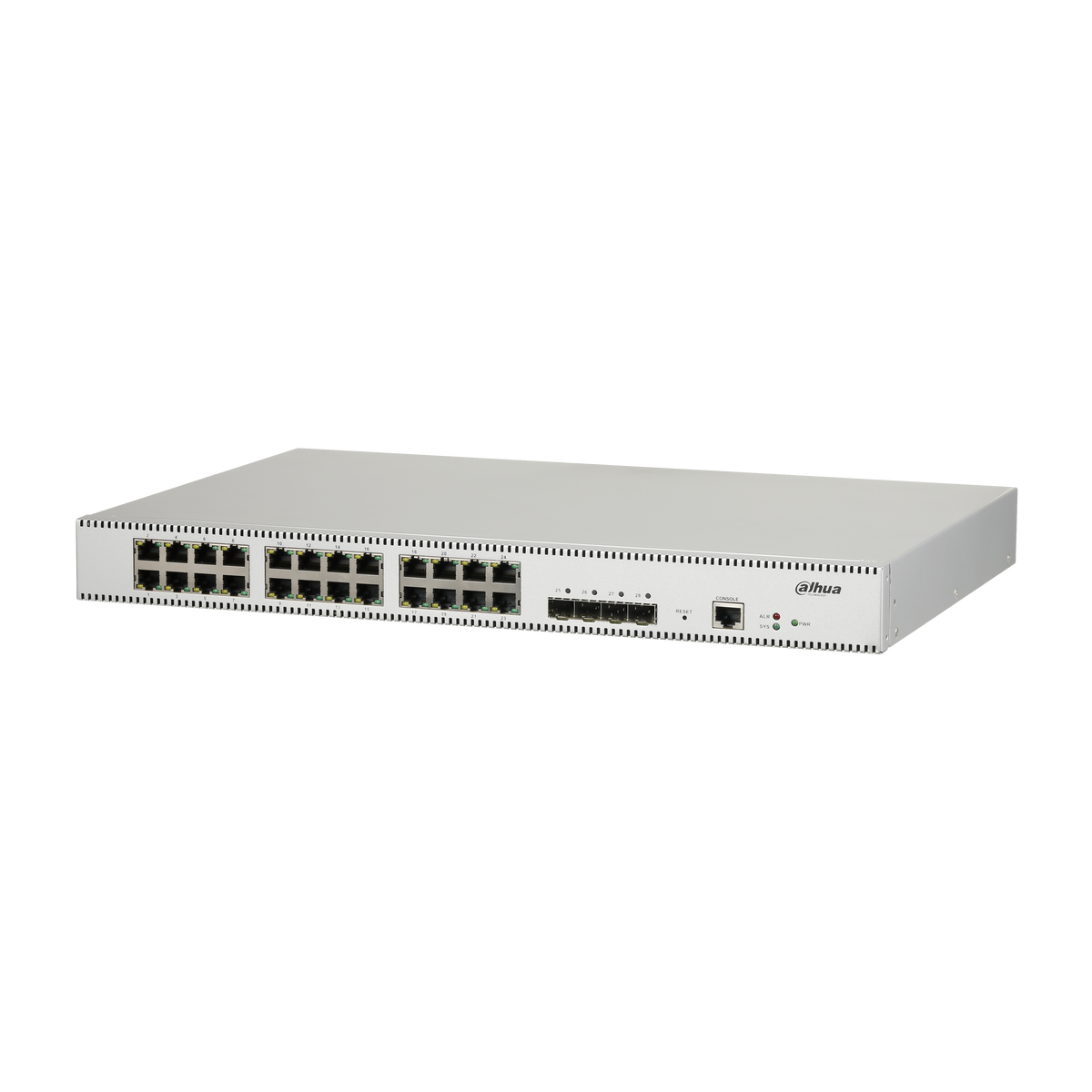

Dahua PFS5428-24GT L2+ Managed 24GE+4x10GE SFP+ Rack Switch
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFS5428-24GT
L2+ Managed Switch
> Hardened L2+ managed aggregation Switch
> 24GE+4 x GE/10GE SFP+
> Switching Capacity: 128Gbps
> High lightning protection: Common/Differential mode 4KV/2KV
> Wide working temperature: -20~55°C
> SFP+ fiber uplink
> Fanless thermal design
> Rack mounting
Product Data
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DH-PFS5428-24GT |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interfaces |
24x 10/100/1000 BASE-T port 4x 1000/10000 BASE-X SFP+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Ports |
One console port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
128Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Memory |
32Mb |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
96Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ARP Table |
1K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IPv4 FIB |
4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
-20°C~55°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%~90% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
440mm×300mm×44mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
3.15Kg |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input Voltage |
AC: 100~240V/0.8A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flow Control |
Enable by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lightning Protection |
Common mode 4KV Differential mode 2KV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Service Characteristics |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
Username / password: admin/admin |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Address :192.168.1.110/24 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table |
32K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN |
802.1Q Standard VLAN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Redundancy |
STP /RSTP/MSTP ERPS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port Aggregation |
Static link aggregation Dynamic link aggregation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirroring |
Many-to-one port mirroring |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DHCP |
Support DHCP-Client, DHCP-Server, DHCP-Relay |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flow Control |
Half-duplex based on back pressure type control, Full duplex based on PAUSE frame |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Security Features |
MAC binding based on port, IEEE802.1x port authentication |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System Maintenance |
One-key recovery Support the updated packet upload System log |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
QoS |
High and low priority, 802.1P, DSCP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Management |
WEB(http and https protocol), Telnet, SSH, Support SNMP V1/V2C/V3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Routing |
Static routing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessories |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
Model |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PFT3950 |
1.25G 850nm,500m,LC, Multi-mode |
PFTOTSFP-850-MMF |
10G 850nm,300m,LC, Multi-mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PFT3960 |
1.25G 1310/1550nm,20km,LC, Single-mode |
PFTOTSFP-1270T-20-SMF |
10G 1270/1330nm,20km,LC, Single-mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PFT3970 |
1.25G 1550/1310nm,20km,LC, Single-mode |
PFTOTSFP-1270R-20-SMF |
10G 1330/1270nm,20km,LC, Single-mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Aggregating 24 Gigabit surveillance camera links with 10GE fiber uplinks in a hardened, rack-mounted network cabinet.
Twenty-four Gigabit copper ports and four GE/10GE SFP+ slots give your camera network fast fiber backhaul without extra aggregation hardware.
Rated for -20 to 55°C operation with 4KV/2KV lightning protection, it suits less climate-controlled cabinets and edge locations.
VLAN, STP/RSTP/MSTP, ERPS, link aggregation and QoS let you segment camera traffic and keep video flowing reliably.
