Home » Dahua LR2110-8ET-120 8-Port ePoE Layer-2 Switch

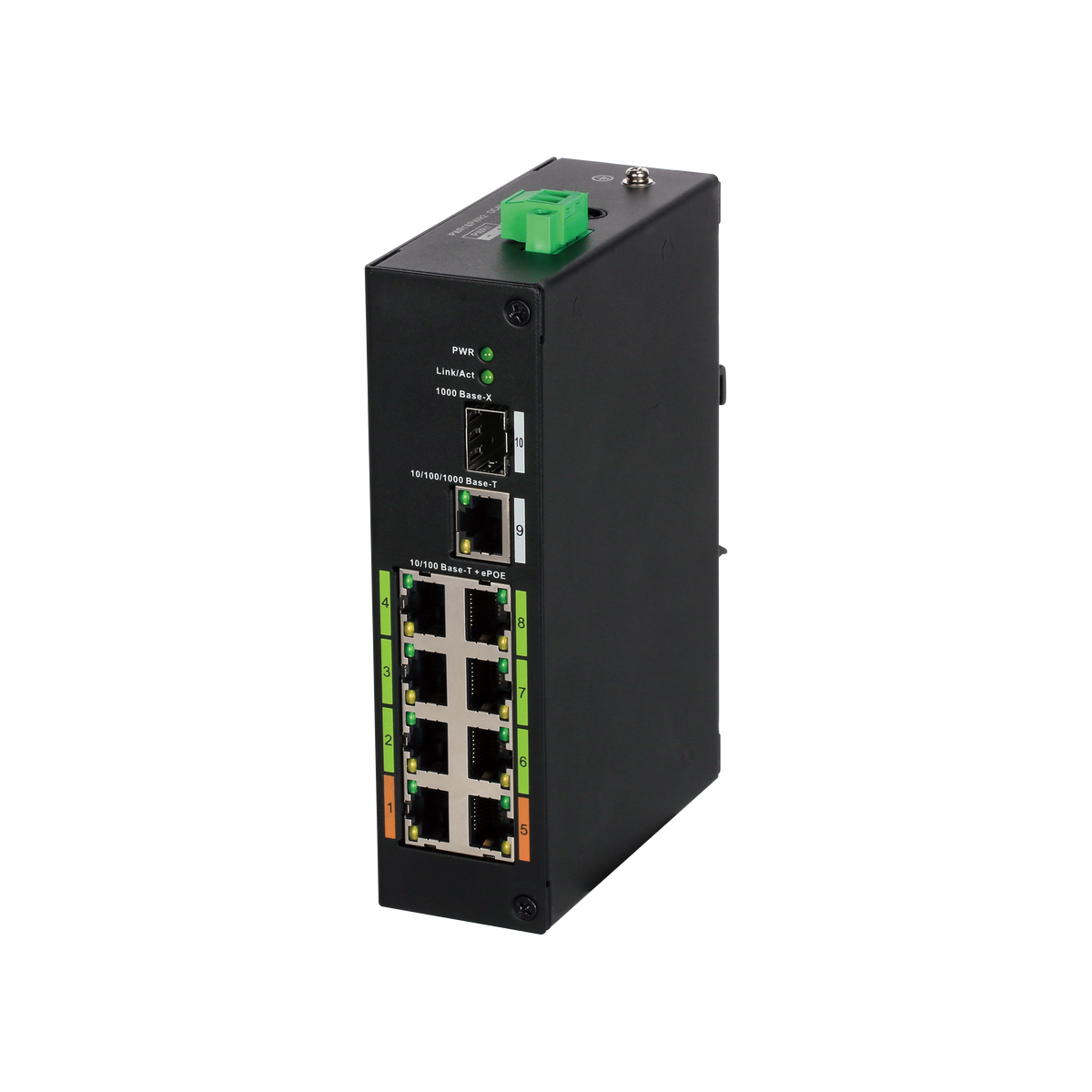

DAHUA LR2110-8ET-120 8-Port ePoE Switch
DAHUA LR2110-8ET-120 8-Port ePoE Switch
icctvzone

Dahua LR2110-8ET-120 8-Port ePoE Layer-2 Switch

In stock
SKU: LR2110-8ET-120
$198.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

LR2110-8ET-120

8-Port ePoE Switch

> Supports long distance PoE transmission up to 800m with ePoE technology
> Layer-two ePoE switch
> MAC auto study and aging, MAC address list capacity is 8K
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
> Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
> Industrial wide temperature design
> Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10



Product Data

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

8

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100 Mbps
Port 9: 1 × RJ-45 10/100/1000 Mbps
Port 10: 1 × SFP 1000 Mbps

Power Supply

External power supply: 54 VDC, 2.22 A

Operating Temperature

–30 °C to +65 °C (+22 °F to +149 °F)

Operating Humidity

10%–90% (RH), non-condensing

Power Consumption

Idling: 3.2 W
Full load: 120 W

Performance

Layer

Layer 2

Management Type

No

Smart Managed Switch

No

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

5.36 Mpps

Packet Buffer Size

2.75 Mbit

Jumbo Frame

9216 Byte

MAC Table Size

8K Byte

Communication Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab/z,IEEE802.3X

Feature

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power

Port 1,5 ≤90 W
Port 2,3,4,6,7,8 ≤30 W
Total ≤120 W

PoE Pin Assignment

1,2,4,5 (V+),3,6,7,8 (V-)

ePoE

Yes

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.6 kg (1.32 lb)

Gross Weight

1.9 kg (4.18 lb)

Product Dimensions

150 mm × 100 mm × 42 mm
(5.91" × 3.94" × 1.65") (L × W × H)

Packaging Dimensions

265 mm × 238 mm × 76 mm
(10.43" × 9.37" × 1.65") (L × W × H)

Casing Material

Iron

Installation

Rack mount; DIN guide rail mount

Certifications

CE; FCC

Transmission Performance:

Cable Length (m)

Communication Bandwidth (Mbps)

PoE Max Load

Capac-ity (W)

Hi-PoE Max Load Capacity (W)

IEEE802.3bt Max Load Capacity (W)

Network Operating Mode

100

100

25.5

53

71.3

IEEE/E100

200

100

25.5

47

52

E100

300

100

25.5

32

40

E100

400

10

23

26

30

E10

500

10

20

20

25

E10

800

10

13

13

13

E10

ePoE switch supply voltage 54 V.

CAT6, max. DC resistance < 10 Ω/100 m.

Cable Length (m)

Communication Bandwidth (Mbps)

PoE Max. Load Capacity (W)

Hi-PoE Max. Load Capacity (W)

Network Operating Mode

100

100

25.5

52

IEEE/E100

200

100

25.5

48

E100

300

100

22

28

E100

400

100

15

20

E100

500

10

12

12

E10

800

10

8

8

E10

1000

10

6

6

E10

ePoE switch supply voltage 54 V.

RG-59, max. DC resistance < 5 Ω/100 m.

IEEE802.3bt standard is not applicable to RG59 cable solution.

LED Indicator

Working Mode

LED Indicator

IEEE mode

Normally on

E100

On for 3 seconds, off for 1 second

E10

On for 1 second, off for 1 second

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Extending PoE surveillance cameras over long cable runs up to 800m in industrial or outdoor sites.

Before you orderConfirm your camera PoE class and total wattage fit within the 120W budget, and check lead time for the external 54 VDC power adapter.
01
Long-Distance ePoE

ePoE technology carries PoE transmission up to 800m, helping you reach cameras far from the network cabinet.

02
Flexible PoE Budget

Ports 1 and 5 deliver up to 90W each while other ports supply up to 30W, with a 120W total budget for varied devices.

03
Industrial Temperature Range

Rated for -30°C to +65°C operation, it suits demanding environments where standard switches may struggle.
