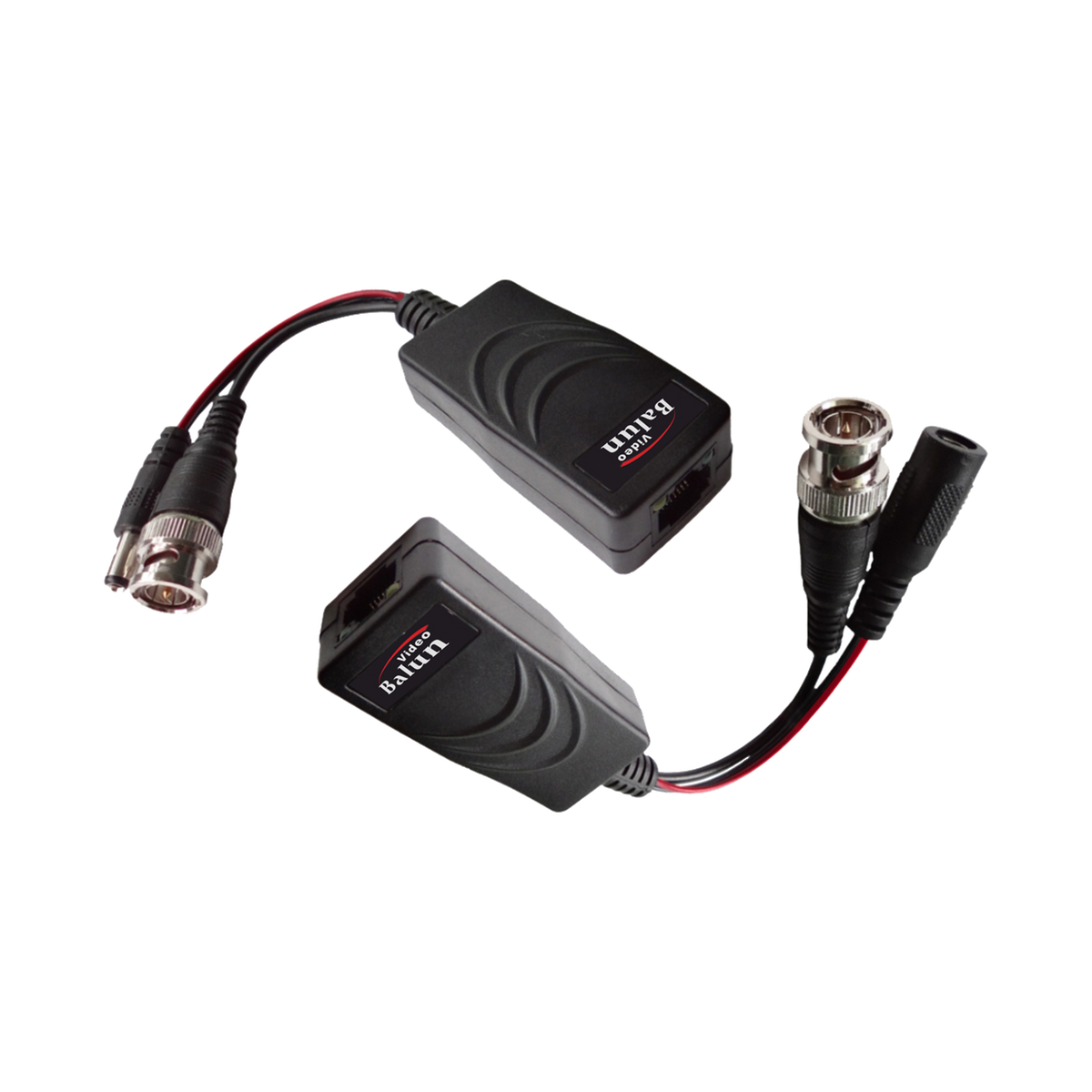

DAHUA PFM802 Passive Video Balun with Power
DAHUA PFM802 Passive Video Balun with Power
icctvzone

Dahua PFM802 Passive Video Balun with Power for HDCVI/TVI/AHD/CVBS

In stock
SKU: PFM802
$7.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

DAHUA PFM802 Passive Video Balun with Power

> Power supply: Input voltage DC12-15V, can provide power supply to remote cameras, simplify engineering wiring;
> Transmission effect: Use single UTP (CAT5E and CAT6) real-time transmit 1-CH video signal and 1-CH DC power, no delay;
> Protection: Excellent anti-thunder, anti-static and anti-interference capabilities;
> Compatible format: HDCVI/TVI/AHD/CVBS;
> Appearance structure: ABS engineering plastics shell, small size, use RJ45 standard interface connection mode.



Product Data

Technical Specification

Model

PFM802

Properties

Power Supply

DC12-15V

Category Type

UTP CAT5E/6 (conductor material: Cu )

Transmission Properties

Input

Distance

Output Power

Using DC12V0.7A power adapter and CAT5E cable for example

0-20m

7.5W

20-40m

6.2W

40-60m

4.5W

60-80m

3.7W

80-100m

2.9W

Video Transmission Properties

Coaxial Video Connector

BNC-M

Connection Way

RJ45

Compatible Format

HDCVI/TVI/AHD/CVBS

Resolution

720P/1080P/4MP

Protection

ESD

1a contact discharge electricity level 3

1b air discharge electricity level 3

Per: IEC61000-4-2

Coaxial Cable Connector

2KV(common-mode), 1KV (different-mode)

Per: IEC61000-4-5

UTP Cable Connector

2KV(common-mode), 1KV (different-mode)

Per: IEC61000-4-5

Power Connector

2KV(common-mode), 1KV (different-mode)

Per: IEC61000-4-5

Impedance

BNC Male

75 ohms

UTP Cable

100 ohms

Physical Properties

Weight

85g (0.19lb)

Dimension(LxWxH)

61.5mmx33.5mmx20.5mm (2.42”x1.32“x0.81”)

Shell

ABS

Color

Black

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Extending one analog or HD video channel plus DC power over a single CAT5E/6 run in small CCTV installations.

Before you orderConfirm your recorder supports HDCVI/TVI/AHD/CVBS, that your CAT5E/6 run length and power adapter suit the load, and check current lead time before ordering.
01
Single-Cable Transmission

Carries one video signal and one DC power feed over a single UTP run, which simplifies wiring between the camera and recorder.

02
Multi-Format Compatibility

Works with HDCVI, TVI, AHD and CVBS formats, so it fits mixed analog and HD coax-based systems.

03
Compact Protected Housing

The small ABS shell uses standard RJ45 connections and is built with anti-interference and surge protection features.
