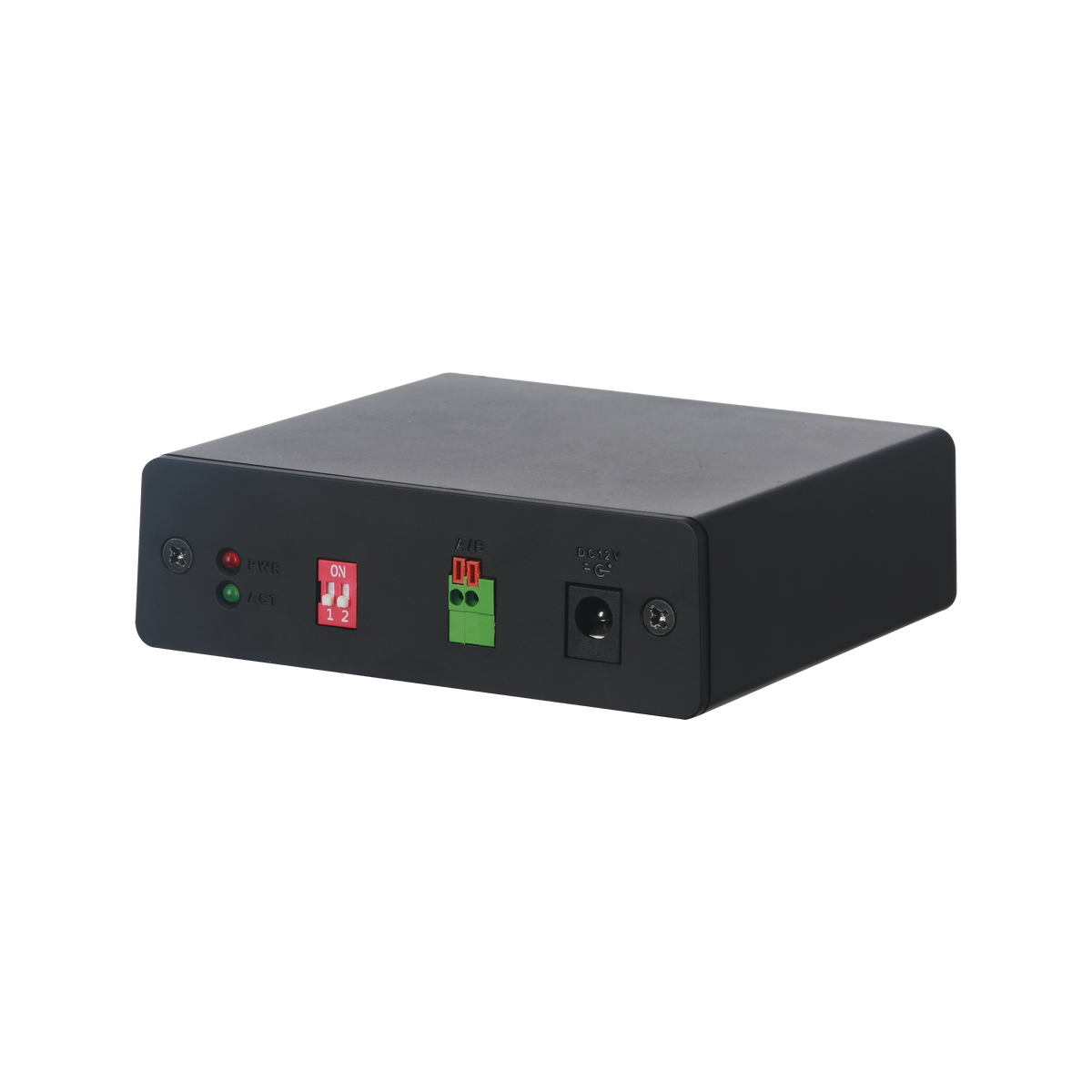

DAHUA ARB1606 Alarm Box
> Support through RS485 access to NVR&XVR
> Support 16ch Alarm In/6ch Alarm Out interface
> Support 2-bit DIP switch (0/1) to determine the different alarm box access; Max support 4 alarm boxes having access to the back-end storage device
> Support universal 12V power supply; Support using a separate adapter or through 1 to 2 power cable using the DVR adapter to supply the alarm box with power
> The front panel has a power indicator (PWR) which maintains lightening when the device is powered up; The front panel has a signal communication indicator (ACT) which lights up every 1 second when the communication is established between the alarm box and XVR/NVR equipment.
> Linked alarm can be configured on the alarm input and output interface when the communication is established between XVR/NVR device and the alarm box.
Product Data
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication |
1 RS485 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DIP Switch |
2-bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm In |
16ch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Out |
6ch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12V/1A (or use 1 to 2 power cable to use the DVR power) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
0.2W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-10°C ~ +55°C (+14°F ~ +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%~ 90% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Construction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
97.68mm×90.3mm×33mm (3.85" x 3.56" x 1.3") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
≤0.2kg(0.44lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop installation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
FCC: Coming Soon |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CE:Coming Soon |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
UL:Coming Soon |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Adding expanded alarm inputs and outputs to a Dahua NVR or XVR recorder over RS485.
Gives your recorder 16 alarm input channels and 6 alarm output channels for connecting sensors and triggers.
Connects to compatible NVR and XVR equipment through a single RS485 port for linked alarm configuration.
A 2-bit DIP switch sets each box's access identity, letting up to four alarm boxes connect to one back-end device.
