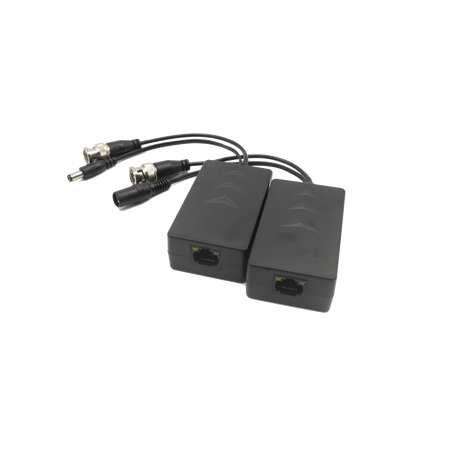

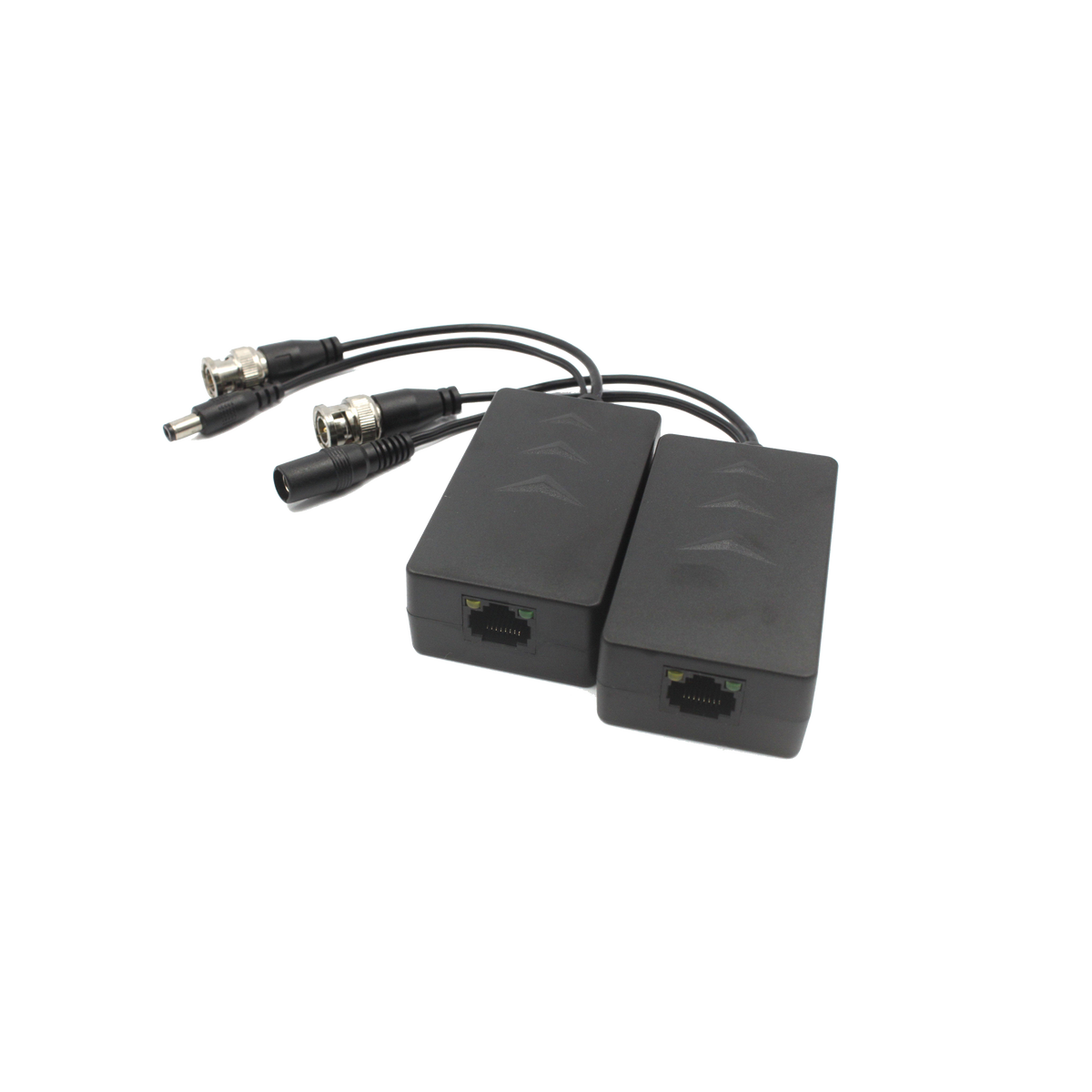

Dahua PFM801-4MP 1-Channel Passive HDCVI Balun with Power, UTP Video Transceiver
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
DAHUA PFM801-4MP 1 Channel Passive HDCVI Balun with Power
>Transmission effect: Real-time transmission video, no delay, strong anti-interference.
>Transmission distance: 400m (max).
>Mainfunctions: Use single UTP (CAT-5E and CAT-6) real-time transmit 1-ch HD videosignal and 1-ch DC power.
>Protectionand anti-interference: Excellent anti-thunder, anti-static andanti-interference capabilities.
>Appearancestructure: ABS engineering plastics shell, small size, use RJ45 standardinterface connection mode.
Product Data
| Model | PFM801-4MP | ||
| Properties | |||
| Transmission Signal | 1 channel | ||
| Transmission Distance | HDCVI: 720P: max.400m(1312.34ft); 1080P: max. 250m(820.21ft); 4MP: max. 200m(656.17ft) |
||
| Power Supply | Input Voltage | Distance | Output Power |
| DC24 | 0-100m | DC12V 8W | |
| 100-200m | DC12V 6W | ||
| 200-300m | DC12V 3W | ||
| DC36 | 0-300m | DC12V 8W | |
| Category Type | UTP CAT5E/6 | ||
| Video Transmission Properties | |||
| Coaxial Video Connector | BNC-M | ||
| Connection Way | RJ45 | ||
| Compatible Format | HDCVI/TVI/AHD/CVBS | ||
| Resolution | 720P/1080P/4MP | ||
| Anti-interference | >60db | ||
| Protection | |||
| ESD | 1a contact discharge electricity level 3 | ||
| 1b air discharge electricity level 3 | |||
| Per: IEC61000-4-2 | |||
| Coaxial Cable Connector | 2KV(common-code) | ||
| Per: IEC61000-4-5 | |||
| UTP Cable Connector | 2KV(different-code), 4KV(common-code) | ||
| Per: IEC61000-4-5 | |||
| Impedance | |||
| BNC Male | 75 ohms | ||
| UTP Cable | 100 ohms | ||
| Physical Properties | |||
| Dimension(L*W*H) | 72.6mm*42.5mm*24.5mm(2.86”x1.67”x0.96”) | ||
| Shell | ABS | ||
| Color | Black | ||
| N.W. | 66.4g(0.15lb)/57.4g(0.13lb) | ||
| Stability | |||
| MTBF | >10000H | ||
| Environmental | |||
| Operating Temperature | -10℃~+55℃(14℉~131℉) | ||
| Storage Temperature | -20℃~+70℃(-4℉~158℉) | ||
| Humidity | 0~95%(non-condensing) | ||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Sending one HDCVI, TVI, AHD or CVBS video signal plus DC12V camera power over a single CAT5E/6 UTP run in retrofit or long-cable installations.
Carries a single HD video signal and DC12V power over one UTP cable, cutting separate wiring runs and simplifying installation.
Supports real-time transmission up to 400m, with rated distances of 400m at 720P, 250m at 1080P and 200m at 4MP.
Anti-thunder, anti-static and anti-interference design with over 60dB anti-interference keeps signals stable in demanding sites.
