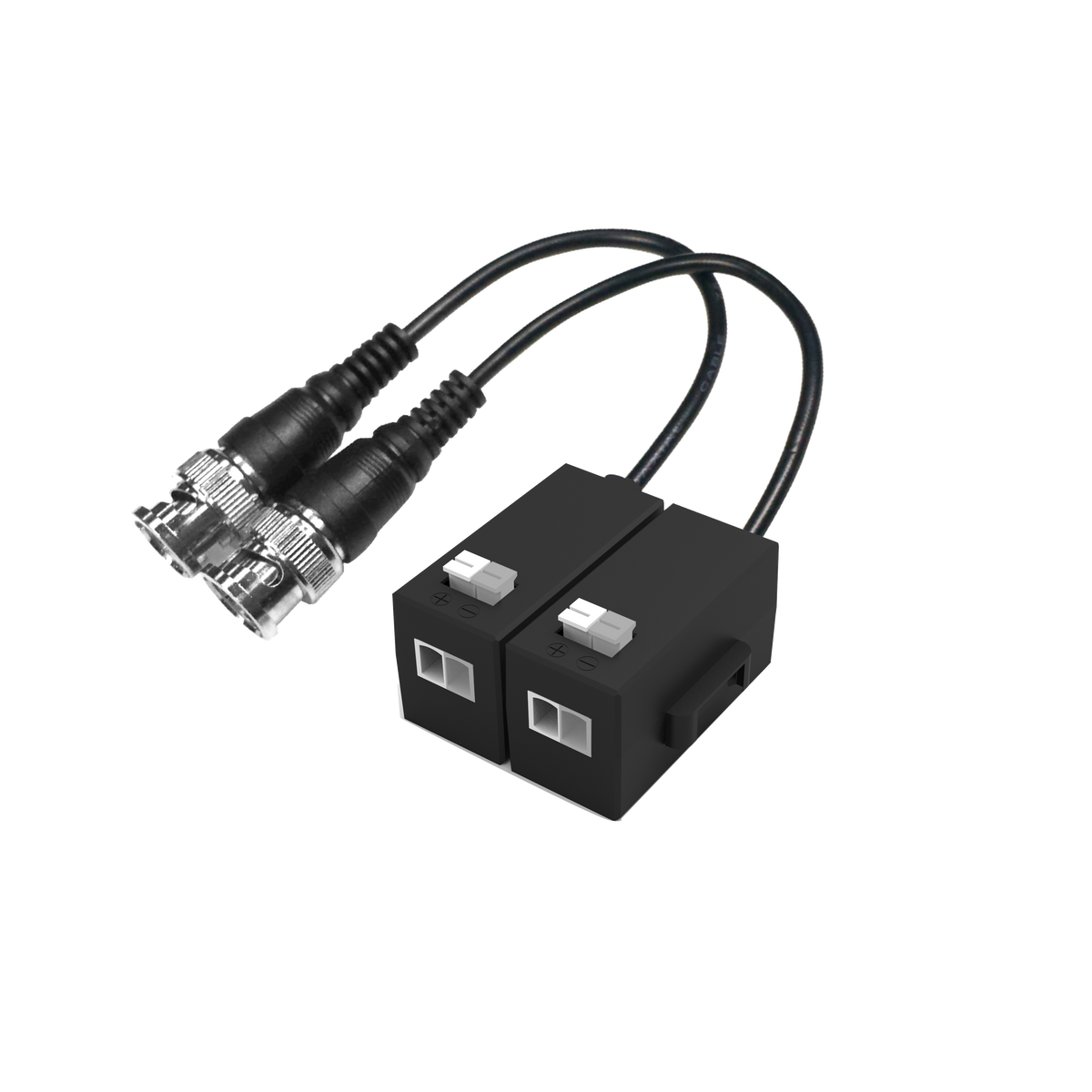

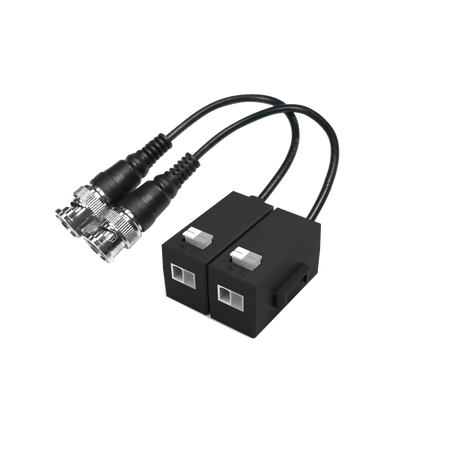

DAHUA PFM800-E 1 Channel Passive HDCVI Balun
Product Data
|
Model |
PFM800-E |
|
Properties |
|
| Transmission Signal |
1 channel |
| Transmission Distance |
HDCVI 720P: max.400m(1312.34ft) 1080P: max.250m(820.21ft) |
| Category Type |
UTP CAT 5E/6 |
|
Video Transmission Properties And Port |
|
| Coaxial Video Connector |
BNC-M |
| Twisted-pair Video Connector |
Push-terminal |
| Compatible Format |
HDCVI/AHD/TVI/CVBS |
| Resolution |
720P/1080P |
| Anti-interference |
＞60db |
|
Protection |
|
| ESD |
1a contact discharge electricity level 3 |
| 1b air discharge electricity level 3 |
|
| Per: IEC61000-4-2 |
|
| Coaxial Cable Connector |
2KV(common-code) Per: IEC1000-4-5 |
| UTP Cable Connector |
2KV(different-code), 4KV(common-code), Per: IEC1000-4-5 |
|
Impedance |
|
| BNC Male |
75 ohms |
| UTP Cable |
100 ohms |
|
Physical Properties |
|
| Dimension(L*W*H) |
180mm*19mm*16mm(7.09”x0.75”x0.63”) |
| Shell |
ABS |
| Color |
Black |
| N.W. |
42g/pair (0.09lb) |
|
Stability |
|
| MTBF |
＞10000h |
|
Environmental |
|
| Operating Temperature |
-10℃~+55℃(14℉~131℉) |
| Storage Temperature |
-20℃~+70℃(-4℉~158℉) |
| Humidity |
0~95%(non-condensing) |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Extending HDCVI, AHD, TVI or CVBS video over UTP CAT 5E/6 cable in analog-to-IP transitional installs.
Carries one HDCVI video signal over twisted-pair cable, reaching up to 400m at 720P and 250m at 1080P.
Works with HDCVI, AHD, TVI and CVBS formats at 720P or 1080P for flexible retrofits.
Slim black ABS housing with BNC male and push-terminal connectors keeps installs simple and tidy.
