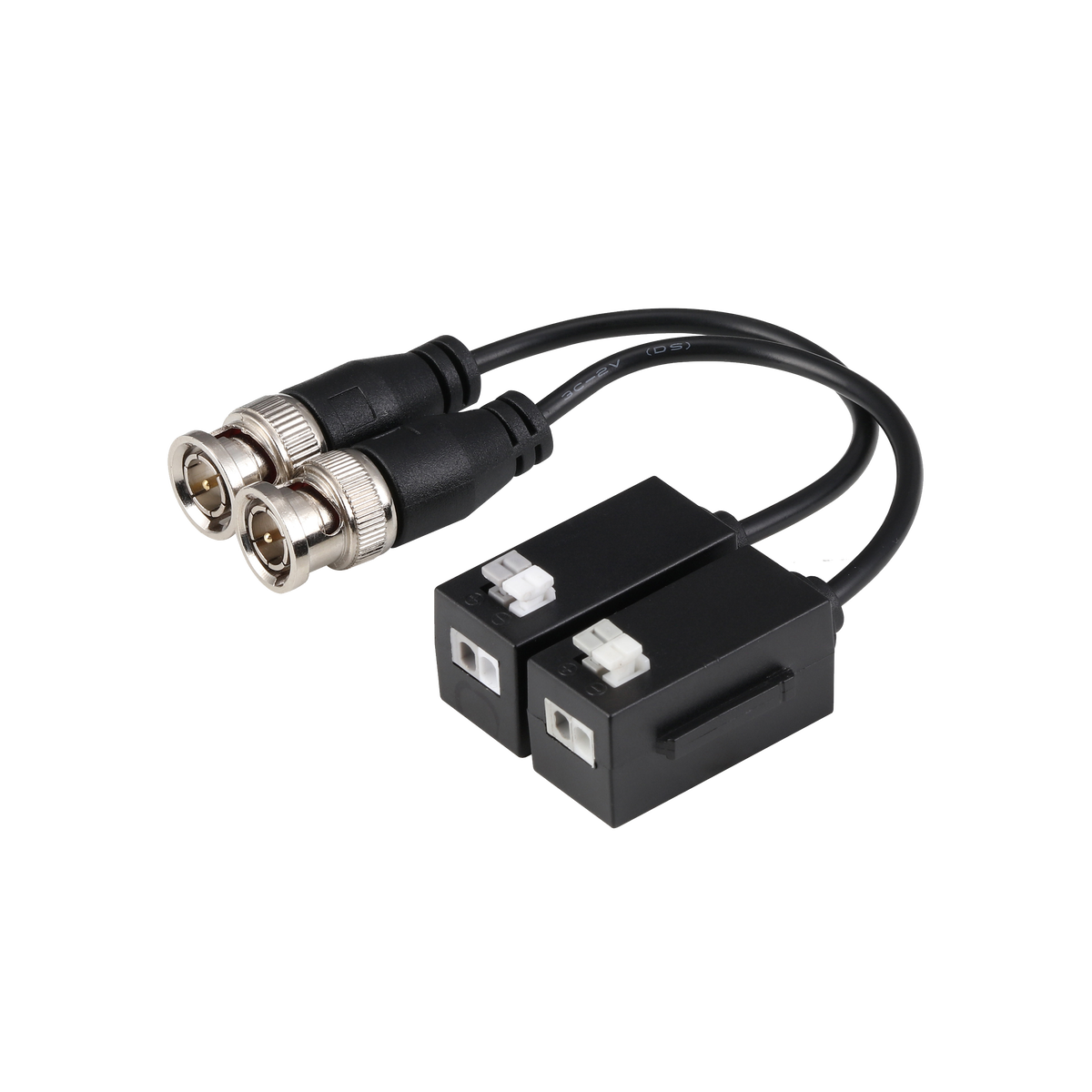

DAHUA PFM800-4K 1-CH Passive Video Balun
> Passive, no need for power supply;
> Excellent anti-thunder, anti-static and anti-interference capabilities;
> Compatible format: HDCVI/TVI/AHD/CVBS;
> With female BNC connector, and pluggable screw terminal connections.
Product Data
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DH-PFM800-4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Properties |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Transmission Signal |
1-CH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network cable Type |
UTP CAT5E/6 (material: CU) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Transmission Properties |
HDCVI |
720P : max.400m (1312.34ft) |
1080P : max.250m (820.21ft) |
4M/5M/4K : max.200m (656.17ft)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TVI |
720P : max.400m (1312.34ft) |
1080P : max.250m (820.21ft) |
4M/5M : max.200m (656.17ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AHD |
720P : max.400m (1312.34ft) |
1080P : max.250m (820.21ft) |
4M/5M : max.200m (656.17ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Transmission Properties |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Coaxial Video Connector |
BNC-M |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Connection Way |
RJ45 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compatible Format |
HDCVI/TVI/AHD/CVBS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
720P/1080P/4MP/5MP/4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ESD |
1a contact discharge electricity level 3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1b air discharge electricity level 3 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Per: IEC61000-4-2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
UTP Cable Connector |
2KV(different-mode), 4KV(common-mode) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Per: IEC61000-4-5 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Impedance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BNC Male Impedance |
75 ohms |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
UTP Cable Impedance |
100 ohms |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Physical Properties |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
40g (0.09lb) (1 pair) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension(LxWxH) |
173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Shell |
ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-30℃~+70℃(-22℉~+158℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
-40℃~+80℃(-40℉~+176℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Extending one analog HD or CVBS camera signal over UTP CAT5E/6 cable without a local power supply at the balun.
Passive design runs without a power supply, simplifying cable runs and reducing installation points.
Works with HDCVI, TVI, AHD and CVBS formats, so one balun type can cover mixed analog HD setups.
Anti-thunder, anti-static and anti-interference design helps keep video stable in demanding environments.
