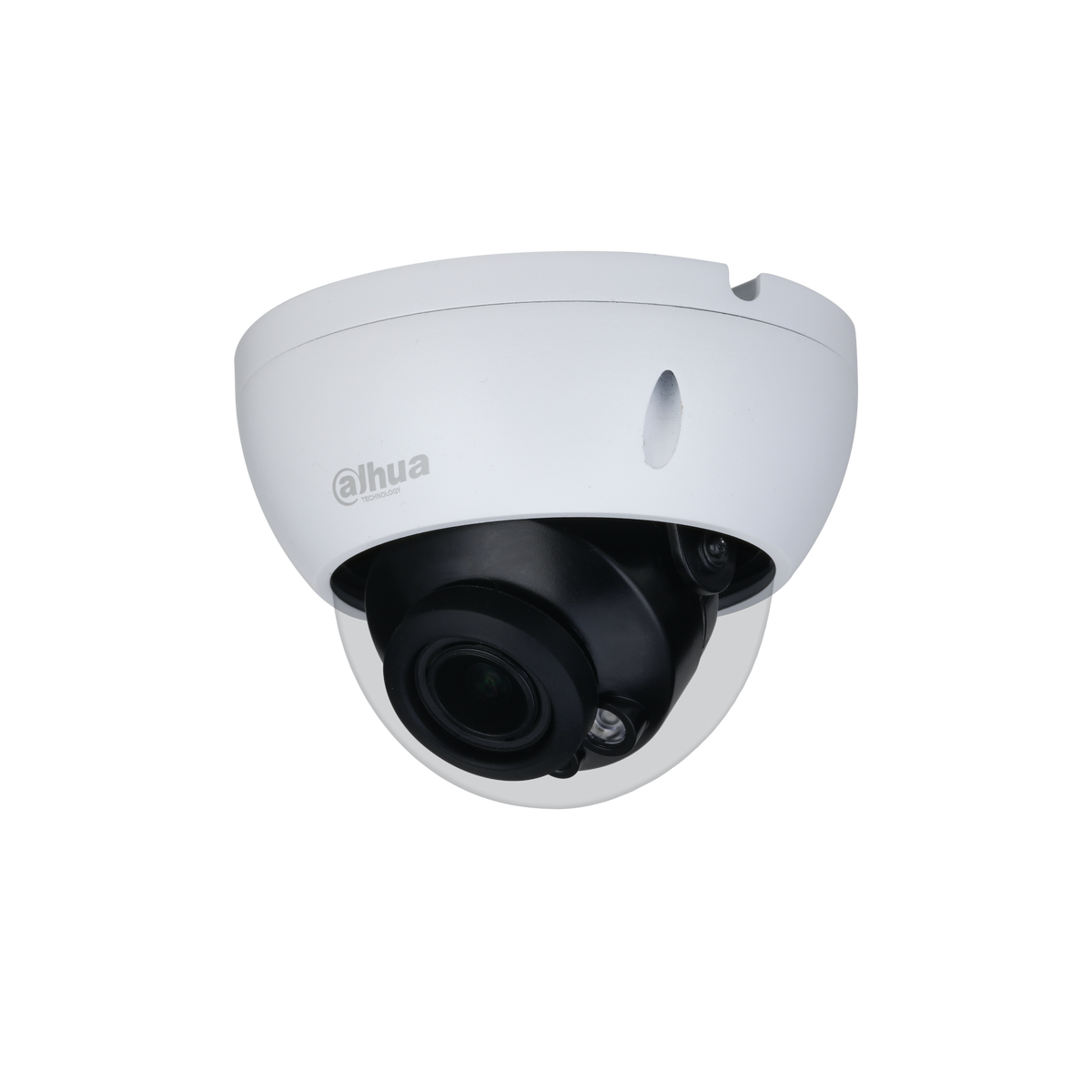

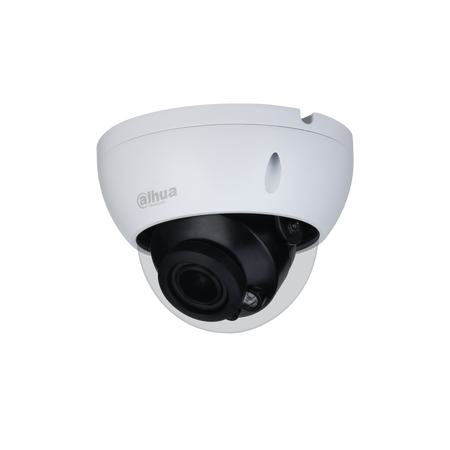

DAHUA HAC-HDBW1500R-Z 5MP Starlight HDCVI IR Dome Camera
DAHUA HAC-HDBW1500R-Z 5MP Starlight HDCVI IR Dome Camera
icctvzone

Dahua HAC-HDBW1500R-Z 5MP Starlight HDCVI IR Dome Camera

In stock
SKU: HAC-HDBW1500R-Z
$91.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

DAHUA HAC-HDBW1500R-Z 5MP Starlight HDCVI IR Dome Camera

* The parameters and datasheets below can only be applied to 1500-S2 series

* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

> Max 25 fps@5MP (16:9 video output)

> CVI/CVBS/AHD/TVI switchable
> 2.7-12 mm motorized lens
> Max. IR length 30 m, Smart IR
> IP67, IK10, DC12V


Product Data

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

S/N Ratio

> 65 dB

Min. Illumination

0.005Lux Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Auto Focus

N/A

Mount Type

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.6

Field of View

Diagonal: 39°–130°
Horizontal: 34°–107°
Vertical: 19°–55°

Iris Type

Fixed iris

Close Focus Distance

0.5 m (1.64 ft)

DORI Distance

Detect

Observe

Recognize

Identify

2.7 mm

69 m (226.37 ft)

27.6 m (90.55 ft)

13.8 m (45.27 ft)

6.9 m (22.63 ft)

12 mm

191.6 m (628.6 ft)

76.64 m (251.44 ft)

38.32 m (125.72 ft)

19.16 m (62.86 ft)

Video

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

DC 12V ±30%

Power Consumption

Max 5.5W (12V DC, IR on)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F); <95% (non-condensation)

Storage Temperature

–30°C to +60°C (–22°F to +140°F); <95% (non-condensation)

Protection Grade

IP67, IK10

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ122 mm × 88.9 mm (φ4.8" × 3.5")

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.62 kg (1.34 lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Outdoor or indoor day-night surveillance where a 5MP Starlight HDCVI dome with motorized zoom and IR coverage is needed.

Before you orderCheck that your XVR firmware is upgraded to V4.001.0000001.0.R.200908 or later to use 5MP 16:9 HDCVI, and confirm stock and lead time before ordering.
01
Clear 5MP Detail

Captures up to 2880 x 1620 video at 25 fps so you can see finer detail across the scene.

02
Flexible Motorized Zoom

The 2.7-12 mm motorized vari-focal lens lets you adjust framing remotely to suit wide or tighter views.

03
Weather and Impact Ready

IP67 and IK10 ratings support reliable outdoor mounting and resistance to physical impact.
