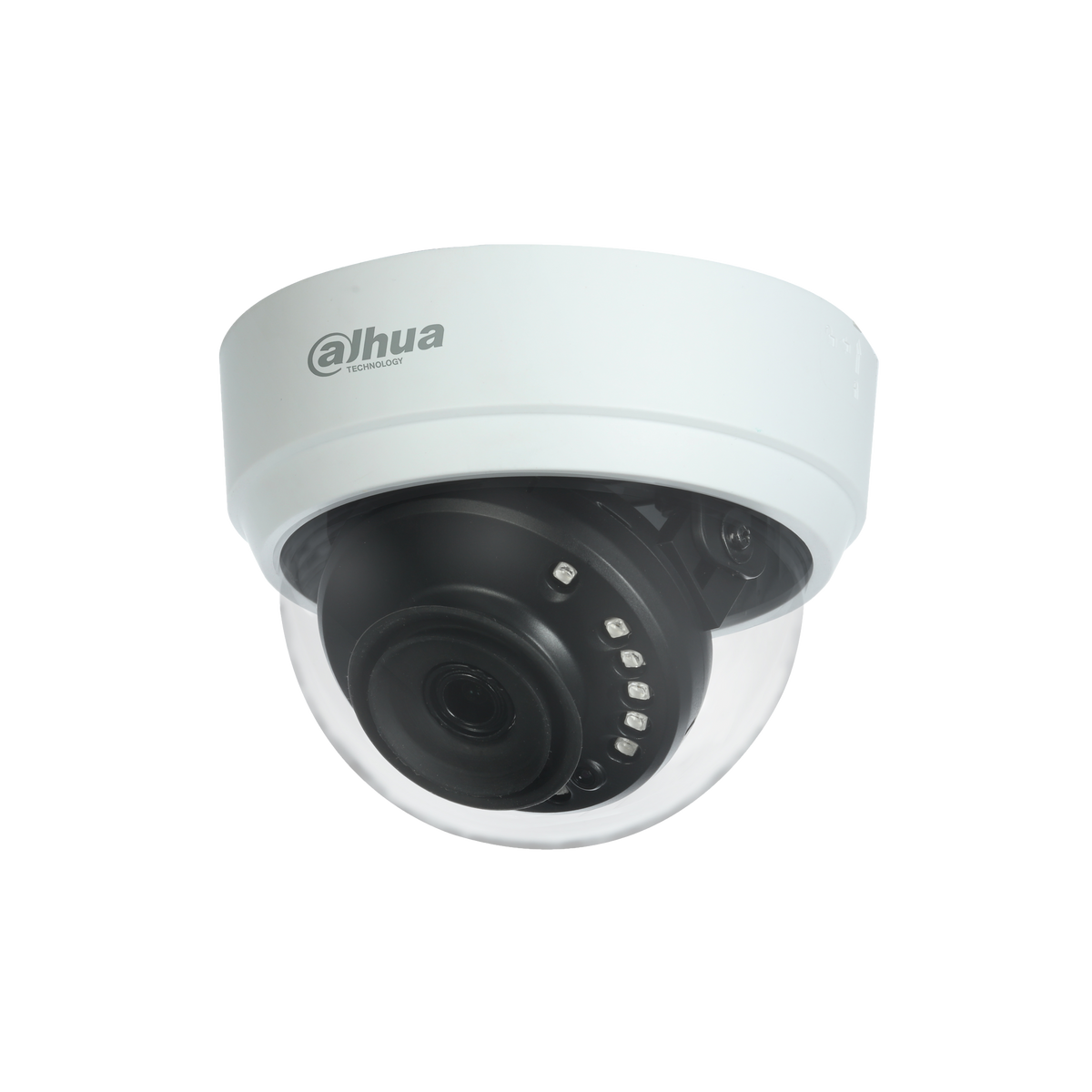

DAHUA HAC-D1A51 5MP HDCVI Fixed IR Dome Camera
DAHUA HAC-D1A51 5MP HDCVI Fixed IR Dome Camera
icctvzone

Dahua HAC-D1A51 5MP HDCVI Fixed IR Dome Camera

In stock
SKU: HAC-D1A51
$43.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

HAC-D1A51

* The parameters and datasheets below can only be applied to A51-S2 series.

* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

> Max. 25 fps@5MP (16:9 video output)

> CVI/CVBS/AHD/TVI switchable

> 3.6 mm fixed lens (2.8 mm optional)

> Max. IR length 20 m, Smart IR

> DC12V



Product Data

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25–1/100000s

NTSC: 1/30–1/100000s

Min. Illumination

0.02 Lux/F2.0, 30IRE, 0 Lux IR on

S/N Ratio

More than 65 dB

Illumination Distance

20 m (66 feet)

Illuminator On/Off Control

Auto;manual

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

M12

Focal Length

3.6mm (2.8mm Optional)

Max Aperture

F2.0

Angle of View

2.8 mm: 125° × 106° × 56°

(diagonal × horizontal × vertical)

3.6 mm: 104° × 88° × 46°

(diagonal x horizontal x vertical)

Focus Control

N/A

Close Focus Distance

2.8 mm: 0.8 m (2.6 ft)

3.6 mm: 1.2 m (3.9 ft)

DORI distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)

3.6mm

80 m

(262.5 ft)

32 m

(105.0 ft)

16 m

(52.5 ft)

8 m

(26.2 ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° – 355°

Tilt: 0° – 75°

Rotation: 0° – 355°

Video

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)

Frame Rate

CVI:

PAL:5M@25 fps; 4M@25fps; 1080P@25fps

NTSC:5M@25 fps; 4M@30fps; 1080P@30fps

AHD:

PAL:4M@25 fps;

NTSC:4M@30 fps;

TVI:

PAL:4M@25 fps;

NTSC:4M@30 fps;

CVBS:

960H;

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto;manual

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off / On (8 area, rectangle)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Upgrading an existing HDCVI/DVR setup to 5MP coverage in entryways, corridors, and small retail spaces.

Before you orderConfirm your XVR firmware is V4.001.0000001.0.R.200908 or later and that you are ordering the 3.6 mm or optional 2.8 mm lens you need.
01
5MP 16:9 Detail

Captures up to 2880 x 1620 video at 25 fps so faces and plates are easier to review.

02
Smart IR at Night

Built-in IR reaches up to 20 m with Smart IR control to help keep night images evenly lit.

03
Flexible Signal Output

Switchable CVI/CVBS/AHD/TVI output lets the camera match the recorder you already run.
