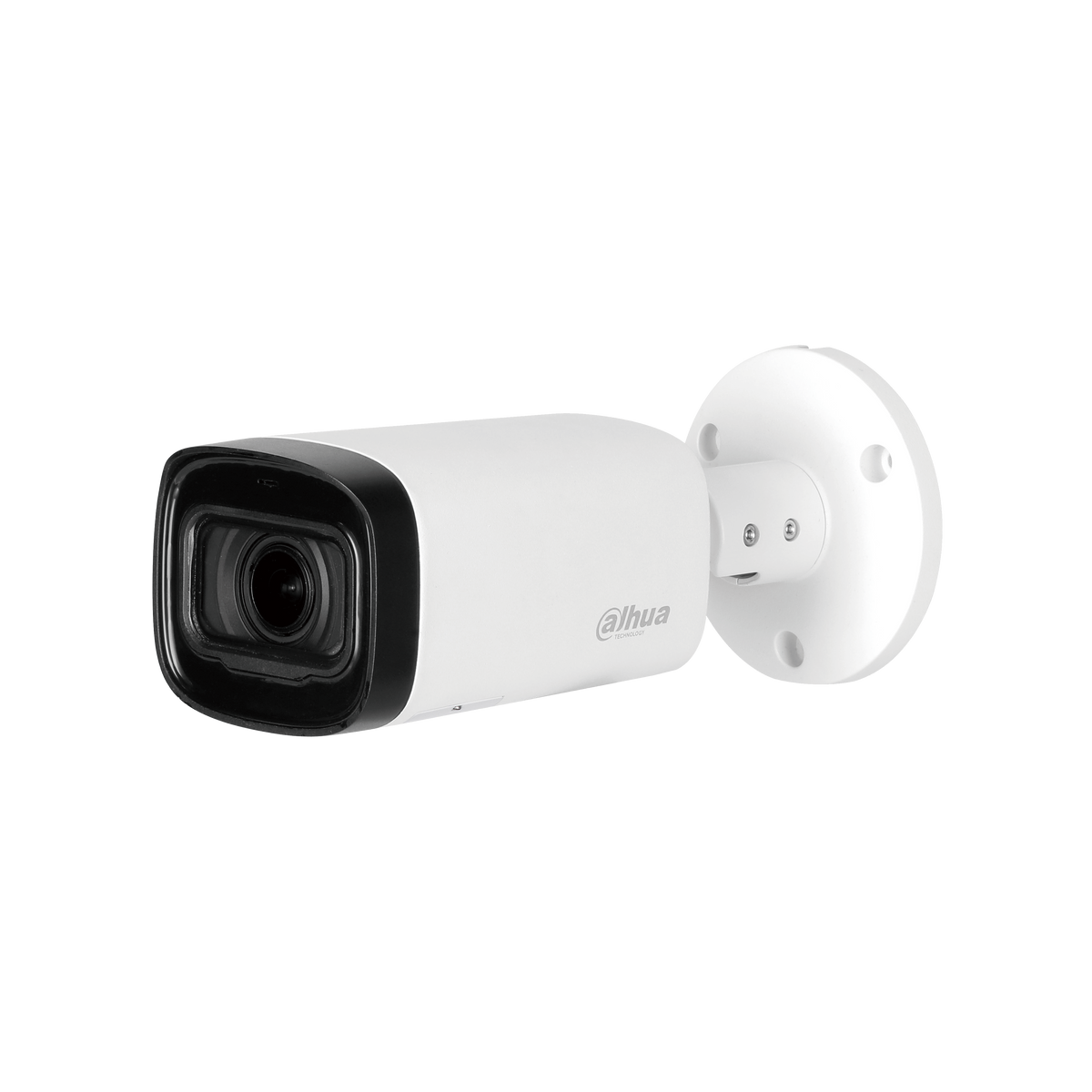

DAHUA HAC-B4A21-VF 2MP HDCVI IR Bullet Camera
DAHUA HAC-B4A21-VF 2MP HDCVI IR Bullet Camera
icctvzone

Dahua HAC-B4A21-VF 2MP HDCVI IR Bullet Camera

In stock
SKU: HAC-B4A21-VF
$81.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

DAHUA HAC-B4A21-VF 2MP HDCVI IR Bullet Camera

> Max. 30 fps@1080p

> CVI/CVBS/AHD/TVI switchable

> 2.7-12 mm vari-focal lens

> Max. IR length 40 m, Smart IR

> IP67,12 VDC

Product Data

Camera

Pixel

2 MP

Image Sensor

2MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.04 lux@F1.7 (Color, 30 IRE)
0.004 lux@F1.7 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Manual Vari-focal

Lens Mount

φ14

Focal Length

2.7–12 mm

Max. Aperture

F1.7

Field of View

H: 102°–32°; V: 54°–18°; D: 121°–37°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

45.5 m

(149.28 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

4.6 m

(15.09 ft)

T

137.9 m

(452.43 ft)

55.2 m

(181.10 ft)

27.6 m

(99.55 ft)

13.8 m

(45.28 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps; 720p@25 fps
NTSC: 1080p@30 fps; 720p@30 fps
TVI:
PAL: 1080p@25 fps; 720p@25 fps
NTSC: 1080p@30 fps; 720p@30 fps
AHD:
PAL: 1080p@25 fps; 720p@25 fps
NTSC: 1080p@30 fps; 720p@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

2D NR

Smart Illumination

Yes

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max. 4.6 W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

209.6 mm × 90.4 mm × 90.4 mm (8.25" × 3.56" × 3.56")

Packaging Dimensions

250 mm × 135 mm × 110 mm (9.84" × 5.31" × 4.33")

Net Weight

0.59 kg (1.30 lb)

Gross Weight

0.75 kg (1.65 lb)

Installation

Wall mount; ceiling mount; horizontal pole mount

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Outdoor perimeter and entrance coverage where a vari-focal 2MP HDCVI bullet camera with 40 m IR is needed.

Before you orderConfirm your recorder supports switchable HDCVI/AHD/TVI/CVBS at 1080p and that a 12 VDC power supply is available at the mounting point.
01
Flexible Vari-Focal View

The 2.7-12 mm manual vari-focal lens lets you adjust the field of view on site to frame gates, driveways or walkways precisely.

02
Long-Range Night Vision

Smart IR reaches up to 40 m, helping keep the scene visible after dark while reducing overexposure on nearby subjects.

03
Multi-Format Output

CVI, CVBS, AHD and TVI are switchable, so the camera can match a compatible recorder without swapping the unit.
