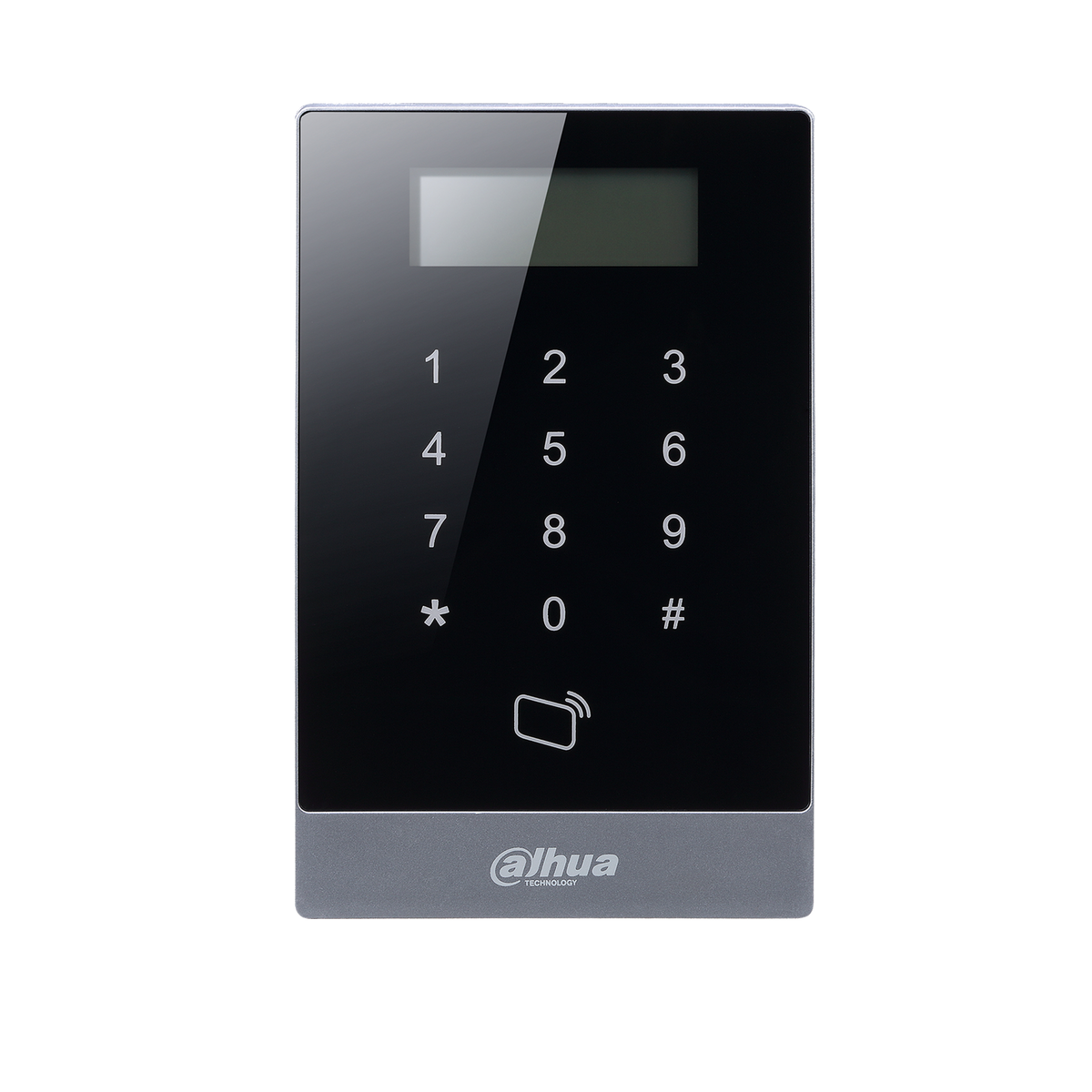

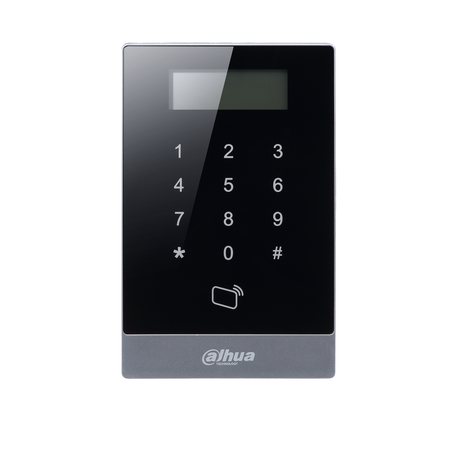

Dahua ASI1201A/ASI1201A-D RFID Standalone Access Control Keypad

In stock
SKU: ASI1201A/ASI1201A-D
$96.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

ASI1201A/ASI1201A-D

RFID Standalone

> Touch keyboard and LCD display
> Support 30,000 valid cards & 150,000 records
> Support multiple cards(default IC card) (“-D” means ID EM card)
> Support card, password and combination
> TCP/IP to PC
> Wiegand or RS-485 interface to reader
> Door time out alarm, intrusion alarm, duress alarm and tamper alarm
> Anti-pass back, multi-card open
> Software attendance
> Support 128 efficient time and holiday schedules
> Watch dog function ensure device free from halting




Product Data

System

Main Processor

32 Bit

Memory

16M

Input/Output Ports

Input

Door sensor x 1, Exit button x 1, Alarm input x 1

Output

Relay :Door lock × 1

TTL: Bell× 1, Alarm×2

Reader

Reader x 1

Card Read

Read Format

13.56MHz(Mifare)/125KHz(“-D” EM, Optional)

Read Range

3-8cm (max.)

Response Time

<0.1s

Capacity

Cardholders

30,000

Events

150,000

Function

User Management

General, VIP, Guest, Patrol, Block list, Duress

Alarm Function

Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm

Period Setting

Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods

Interface

To PC

RJ45(10/100M)

To Reader

Wiegand/ RS485

Genreal

RTC

Yes

Voice Prompt

No

Beep Tone

Buzzer

Keyboard

Sensitive touch keypad with blue backlight

Power Supply

9-15DC/200mA

Working Environment

-5°C~+55°C

Working Humidity

≤95%

Dimension(W×D×H)

97mm*16mm *150mm

Weight

0.3Kg

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Small-to-mid sized offices and sites needing standalone RFID door access with time attendance and alarm reporting.

Before you orderConfirm whether your site uses default IC (13.56MHz Mifare) or the -D ID EM (125KHz) card format, and check current lead time before ordering.
01
Large Card Capacity

Stores up to 30,000 valid cards and 150,000 records, so growing teams and busy doors stay covered without frequent housekeeping.

02
Flexible Credential Modes

Supports card, password, or combined verification, letting you match entry security to each door and user group.

03
Built-In Alarm Logic

Door timeout, intrusion, duress and tamper alarms help you react quickly to forced or held-open doors.
