Home » Dahua ASC2202B-D 2 Door Two-way Access Controller

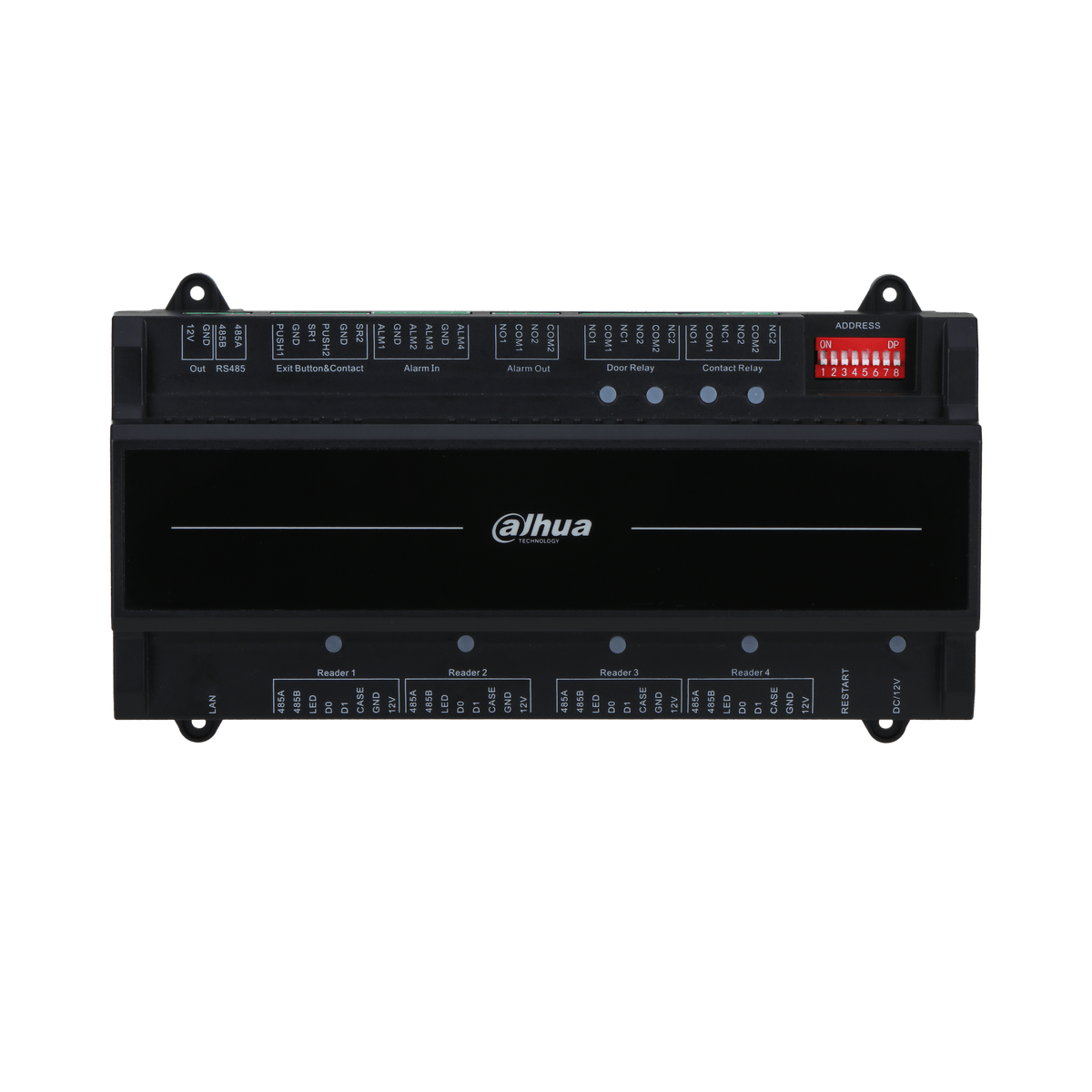

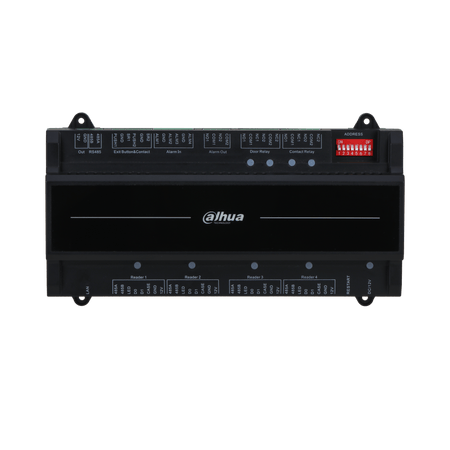

DAHUA ASC2202B-D 2 Door Two-way Access Controller
DAHUA ASC2202B-D 2 Door Two-way Access Controller
icctvzone

Dahua ASC2202B-D 2 Door Two-way Access Controller

In stock
SKU: ASC2202B-D
$141.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

ASC2202B-D

2 Door Two-way Access Controller

> Support TCP/IP communication

> Two dual communication protocols: RS-485 and Wiegand (W26 and W34)

> Holds 100,000 users and stores 500,000 card swiping records

> Support interlock, group combination, anti-passback, remote unlock, and more

> Support card reader tamper alarm, intrusion alarm, door sensor timeout alarm, duress alarm, illegal card exceeding threshold alarm, and incorrect password alarm

> Built-in RTC, support manual time synchronization and auto time synchronization

> Support power-off memory protection and online upgrade

> Support watchdog (a device that protects a system from software or hardware failures)

> Support PoE power supply




Product Data

System

Internet Protocol

IPv4; TCP; UDP

OSDP Protocol

Yes

SDK

Yes

Basic

Product Appearance

Model B slide rail

Buzzer

Yes

Casing Material

PC+ABS

Function

Unlock Mode

Card/remote/password/fingerprint unlock

Period List

128

Holiday Period

128

Network Update

Yes

First-Card Unlock

Yes

Remote Verification

Yes

Blocklist/Allowlist

Yes

Peripheral Card Reader

4 RS-485 card readers
4 Wiegand card readers

Multi-door Interlock

Yes

Group Combination

Card/password/fingerprint unlock

Real-Time Surveillance

Yes

Multiple Authentication

Yes

User

User (Card) Type

General user, VIP user, patrol user, guest user, blocklist user, and other user

Capacity

User

100,000

Fingerprint

3,000

Card

100,000

Record Capacity

500,000

Port

RS-485 Port

5 RS-485 ports

Wiegand

4 Wiegand ports

Network

One 10/100 Mbps network port

Alarm Input

4 (digital quantity)

Alarm Output

4 (relay)

Alarm Linkage

Yes

Exit Button

2

Door Status Detection

2

Lock Control

2, normally open by default

Alarm

Anti-Passback

Yes

Tamper

Yes

Duress

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

Duress Fingerprint

Yes

General

Power Supply

Standard POE (an additional power supply for the door lock is needed);

DC 12V (support supplying power to the door lock)

IP Rating

IP20, IK04

Power Consumption

Standby 1.0W, working 13.0W (Standard PoE; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A);

Standby 0.8W, working 41.6W (DC 12V; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A; rated voltage of the door lock power supply is 12V, and the total max. rated current is 2A)

Product Dimensions

210 mm × 106 mm × 50 mm (8.27”× 4.17”× 1.97”)

Packaging Dimensions

Packaging box: 255 mm × 166 mm × 87 mm (10.04”× 6.54”× 3.43”)
Protective box: 508 mm × 265 mm × 190 mm (20.0”× 10.43”× 7.48”)

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Operating Humidity

5%RH–90%RH (no condensation)

Operating Altitude

0 m–1300 m (0 ft–4265.10 ft)

Operating Environment

Indoor

Gross Weight

0.6 kg (1.33 lb)

Installation

Surface/guide rail mount

Certification

CE/FCC/UL

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Two-door access control for offices, small facilities and sites that need card, password or remote unlock with interlock and anti-passback.

Before you orderConfirm your card readers use RS-485 or Wiegand (W26/W34) and that your PoE switch or power source meets the controller's requirements before ordering.
01
Two-Door Control

Manages two doors with two-way access, supporting interlock, group combination and anti-passback for tighter entry discipline.

02
Large User Capacity

Stores up to 100,000 users and 500,000 card records, so growing sites can add staff without replacing the controller.

03
Flexible Connectivity

Offers TCP/IP communication plus RS-485 and Wiegand reader connections, with PoE power for simpler installation.
