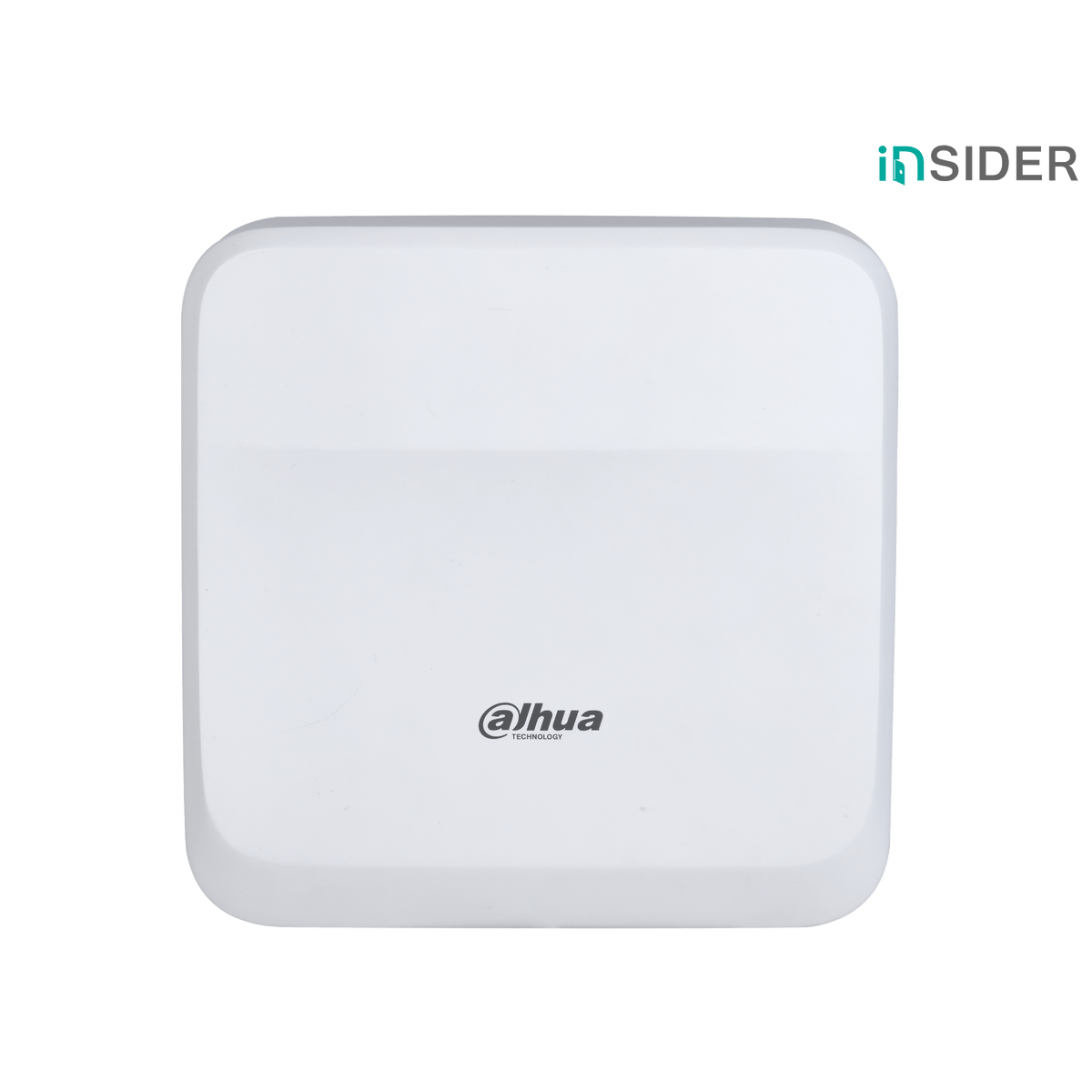

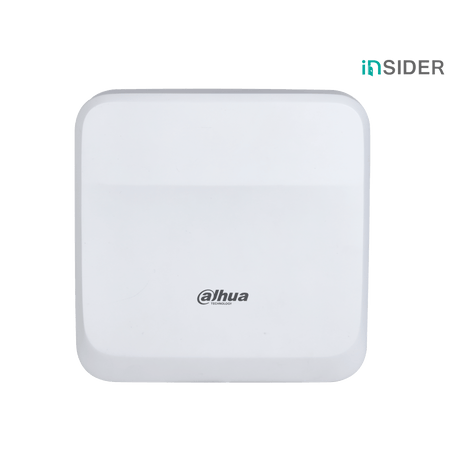

DAHUA ASC3202B Access Controller
DAHUA ASC3202B Access Controller
icctvzone

Dahua ASC3202B Access Controller with Web Server & PoE

In stock
SKU: ASC3202B
$285.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

ASC3202B

> Bulit-in Web server, features main and sub control modes.

> The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms.

> Supports 1000 users, 3000 fingerprints, and 300,000 records.

> Accesses card readers through Wiegand and RS-485 protocols.

> Supports TCP and IP connection, and standard PoE.

> Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA.

> Supports configuring the hardware I/O port and exporting configuration diagrams.

> Retains stored data even while powered off.


Product Data

System

Main Processor

Embedded processor

Internet Protocol

P2P; IPv4; DNS; DDNS; TCP; UDP

Interoperability

ONVIF; CGI

SDK and API

Yes

Basic

Product Type

Controller

Buzzer

Yes

Casing Material

PC + ABS

Function

Unlock Mode

Card; remote; password; fingerprint; combination unlock

Period List

128 periods

Holiday Period

128 periods

Network Update

Yes

Blocklist/Allowlist

Yes

Peripheral Card Reader

Supports 2 × RS-485 card readers; 2 × Wiegand card readers

Multi-user Authentication

Yes (Use with platform)

Real-time Monitoring

Yes

Multi-factor Authentication

Yes

Web Configuration

Yes

User

User (Card) Type

General users, patrol users, blocklist users, VIP users, guest users, custom user 1, custom user 2, and other users

Capacity

User Capacity

1000

Fingerprint Capacity

3000

Card Capacity

5000

Record Capacity

300,000

Port

RS-485

3

Wiegand

2 × input

Network Port

1 × RJ-45 10/100 Mbps Ethernet port

Alarm Input

2 (digital quantity)

Alarm Output

2 (digital quantity)

Alarm Linkage

Yes

Exit Button

2

Door Status Detection

2

Lock Control

2

Alarm

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

Duress Fingerprint

Yes

General

Power Supply

Power in: 12V DC or Power over Ethernet IEEE 802.3at Type 2 Class 4

Protection

IK06

Power Consumption

Standby Power (no peripheral devices):

≤2 W

Working Power:

Total power budget if powered by DC: 1700 mA at 12 V for peripheral devices (locks, readers etc.)

Total power budget if powered by PoE: 1200 mA at 12 V for peripheral devices (locks, readers etc.)

Product Dimensions

186.4 mm × 185.8 mm × 58.3mm (7.34" × 7.31" × 2.30") (L × W × H)

Packaging Dimensions

254 mm × 243 mm × 86 mm (10.00" × 9.57" × 3.39") (L × W × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to 131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Operating Environment

Indoor

Gross Weight

0.99 kg (2.18 lb)

Installation

Surface Mount; Guide Rail Mount

Certifications

CE; FCC; UL

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Centralized access control and time attendance across a main controller managing up to 19 sub controllers.

Before you orderConfirm your card readers use Wiegand or RS-485 and that your platform supports the required sub controller count before ordering.
01
Main and Sub Modes

Run a full access control platform or add sub controllers to multiple platforms for flexible site architecture.

02
Ample Credential Capacity

Store up to 1000 users, 3000 fingerprints and 300,000 records so daily traffic stays covered.

03
PoE and Lock Power

Standard PoE simplifies cabling, while 12 VDC output at up to 1000 mA powers the lock directly.
