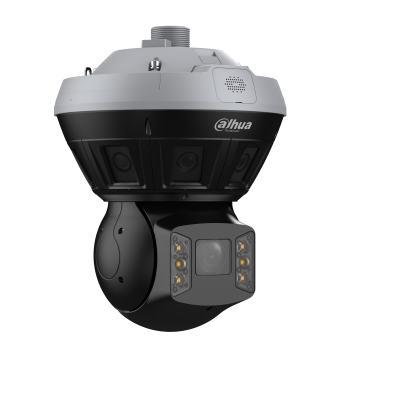

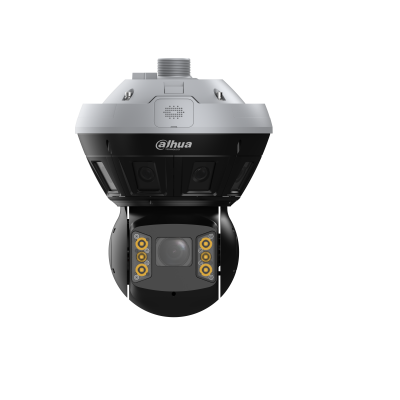

Dahua PSDW8852S-A180-D440-ATC 8MP 180° Panoramic + 4MP 40x PTZ Anti-Corrosion WizMind Network Camera
Key Performance Highlights – Panoramic + PTZ Fusion
- Ultra-Wide 180° Panoramic + 40x Tele PTZ: 4× 2MP (1/1.8") sensors for 8MP panoramic channel (4096×1800) + separate 4MP PTZ channel with 5.2~210 mm optical zoom, offering both situational awareness and long-range detail.
- All-Weather Optical & AI Vision: PTZ channel features GIS (Gyroscope Image Stabilization) and optical defog. Crowd Map (Large-Scale AI Models) delivers accurate crowd/vehicle statistics even in rain and low light.
- Smart Tracking & AR Overlay: Automatic tracking of moving targets; AR Panorama technology allows multiple AR tags (location, alarms, etc.) to be superimposed on live view.
- Dual Mic + Speaker & Extreme Reach: Built-in two-way audio for real-time talk-back. PTZ provides 150 m IR + 100 m warm light illumination. Detect range up to 2,648 m (8,688 ft) on tele end.
- Industrial-Grade Protection: IP67 / IK10 housing, anti-corrosion coating (meets NEMA 4X optional). Operates from –40 °C to +70 °C. Powered by 36 VDC (±50%) or PoE++ (802.3bt).
- Elastic Intelligence: Panoramic channel: vehicle density, boat detection, crowd map. PTZ channel: face detection (6 attributes/8 expressions), video metadata (vehicles + humans), perimeter IVS, and cross-channel coordination.
Camera Specification – Dual Channel
| Image Sensor | Channel 1 (Panoramic): 1/1.8" CMOS (×4 sensors) Channel 2 (PTZ): 1/1.8" CMOS |
|---|---|
| Max. Resolution | Panoramic: 4096 (H) × 1800 (V) – 8MP Ultra-HD PTZ: 2688 (H) × 1520 (V) – 4MP |
| ROM / RAM | Panoramic: 8 GB ROM / 4 GB RAM | PTZ: 4 GB ROM / 2 GB RAM (Independent dual AI architectures) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s – 1/100,000 s |
| Min. Illumination |
Panoramic: 0.0005 lux@F1.0 (Color, 30 IRE); 0.0001 lux@F1.0 (B/W) PTZ: 0.001 lux@F1.6 (Color); 0.0001 lux@F1.6 (B/W); 0 lux (IR/Warm light on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Panoramic: N/A PTZ: Up to 150 m (IR) / 100 m (Warm light) – 6× multi-core (IR+Warm) LEDs |
| Illuminator Control | Auto; Manual; Zoomprio |
| Angle Adjustment (PTZ) | Pan: 0°–360° endless; Tilt: –10°–180°, auto flip 180°; Built-in gradienter |
Lens & DORI Optics
| Lens Type / Mount | Panoramic: Fixed-focal (M16 mount, 2.8 mm, F1.0) PTZ: Vari-focal (module mount, 5.2–210 mm, F1.6–F5.0) |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | Panoramic: H: 180°; V: 103° PTZ: H: 60.8°–2.8°; V: 35.9°–1.7°; D: 67.7°–3.3° |
|||||||||||||||
| Close Focus Distance | Panoramic: 1.4 m (4.59 ft) PTZ: 0.5 m (1.64 ft) |
|||||||||||||||
| DORI Distance (EN-62676-4) |
|
Elite Intelligence (WizMind – Dual Channel)
| Panoramic Channel AI |
Perimeter protection: tripwire, intrusion, parking detection Crowd Map (Large-Scale AI Models): global crowd density, area crowd density, people counting, crowd status Vehicle density: parking upper limit, traffic congestion, vehicle status alarm Boat detection |
|---|---|
| PTZ Channel AI |
IVS perimeter: tripwire, intrusion, parking, virtual fence, fast moving, abandoned/missing object, crowd gathering, loitering Face detection: 6 attributes / 8 expressions; snapshot optimization; face angle filter Video metadata: motor vehicle (6 attributes), non-motor vehicle (6 attributes), face (6 attributes), human body (8 attributes) |
| Smart Search & Coordination | Works with Smart NVR for refined intelligent search, event extraction. Panoramic + PTZ linkage (auto tracking of targets detected by panoramic). |
Video & Audio Specifications
| Compression / Smart Codec | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) | Smart H.264+ / Smart H.265+ |
|---|---|
| Frame Rate (Max per stream) |
Panoramic: Main: 4096×1800@30fps; Sub: 1024×452@30fps; Third: 1920×832@30fps PTZ: Main: 2688×1520@30fps; Sub: 704×480@30fps; Third: 1920×1080@30fps *Total encoding capacity shared across streams. |
| Streaming Capability | 3 streams per channel (independent configuration) |
| Bit Rate Control / Bit Rate | VBR/CBR. Panoramic H.264: 64–16384 kbps; H.265: 25–15831 kbps. PTZ H.264: 32–16384 kbps; H.265: 12–11008 kbps. |
| WDR / Image Enhancements | Both channels: 120 dB True WDR | BLC, HLC, 3D NR, ROI (Panoramic 4 areas, PTZ 8 areas), Defog (PTZ optical defog only), EIS (PTZ: GIS gyro stabilization) |
| Privacy Masking | Panoramic: 4 rectangular areas; PTZ: 24 areas (8 per preset, polygon shape) |
| Audio | Built-in dual mic + speaker | Audio compression: PCM, G.711a, G.711Mu, G.726, G.723 | 2 audio inputs (terminal), 1 output |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100/1000 Base-T) – Gigabit |
|---|---|
| Protocols & API | IPv4/v6, HTTP, TCP, UDP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, SNMP, P2P, etc. | SDK, CGI, ONVIF (Profile S/G/T) |
| Cybersecurity | WSSE, account lockout, trusted execution/boot/upgrade, X.509 cert, 802.1x, HTTPS, IP/MAC filtering, security logs, syslog |
| Local Storage & Management | Micro SD card (max 1 TB); FTP/SFTP/NAS/SMB; DSS Pro management |
| User / Bandwidth | 20 users (total bandwidth 400 Mbps) |
Physical I/O & PTZ Control
| Alarm I/O | 3 inputs (wet contact, 5mA 3–5VDC) + 2 outputs (dry, 1000mA 30VDC / 500mA 50VAC) |
|---|---|
| Audio I/O | 2 line-in (terminal) + 1 line-out (terminal) |
| RS-485 / Analog Output | 1 RS-485 (1200–115200 bps) + 1 CVBS (BNC) |
| Power Output | 12 VDC output, max 165 mA (peak 700 mA) |
| PTZ Functions | 300 presets, 8 tours (up to 32 presets each), 5 patterns, 5 scans, idle motion (tour/preset/pattern/scan), power-off memory, manual speed: pan 0–360°/s, tilt 0–150°/s |
Power, Environment & Protection
| Power Supply | 36 VDC (±50%) independent port OR PoE++ (802.3bt) |
|---|---|
| Power Consumption |
Basic: 26.4 W (36 VDC) Max (full load + heater + PTZ + LED): 67.8 W (36 VDC) |
| Operating Temperature / Humidity | –40 °C to +70 °C (–40 °F to +158 °F) | ≤95% RH non-condensing |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal resistant), Anti-corrosion coating (standard moderate protection – suitable for coastal areas >2km and acid rain environments; optional UL 50E NEMA Type 4X) |
| Certifications | CE-LVD (EN62368-1), CE-EMC, UL 50E NEMA 4X (optional) |
Physical Structure
| Casing Material | Metal + plastic (anti-corrosion coated) |
|---|---|
| Product Dimensions | Φ280.0 mm × 368.0 mm (Φ11.02" × 14.49") |
| Net Weight / Gross Weight | 8.8 kg (19.40 lb) / 12.2 kg (26.90 lb) |
| AR Functionality | Yes – AR Panorama technology, supports overlay of various AR tags (alarms, location markers, etc.) on panoramic view |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Wide-area perimeter and open-site surveillance where one unit must combine 180° situational awareness with long-range 40x PTZ detail in corrosive or harsh outdoor environments.
Before you orderConfirm your recorder supports the panoramic plus PTZ channel count and that a 36 VDC or PoE++ 802.3bt power source is available on site, then check current lead time with ICCTVZONE.
01
Panoramic Plus PTZ Fusion
Four sensors deliver an 8MP 180° panoramic view while a separate 4MP PTZ channel with 5.2–210 mm zoom brings distant detail into the same live picture.
02
Built for Harsh Sites
An IP67 and IK10 anti-corrosion housing rated from –40 °C to +70 °C keeps the camera working through weather and temperature extremes.
03
AI Tracking and AR Overlay
Automatic target tracking, crowd mapping and AR Panorama tags help operators follow incidents and read the scene without switching views.
