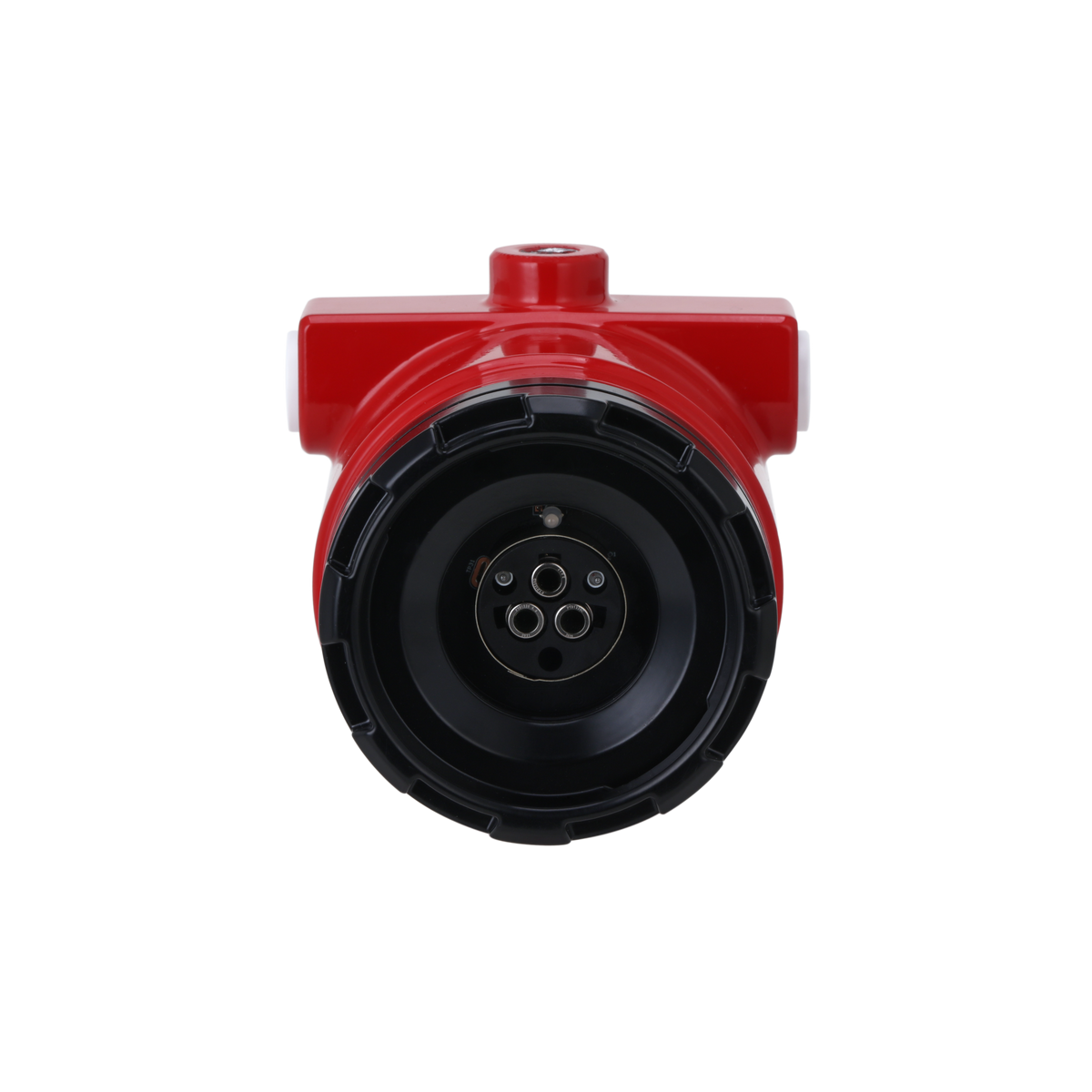

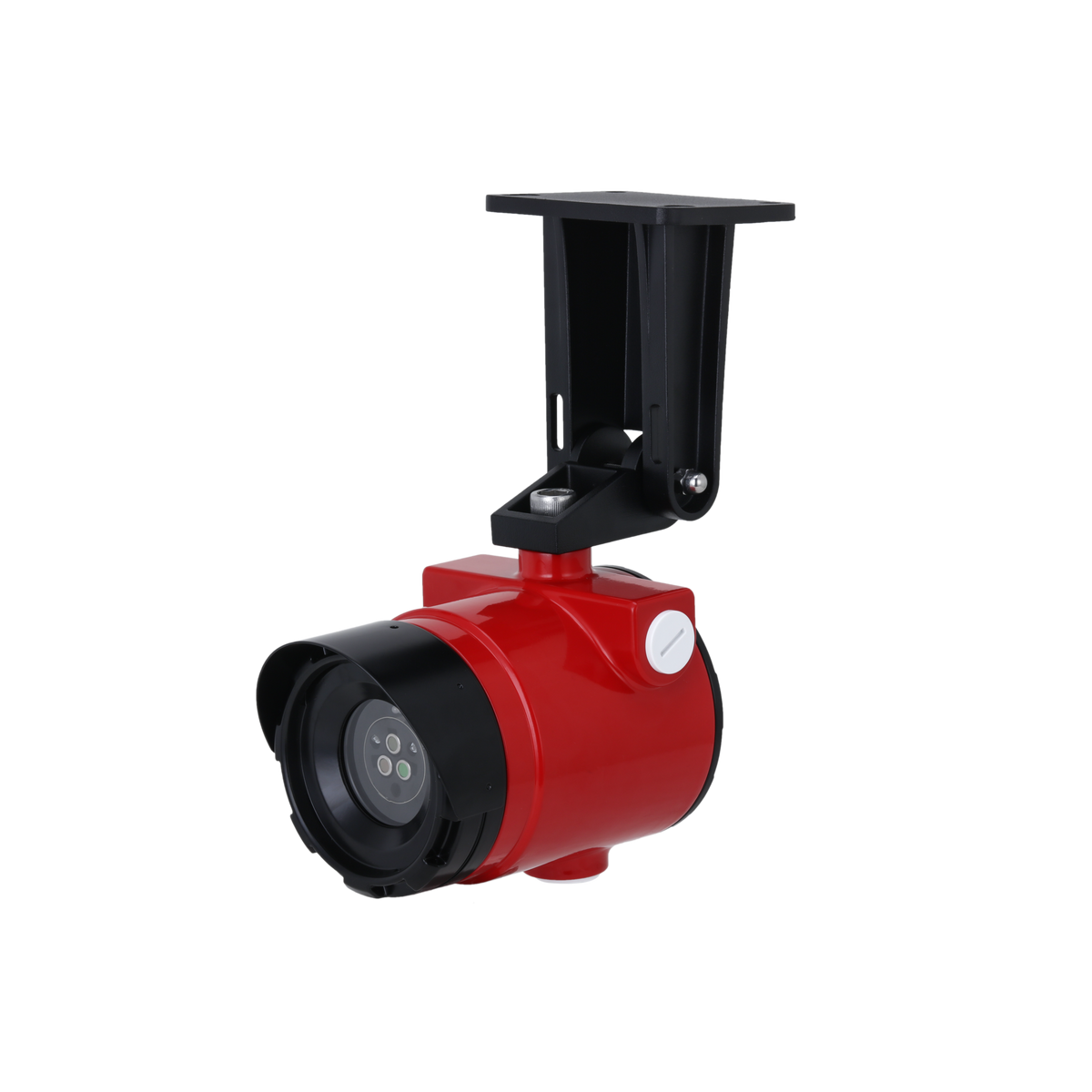

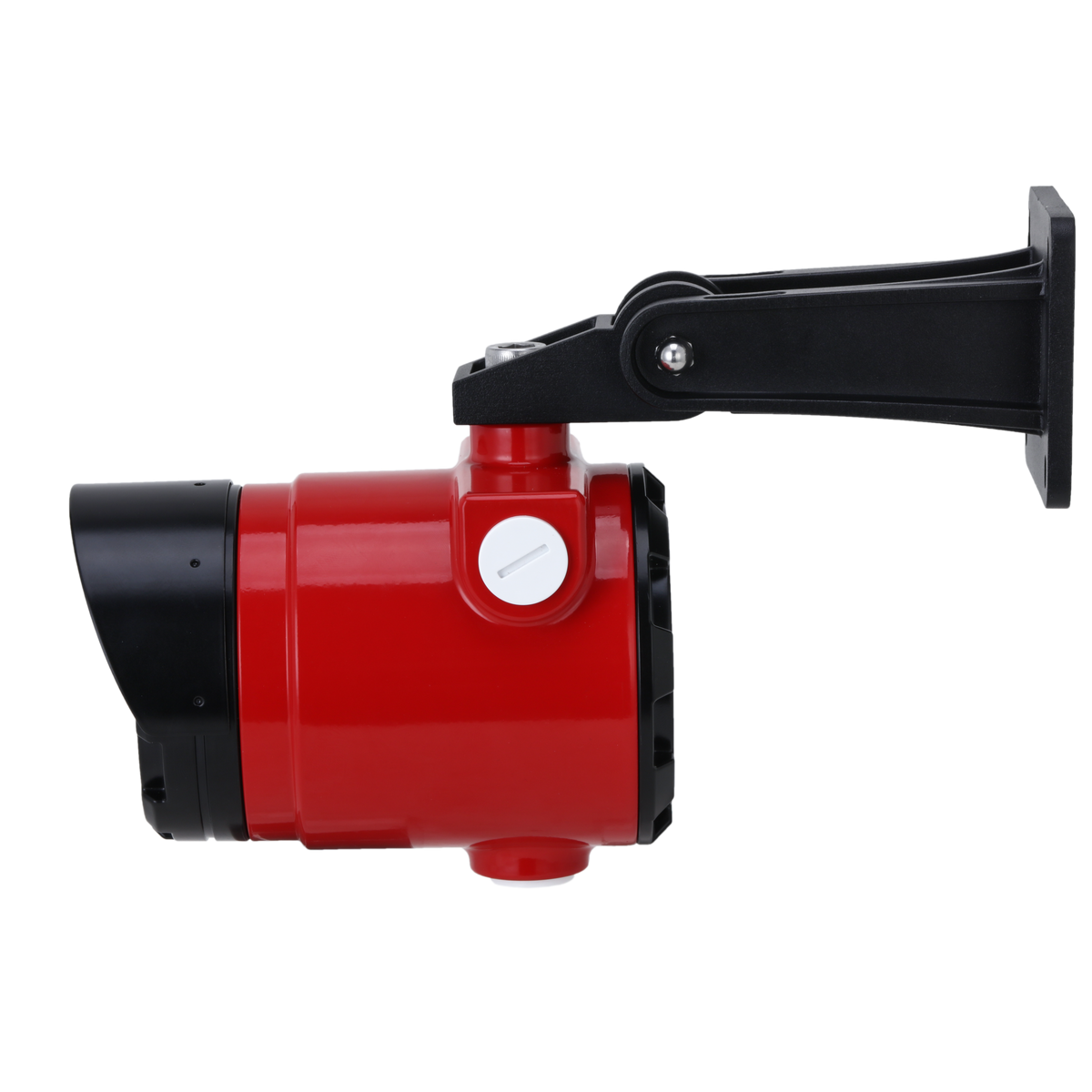

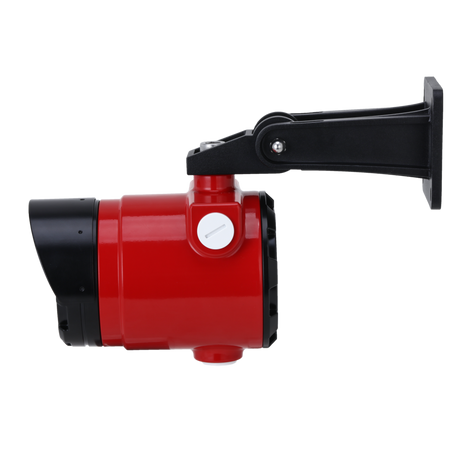

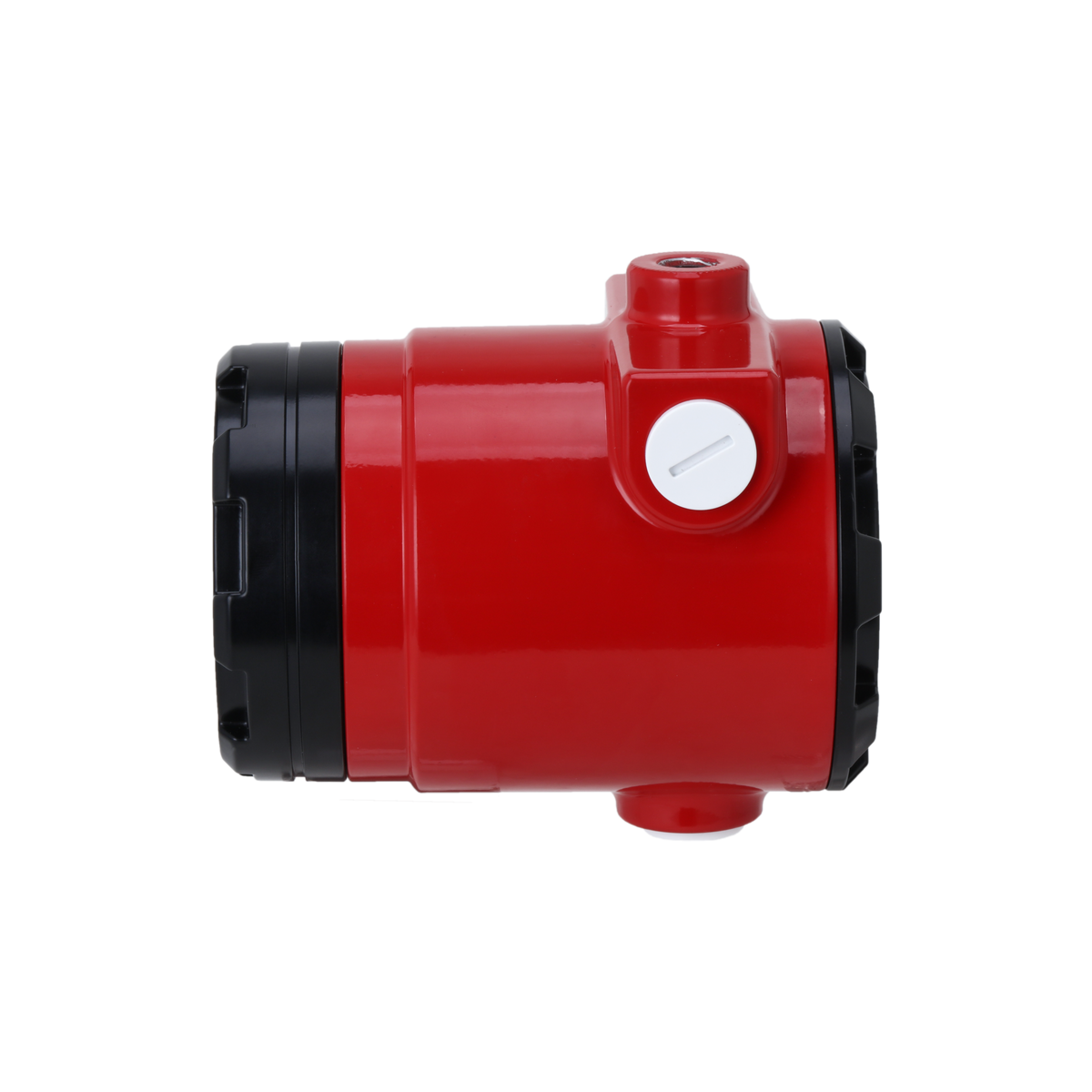

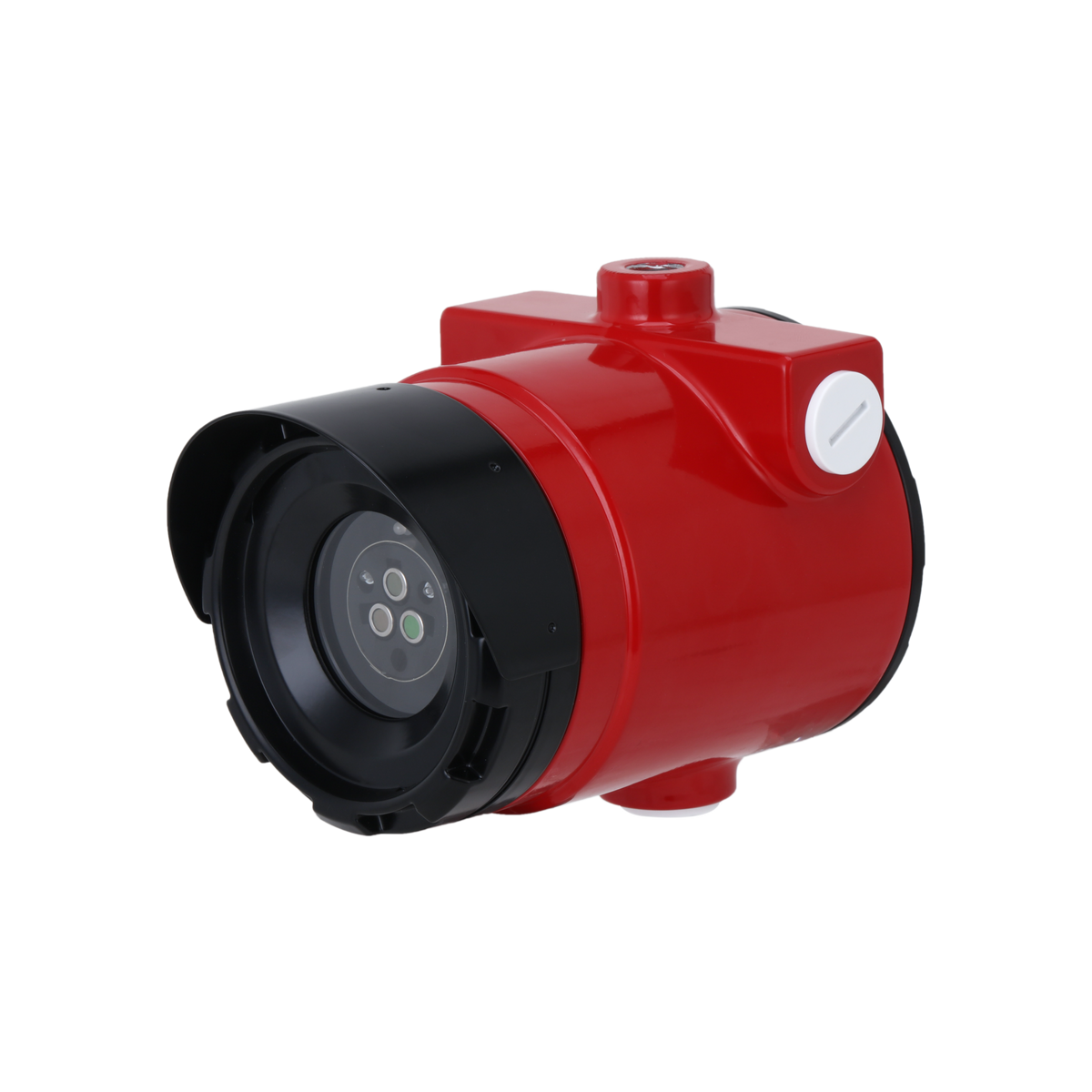

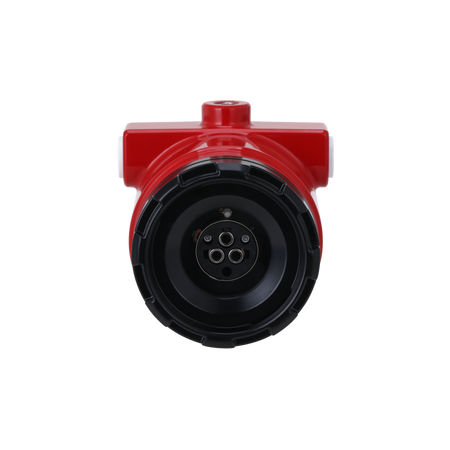

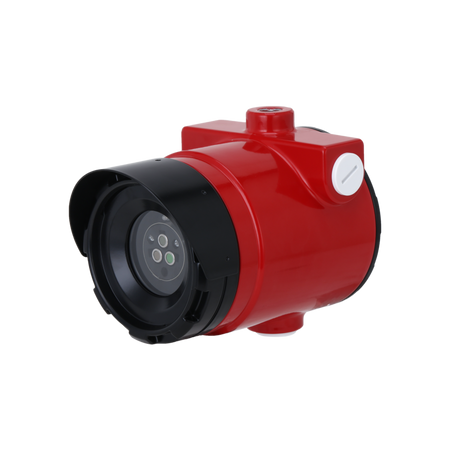

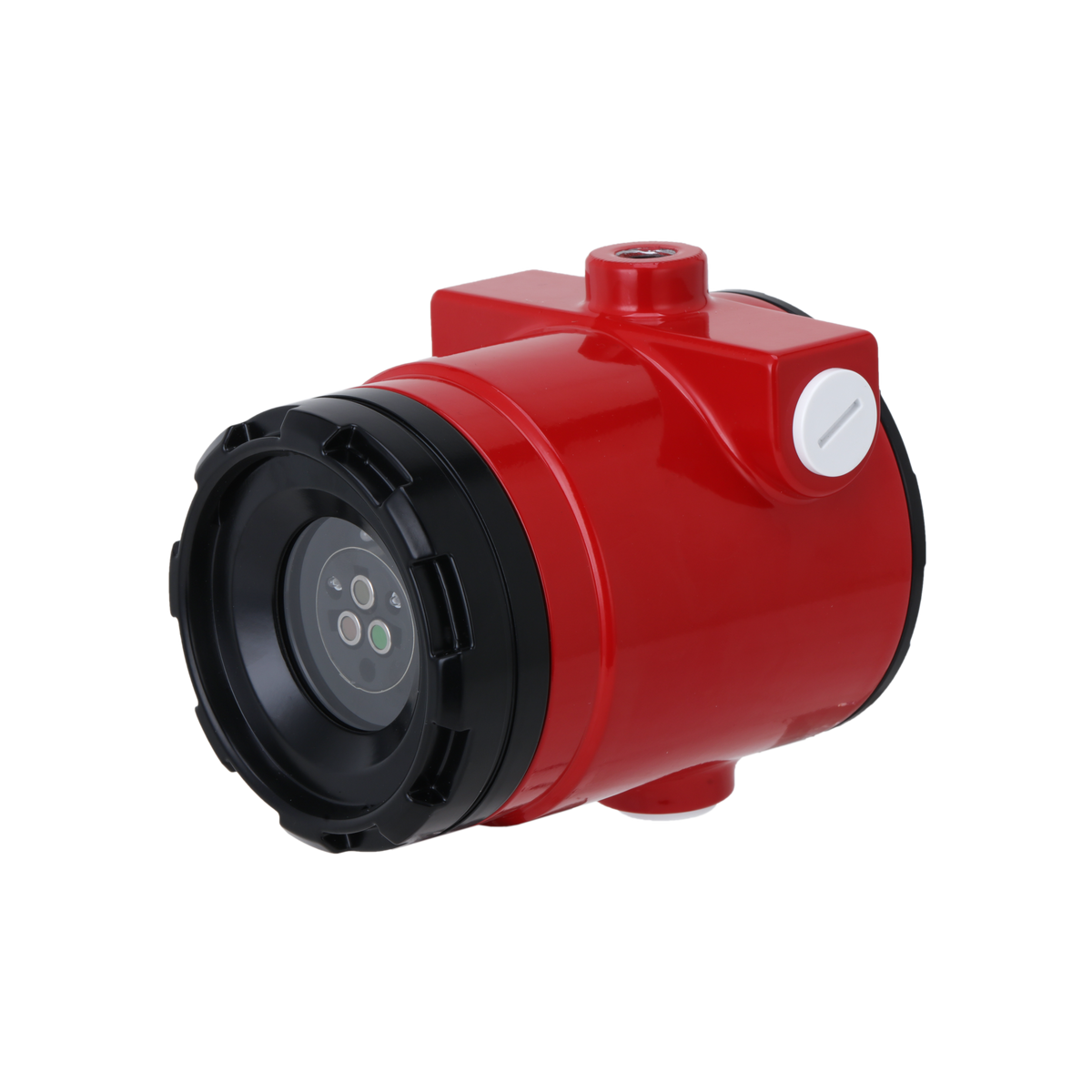

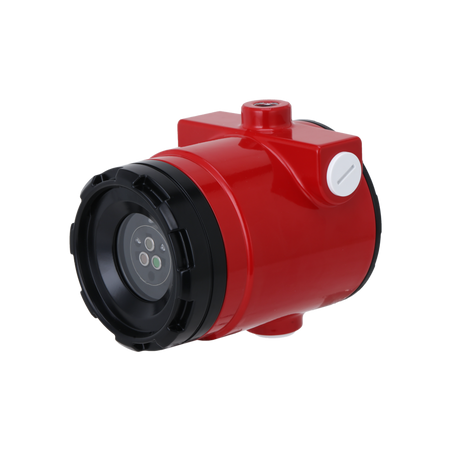

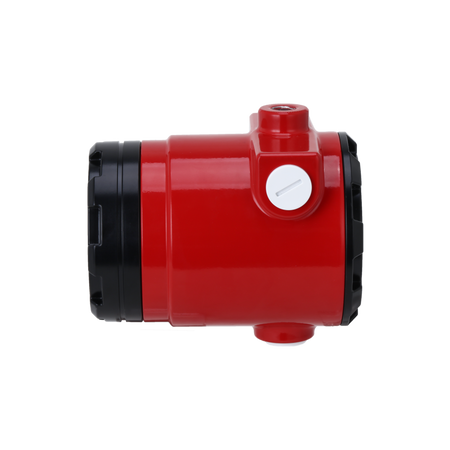

Dahua HY-IF43DA-EX 3-Waveband Explosion-Proof IR Flame Detector
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
HY-IF43DA-EX
Point-type Infrared Flame Detector
> Multiple output interfaces: RS 485 and relay output
> Combine the power wire with the signal wire through two wire
> Window defogging and defrosting function
> Sensor optical path self-test algorithm
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Type |
3-waveband explosion-proof type |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Spectrum Range |
3.8 μm; 4.3 μm; 5.0 μm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensitivity |
5-level settable 3-level by default, corresponding to Ⅰ-level in GB 15631-2008 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Response Time |
＜ 10 s (alarm delay: 0–30 s settable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Maximum Detection Distance |
Ethanol: 45 m@0.3 m× 0.3 m (147.64 ft@0.98 ft× 0.98 ft) Heptane: 55 m@0.3 m× 0.3 m (180.45 ft@0.98 ft× 0.98 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Voltage |
DC24V (16V–28V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Current |
Monitoring current: ＜ 70mA Alarm current:＜ 80mA Defrost: ＜ 300mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator |
Alarm: Red indicator steady on Fault: Red indicator flashes Monitoring: Green indicator steady on |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Methods |
RS485 Two-wire 4–20mA current-loop output Three sets of relay outputs: Fire relays, fault relays and auxiliary relays |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operation Environment |
Working temperature: –25°C to +75°C (–13°F to +167°F) Relative humidity: ≤95% (RH), non-condensing (40°C ± 2°C )(104°F ± 35.6°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
146 mm × 123 mm × 133 mm (5.75" × 4.84" × 5.24") 330 mm × 231 mm × 183 mm (12.99" × 9.09" × 7.20")(with package) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
1.55 kg (3.42 lb) (without installation bracket) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Explosion-proof Mark |
ExdⅡC T6 Gb/ExtDA21 IP66 T80°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Standard |
GB15631-2008; GB3836.1-2010; GB3836.2-2010; GBT 4208-2017; GB12476.1-2013 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |

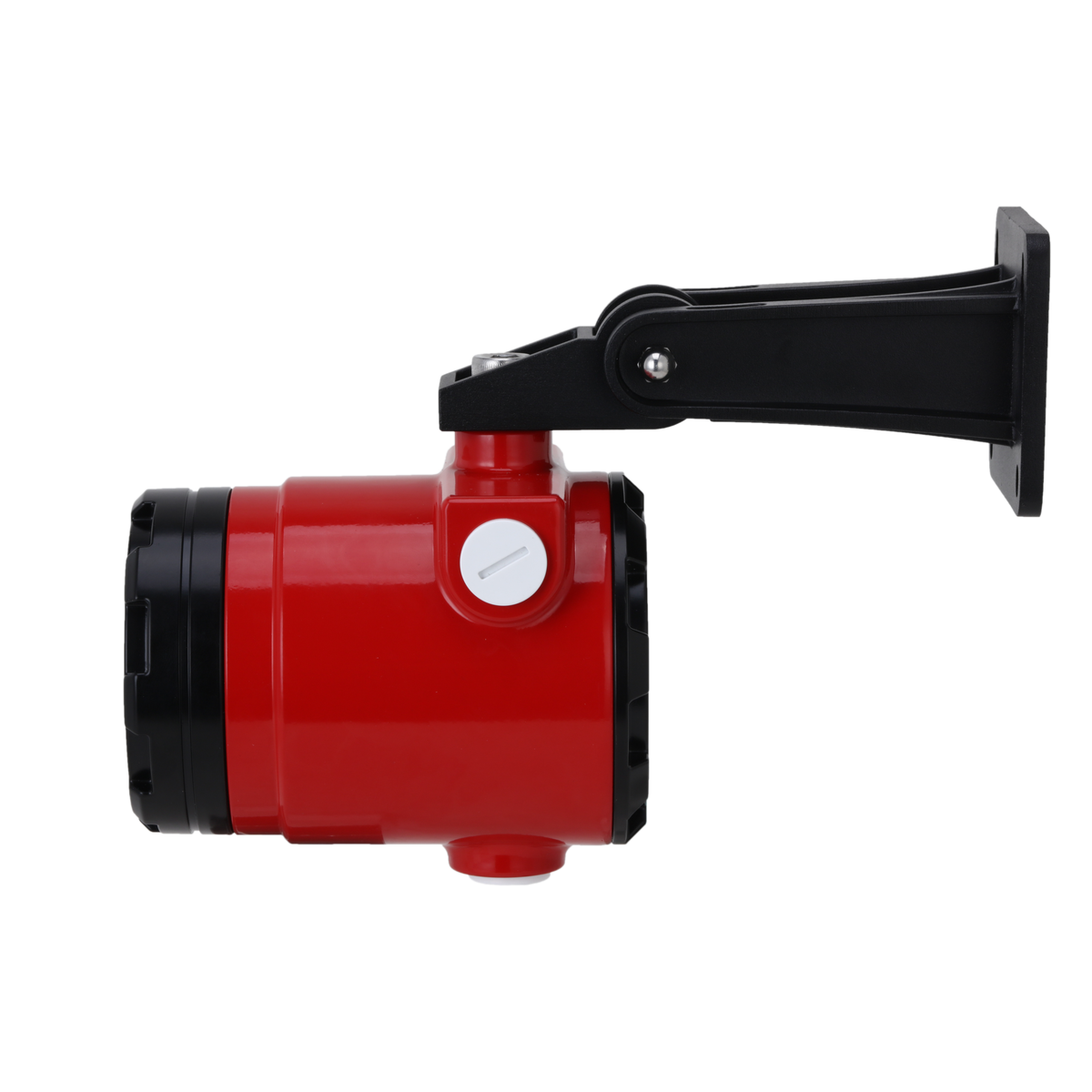

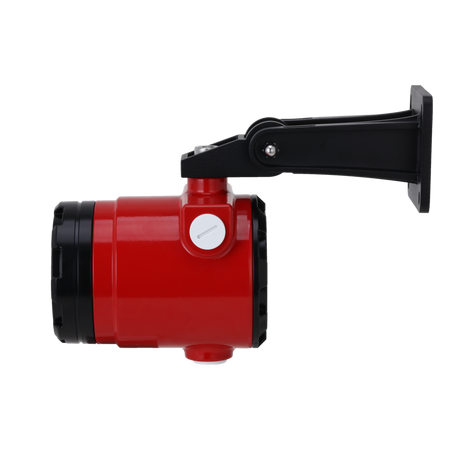

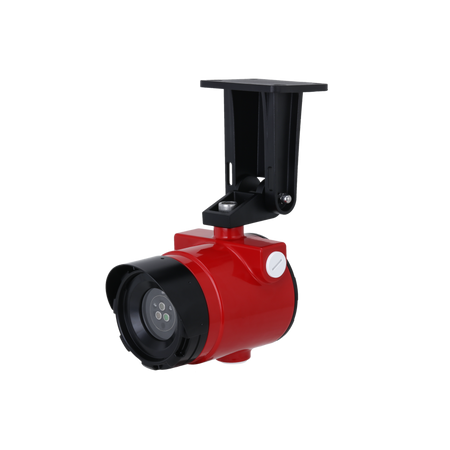

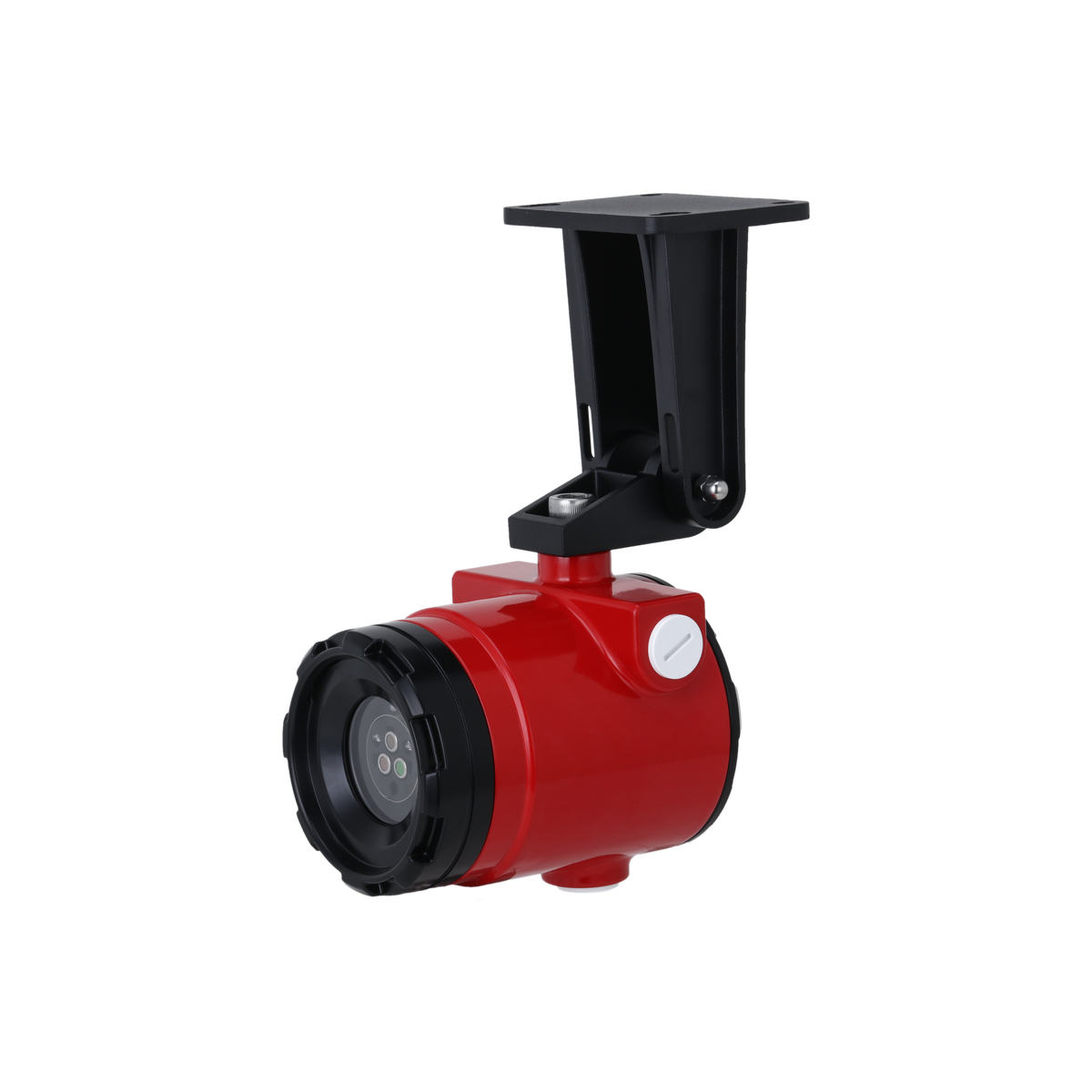

Ceiling-mounted installation or wall-mounted installation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Explosion-proof flame detection in industrial areas where fast infrared alarm response and multiple output interfaces are required.
Three infrared wavebands support flame recognition with strong anti-interference behavior for demanding industrial environments.
RS485, two-wire 4-20mA current loop and three relay outputs let the detector integrate with different fire alarm and control setups.
Window defogging and defrosting plus a wide -25°C to +75°C range help maintain monitoring in tough conditions.
