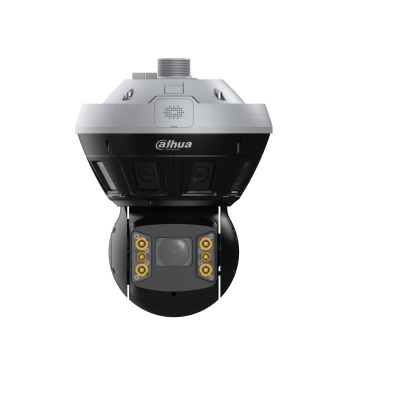

Dahua PSDW81652S-A360-D440-ATC 16MP Multi‑Sensor 360° Panoramic PTZ Anti‑corrosion Mini Hubble WizMind Network Camera – 40x Zoom, AR Panorama, GIS
Ultimate 360° Panoramic PTZ – Unmatched Coverage & Intelligent Tracking
- 16MP Panoramic Channel: 8 × 1/1.8" CMOS sensors deliver seamless 360° horizontal and 103° vertical FOV at 8192×1800 resolution. Ultra‑bright F1.0 aperture (0.0005 lux color).
- 4MP PTZ Channel with 40x Optical Zoom: 5.2‑210mm motorized zoom (F1.6‑F5.0). Incredible telephoto DORI: detection up to 2,648m (8,688 ft), recognition up to 530m.
- Xinghan Vision Models – Crowd Map: Enhances crowd statistics accuracy by day/night and in rain. Supports global/area crowd density, people counting, and crowd status alarms.
- Smart Tracking & AR Panorama: PTZ automatically tracks moving targets; overlay AR tags (text, icons, real-time data) on panoramic view for enhanced situational awareness.
- GIS Gyroscope Image Stabilization & Optical Defog: Eliminates vibration‑induced blur; optical defog ensures clear images in haze, fog, or rain.
- Built‑in Dual Mic & Dual Speaker: Secure real‑time two‑way talk with high‑power audio alarm broadcast.
- Professional Anti‑corrosion (NEMA 4X Optional): IP67 weatherproof, IK10 vandal‑resistant, anti‑corrosion coating. Wide temperature range -40°C to +70°C (–40°F to +158°F).
- Flexible Power Options: 36 VDC (±50%) or PoE++ (802.3bt) with dual power backup.
Camera Specification
| Image Sensor | Ch1 (Panoramic): 8 × 1/1.8" CMOS Ch2 (PTZ): 1/1.8" CMOS |
|---|---|
| Max. Resolution | Ch1: 8192 × 1800 (16MP) Ch2: 2688 × 1520 (4MP) |
| ROM / RAM | Ch1: 8 GB / 4 GB Ch2: 4 GB / 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
Ch1: 0.0005 lux @ F1.0 (Color); 0.0001 lux (B/W) Ch2: 0.001 lux @ F1.6 (Color); 0.0001 lux (B/W); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type (PTZ) | IR up to 150 m, warm light up to 100 m (6 multi‑core IR+warm LEDs); Zoomprio control |
| Angle Adjustment (PTZ) | Pan: 0°–360° endless; Tilt: -10° to 180° (auto flip 180°) |
Lens & DORI Optics
| Lens Type | Ch1: Fixed-focal (2.8mm, F1.0) – 360° panoramic Ch2: Motorized vari-focal (5.2 mm–210 mm) – 40x optical zoom |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View |
Ch1: H: 360°, V: 103° Ch2: H: 60.8°–2.8°, V: 35.9°–1.7°, D: 67.7°–3.3° |
|||||||||||||||
| Close Focus Distance | Ch1: 1.4 m (4.59 ft) Ch2: 0.5 m (1.64 ft) |
|||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
Elite Intelligence (WizMind)
Video & Audio Specifications
| AI Functions (Panoramic Channel) | Perimeter protection (tripwire/intrusion/parking), crowd map (large‑scale AI models), vehicle density, boat detection |
|---|---|
| AI Functions (PTZ Channel) | Perimeter protection (tripwire/intrusion/parking/virtual fence/fast moving/abandoned/missing/loitering/gathering), video metadata, face detection (6 attributes + 8 expressions) |
| Vehicle Density (Panoramic) | Vehicle density, parking upper limit, traffic congestion, vehicle status alarm |
| Crowd Distribution Map (Panoramic) | Global crowd density, area crowd density, people counting, crowd status alarm |
| Video Metadata (PTZ) | Motor vehicle (6 attributes), non‑motor vehicle (6 attributes), face (6 attributes), human body (8 attributes) |
| Smart Search & AcuPick | Works with Smart NVR for refined intelligent search and event extraction. |
PTZ Specifications
| Video Compression / Smart Codec | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | Smart H.265+ / Smart H.264+ |
|---|---|
| Streaming Capability | 3 streams per channel |
| Video Frame Rate |
Ch1: Main 8192×1800 @ 25/30 fps; Sub 2048×452; Third 3840×832 Ch2: Main 4MP @ 25/30 fps; Sub D1; Third 1080p |
| Bit Rate Control / Range | VBR, CBR | Ch1: H.264 96–32768 kbps, H.265 38–25692 kbps; Ch2: H.264 32–16384 kbps, H.265 12–11008 kbps |
| WDR & Image Enhancements |
Ch1: DWDR Ch2: 120 dB True WDR; BLC; HLC; 3D NR; ROI (8 areas); Defog (optical); GIS |
| Special Features | AR Panorama (overlay tags), Gyroscope Image Stabilization (GIS), Optical Defog, Privacy Masking (panoramic: 4 rectangles; PTZ: 24 polygons per preset) |
| Audio Features |
Built-in Dual Mic + Dual Speaker (two‑way talk) Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723 External: 2‑ch terminal input, 1‑ch terminal output |
| Pan/Tilt Range | Pan: 0°–360° endless; Tilt: -10° to 180° (auto flip 180°) |
|---|---|
| Manual Control Speed | Pan: 0–360°/s; Tilt: 0–150°/s |
| Preset Speed | Pan: 0–360°/s; Tilt: 0–150°/s |
| Presets / Tour / Pattern / Scan | 300 presets; 8 tours (up to 32 presets each); 5 patterns; 5 scans |
| Power‑off Memory & Idle Motion | Yes; Tour/Preset/Pattern/Scan |
Physical I/O Interfaces
Power, Climate & Protection
| RS-485 | 1 port (1200–115200 bps) |
|---|---|
| Audio I/O | 2‑ch terminal input, 1‑ch terminal output (in addition to built‑in dual mic & dual speaker) |
| Alarm I/O | 3 alarm inputs (wet contact, 5 mA 3–5 VDC) 2 alarm outputs (dry contact, 1000 mA 30 VDC / 500 mA 50 VAC) |
| Analog Output | 1 channel CVBS (BNC) |
| Power Output | 12 VDC, max 165 mA (peak 700 mA) |
| Alarm Events | Extensive list including panoramic events (crowd density, traffic congestion, parking upper limit) and PTZ events (tripwire, intrusion, face detection, metadata, abandoned object, etc.) |
| Power Supply | 36 VDC (±50%), PoE++ (802.3bt); Dual Power Backup | |
|---|---|---|
| Power Consumption | Basic: 26.4 W (36 VDC) Max (WDR + AI + speaker + heater + LED + PTZ operation): 67.8 W (36 VDC) |
|
| Operating Temperature / Humidity | –40 °C to +70 °C (–40 °F to +158 °F) | ≤95% RH | |
| Storage Temperature / Humidity | –40 °C to +70 °C, ≤95% RH | |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal‑proof), Anti‑corrosion coating | |
| Anti‑corrosion Level | Moderate Protection – NEMA 4X optional (UL 50E). Ideal for coastal areas (≥2 km from sea) and acid rain regions. |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | Φ280.0 mm × 368.0 mm (Φ11.02" × 14.49") (D × H) |
| Net Weight / Gross Weight | 8.8 kg (19.40 lb) / 12.2 kg (26.90 lb) |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Wide-area perimeter and open-site surveillance where one unit must combine 360° panoramic awareness with long-range 40x PTZ tracking in corrosive or harsh outdoor environments.
Before you orderConfirm whether your site will use PoE++ (802.3bt) or 36 VDC power and whether the optional NEMA 4X anti-corrosion rating is required, and verify current lead time before ordering.
01
Dual-Channel Coverage
A 16 MP multi-sensor panoramic channel pairs with a 4 MP 40x zoom PTZ channel so operators see the whole scene and close-up detail from one device.
02
Smart Tracking and AR
Automatic PTZ tracking and AR overlays on the panoramic view help security teams follow moving targets and read situational data at a glance.
03
Harsh-Site Housing
Anti-corrosion coating, IP67 and IK10 ratings, and a -40°C to +70°C range support reliable operation in demanding outdoor locations.
