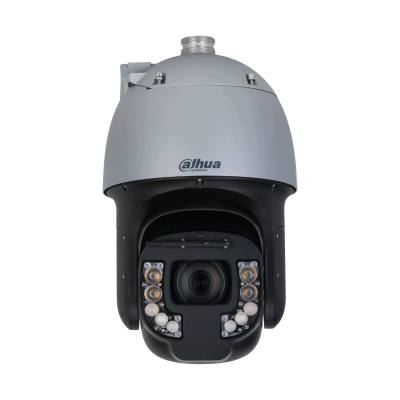

Dahua SD8C848PA1-HNF 8MP 48x Starlight IR Network PTZ Camera

In stock

SKU: SD8C848PA1-HNF

$2,886.00

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

SD8C848PA1-HNF

8MP 48x Starlight IR Network PTZ Camera

> 1/1.8" 8Megapixel STARVIS™ CMOS.

> 48× optical zoom.

> Starlight technology.

> Max. 25/30 fps@8M.

> IR distance up to 500 m.

> H.265 encoding.

> Auto-tracking.

> Perimeter protection.

> Face recognition.

> Metadata.

> IP67.

Product Data
******

Camera

Image Sensor

1/1.8" CMOS

Pixel

8 MP

Max. Resolution

3840 (H) × 2160 (V)

ROM

8 GB

RAM

2 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.4
B/W: 0.0005 lux@F1.4
0 lux (IR light on)

Illumination Distance

500 m (1,640.42 ft)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR; Off

Illuminator Number

10 (IR light)

Wiper

Yes

Lens

Focal Length

6.25 mm–300 mm

Max. Aperture

F1.4–F4.5

Field of View

H: 64.6°–1.5°; V: 35.6°–1.0°; D: 68.5°–2.0°

Optical Zoom

48×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

DORI Distance

Detect

Observe

Recognize

Identify

5,048 m (16,561.68 ft)

2,019.2 m (6,624.67 ft)

1,009.6 m (3,312.34 ft)

504.8 m (1,656.17 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –20° to +90°

Manual Control Speed

Pan: 0.1°/s–240°/s
Tilt: 0.1°/s–100°/s

Preset Speed

Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–60°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

PTZ Protocol

DH-SD
Pelco-P/D (auto recognition)

Intelligence

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Face Recognition

Yes

Auto Tracking

Yes

Video

Video Compression

H.264H; Smart H.265+; H.264; H.265; MJPEG (Sub Stream 1); Smart H.264+

Streaming Capability

3 streams

Resolution

8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1-25/30 fps)
Sub stream 2: 1080p/960p/720p (1-25/30 fps)

Bit Rate Control

CBR; VBR

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Optical

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view; Multiple colors available

S/N Ratio

≥55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP

Interoperability

CGI; SDK; ONVIF (Profile S&G&T)

Streaming Method

Unicast; Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB)

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Mobile Client

iOS; Android

Port

Analog Output

1 channel (CVBS output, BNC)

RS-485

1 (baud rate: 1,200 bps–115,200 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm I/O

7/2

Audio I/O

1/1

Alarm Linkage

Capture; preset; tour; pattern; recordings; alarm digital input; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder state detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

36 VDC, 2.23 A (± 25%), Hi-PoE

Power Consumption

Basic: 18 W
Max.: 33 W (illuminator + PTZ)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Protection

IP67; TVS 8000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

442 mm × Φ262 mm (17.40" × Φ10.31")

Net Weight

10.3 kg (22.71 lb)

Gross Weight

12.5 kg (27.56 lb)

************

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Long-range outdoor perimeter and open-area surveillance where operators need 8MP detail, 48x zoom and up to 500 m IR reach.

Before you orderConfirm your recorder and VMS support this PTZ's ONVIF/PTZ protocol and that your power and mounting plan suit its outdoor installation before ordering.

01

See Farther in Low Light

Starlight technology and IR illumination up to 500 m help keep distant targets visible through the night.

02

Zoom In Without Losing Detail

The 48x optical zoom with 6.25–300 mm focal range lets operators close in on activity far from the camera.

03

Smart Detection Built In

Auto-tracking, perimeter protection, face recognition and metadata support help focus attention on relevant events.
