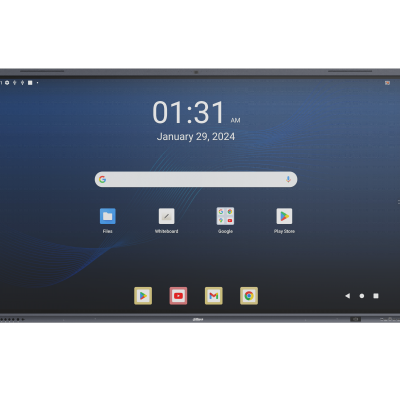

Dahua LPH86-MC480-U 86 inch 4K Smart Interactive Whiteboard Display

In stock

SKU: LPH86-MC480-U

$100,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

LPH86-MC480-U 86 inch Smart interactive whiteboard

LPH86-MC480-U

86 inch Smart interactive whiteboard

> Displays in 4K Ultra HD and uses 4K UI.

> Features split screen, and performs screen sharing between the whiteboard and phones, computers, tablets and more devices.

> Microsoft Office and other related software can be installed, and it can play audio and video files in various formats.

> Offers a smooth writing experience through handwriting recognition, pen writing, the fast writing response speed, and pen pressure recognition for a real writing experience.

> Intelligent text.

> Intelligent pen detection that automatically wakes up the whiteboard for annotations when the pen is lifted. Built-in 48M camera 8-array microphone design.

> Features sound source positioning.

> Offers NFC.

> Includes a full-featured Type-C IN port and supports charging through USB PD up to 100 W.

> With its 2 built-in mid-high frequency speakers, and 2 lowfrequency speakers, the device emits sound from its top and supports 2.2-channel audio output.

> Produces vibrant visuals through its high color coverage, low blue light emission, and accurate color reproduction.

> Optional OPS module,dual-system switchable

Built-in System

Main Processor

RK3588

Operating System

Android 13.0

CPU

Quad-core A76 + Quad-core A55

CPU Frequency

2.4 GHz

GPU

Mali-G610 MP4

RAM

8 GB

ROM

128 GB

LCD Panel

Panel Dimensions

86 inch

Backlight

DLED

Aspect Ratio

16: 9

Brightness

400 cd/m² (typ.)

Static Contrast

VA: 5000: 1 (typ.); IPS: 1200: 1 (typ.)

Resolution

3,840 (H) × 2,160 (V)

Viewing Angle

178° (H)/178° (V)

Lifespan

≥50,000 hrs

Display Color

1.07 Billion (10 bits)

Response Time

8 ms

Refresh Rate

60 Hz

Camera

48 MP

Field of View

H: 98°; D: 106°

Device Ports

Light Sensor

Yes

Front Button

6 buttons: Power supply, menu, signal source, curtain, volume and annotation

Front Ports

2 × USB 3.0 Type-A;

1 × HDMI IN;

1 × USB Type-C IN (100 W fast charge, data transmission, local area network);

1 × Touch USB2.0 Type-B;

Rear Port

3 × HDMI IN (4K@60 Hz);

1 × HDMI OUT (4K@60 Hz);

1 × DP IN; 1 × USB 2.0 Type-A;

2 × USB 3.0 Type-A;

1× USB Type-C IN port with 15 W max charge that receives input for audio, videos, data, and network sharing;

1 × USB Type-C OUT (4K@60 Hz);

2 × TOUCH USB 2.0 Type-B ports which support touch and wired network sharing of 100 Mbps;

1 × AUDIO IN (3.5 mm port); 1 × AUDIO OUT (3.5 mm port);

1 × SPDIF;

1 × RS232;

1 × RJ45 IN (10/100/1,000 Mbps);

1 × RJ45 OUT (10/100/1,000 Mbps）;

Wi-Fi

Yes

Wi-Fi Standard

Wi-Fi Station: 802.11b/g/n/a/ac/ax

Wi-Fi AP: 802.11b/g/n/a/ac

Wi-Fi Frequency Range

2400–2483.5 MHz;

5150–5250 MHz;

5250–5350 MHz;

5470–5725 MHz;

5725–5850 MHz;

MAX Power Transmission (Wi-Fi)

≤20 dBm@2400–2483.5 MHz;

≤23 dBm@5150–5250 MHz;

≤20 dBm@5250–5350 MHz;

≤27 dBm@5470–5725 MHz;

≤14 dBm@5725–5850 MHz;

Bluetooth

Yes

Bluetooth Standard

BT5.2 BR/EDR/BLE

Bluetooth Frequency Range

≤20 dBm@2400–2483.5 MHz

MAX Power Transmission (Bluetooth)

≤20 dBm

RFID Modulation Method

ASK

RFID Frequency Range

13.56 MHz

MAX Power Transmission (RFID)

13.56 MHz:≤42 dBuA/m @10 m

Function

IR Receiver

1

Card Swiping with NFC

Yes

Wireless Access Point

Wi-Fi 5, 2.4 GHz and 5 GHz dual band, 802.11 ac/n

Touchscreen

Touch Technology

Infrared

Attachment Method

Zero Air Gap

Response Time

≤2.5 ms

Touch Points

Android:32 points;Windows:50 points

Touch Accuracy

±1.5

Valid Touch

2 mm

Touch Height

2 mm

Writing Mode

Finger and stylus pen (magnetic)

Communication Mode

USB

Anti-light Interference

Anti-glare tempered glass

Surface Hardness

≥9H

Touch Resolution

32,768 × 32,768

Speaker

Built-in Speaker

4 (CH2.2）

Power

2 × 8 W + 2 × 18 W

Frequency

150 Hz–20 kHz

Microphone

8

Pick-up Distance

0 m–12 m (0 ft–39.37 ft)

AGC

Yes

Echo Cancellation

Yes

Intelligent Noise Filtering

Yes

General

Power Supply

100–240 VAC, 50/60 Hz, 6.5 A

Power Consumption

320 W (typ.);

650 W (max.)

Standby Power Consumption

≤0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH)

Storage Humidity

10%–90% (RH)

Product Material

Metal

Glass

3.2 mm anti-glare tempered glass

Casing Color (Frame/Rear)

Black

Product Dimensions

1,957.1 mm × 1,178.6 mm × 98.5 mm (77.05" × 46.40" × 3.88")

Frame Size

U: 33.3 mm, L/R: 14.6 mm, D: 43.0 mm (U: 2.42", L/R: 0.69", D: 1.11")

Packaging Dimensions

2,110.0 mm × 225.0 mm × 1,304 mm (83.07" × 8.86" × 51.34")

Net Weight

64.38 kg (141.94 lb)

Gross Weight

77.60 kg (171.08 lb)

Holes Distance

800 mm × 600 mm (31.50" × 23.62")

Installation

Wall mount or mobile bracket

Packing List

power cord × 1

Smart interactive whiteboard × 1

Stylus pen × 2

Wall mount bracket × 1

remote control × 1

Pack of wall mount screws × 1

Certification

Certifications

CE, EDLA, Energy Star

Click the link to the data sheet

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Meeting rooms, classrooms and collaborative workspaces that need an 86 inch 4K interactive display with screen sharing and built-in conferencing hardware.

Before you orderConfirm whether you need the optional OPS module for dual-system switching and verify the required quantity and lead time with ICCTVZONE before ordering.

01

Crisp 4K Visuals

The 86 inch 4K Ultra HD panel with 400 cd/m² brightness delivers clear, vibrant visuals for presentations and collaborative sessions.

02

Smooth Pen Writing

Handwriting recognition, fast writing response and pen pressure recognition create a natural writing experience, with intelligent pen detection waking the board for instant annotation.

03

Built-In Conferencing

A built-in 48M camera, 8-array microphone with sound source positioning and NFC support make the whiteboard ready for connected meetings and screen sharing.
