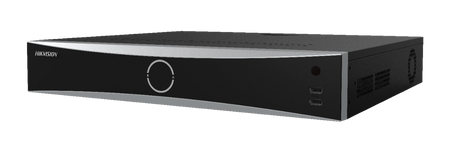

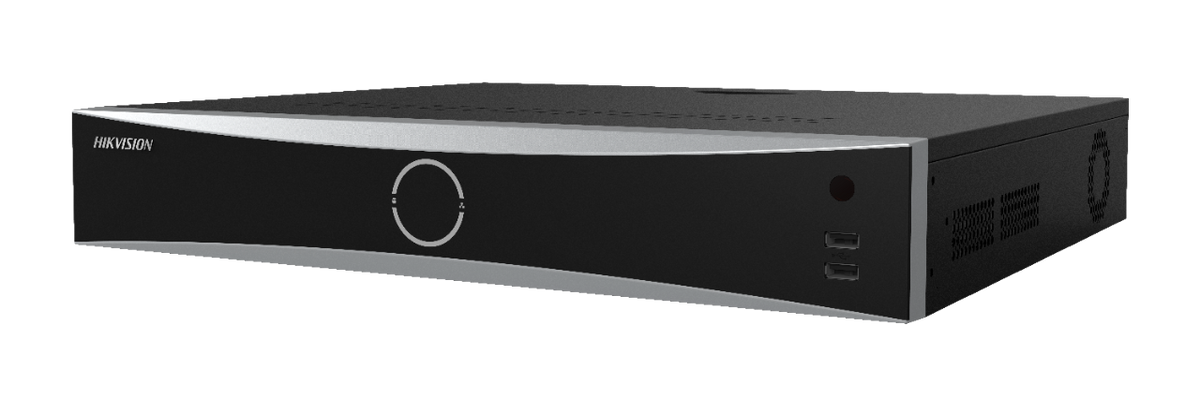

HIKVISION iDS-7732NXI-I4/16P/X 32-ch 16 PoE 4K DeepinMind NVR
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
32-ch 1.5U 16 PoE 4K DeepinMind NVR
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 16-ch perimeter protection
- Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
- Up to 8-ch video structuralization
- Up to 32-ch IP cameras can be connected
- Up to 16-ch 1080p decoding capability
Available models:
Product Data
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
-
Face Picture Library
Up to 16 face picture libraries, with up to 100,000 face pictures in total
(each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Facial Detection and Analytics Performance8-ch 8 MP human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Face Picture Comparison16-ch face pictures comparison alarm
- Perimeter Protection
- Human/Vehicle AnalysisUp to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- Video Structuralization
- Structured AnalysisUp to 8-ch 2 MP (HD network camera, up to 8 MP, H.264/H.265) live video structuralization analysis
- Face Picture LibraryUp to 16 face picture libraries, with up to 100,000 face pictures in total
- Face Picture Comparison8-ch face picture comparison alarm
- Video and Audio
- IP Video Input32-ch；Up to 12 MP resolution
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA Simultaneous Output
- Video Output ModeHDMI/VGA independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability16-ch@1080p (30 fps)
- Synchronous playback16-ch
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Network
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection128
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
- Power≤ 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA4 SATA interfaces
- eSATA1 eSATA interface
- CapacityUp to 10 TB capacity for each HDD
- Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/8
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 30 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
- Weight≤ 5 kg (11 lb)
- Certification
- Obtained CertificationCE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Centralised recording and deep-learning analytics across large multi-camera sites needing up to 32 IP channels and 16 PoE ports.
Run perimeter protection and facial recognition analysis on supported channels to help cut false alarms and speed up searches.
Power and connect up to 16 PoE cameras directly, simplifying cabling for smaller or staged deployments.
Handle 320 Mbps incoming bandwidth and up to 12 MP IP inputs to support dense multi-camera installations.
