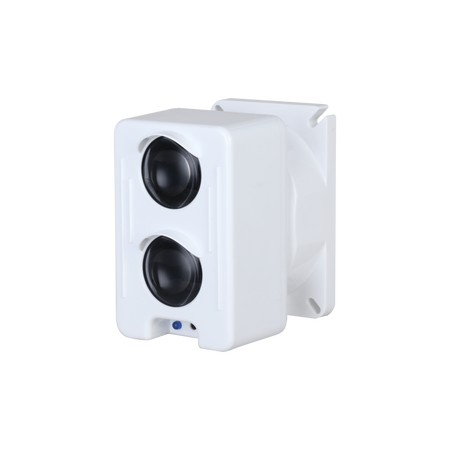

Dahua YJ104 Linear Beam Detector for Addressable Fire Alarm Systems
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

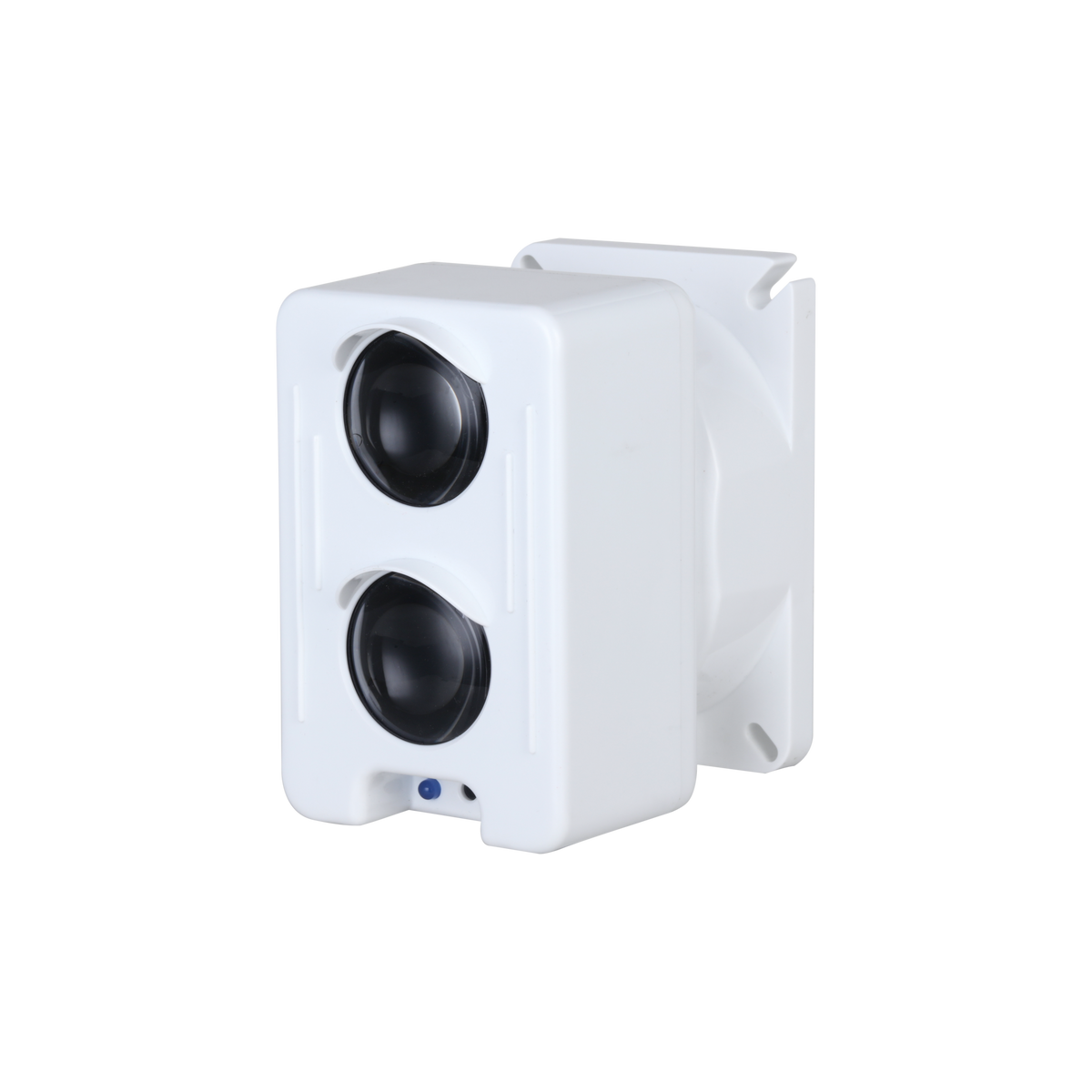

DAHUA YJ104 Linear Beam Detector
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Voltage |
24V (36V to 18V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Current |
30mA (25mA to 45mA) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator Light |
Standby: Blue indicator flashes once every 4 seconds Alarm: Red indicator is steady on |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Distance |
5 m—100 m (16.40 ft—328.08 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Sensitivity |
1.8dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
78.5 mm × 123.0 mm × 115.0 mm (3.09"× 4.84" × 4.53") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
0.3 kg (0.66 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-35°C to +65°C (-31°F to +149°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤ 95% RH (non condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Adjustment Angle |
About ±5° up and ±10° down |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation Angle |
<15° offset :±0.2 m/60 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Perimeter and open-area fire detection where a linear beam path of 5 m to 100 m must be monitored within an addressable fire alarm system.
Covers beam paths from 5 m to 100 m, letting one detector watch long corridors or open spaces instead of many point detectors.
A blue standby flash and steady red alarm light make it easy to confirm detector state during routine checks.
Rated for -35°C to +65°C operation, so it suits demanding indoor and sheltered environments.
