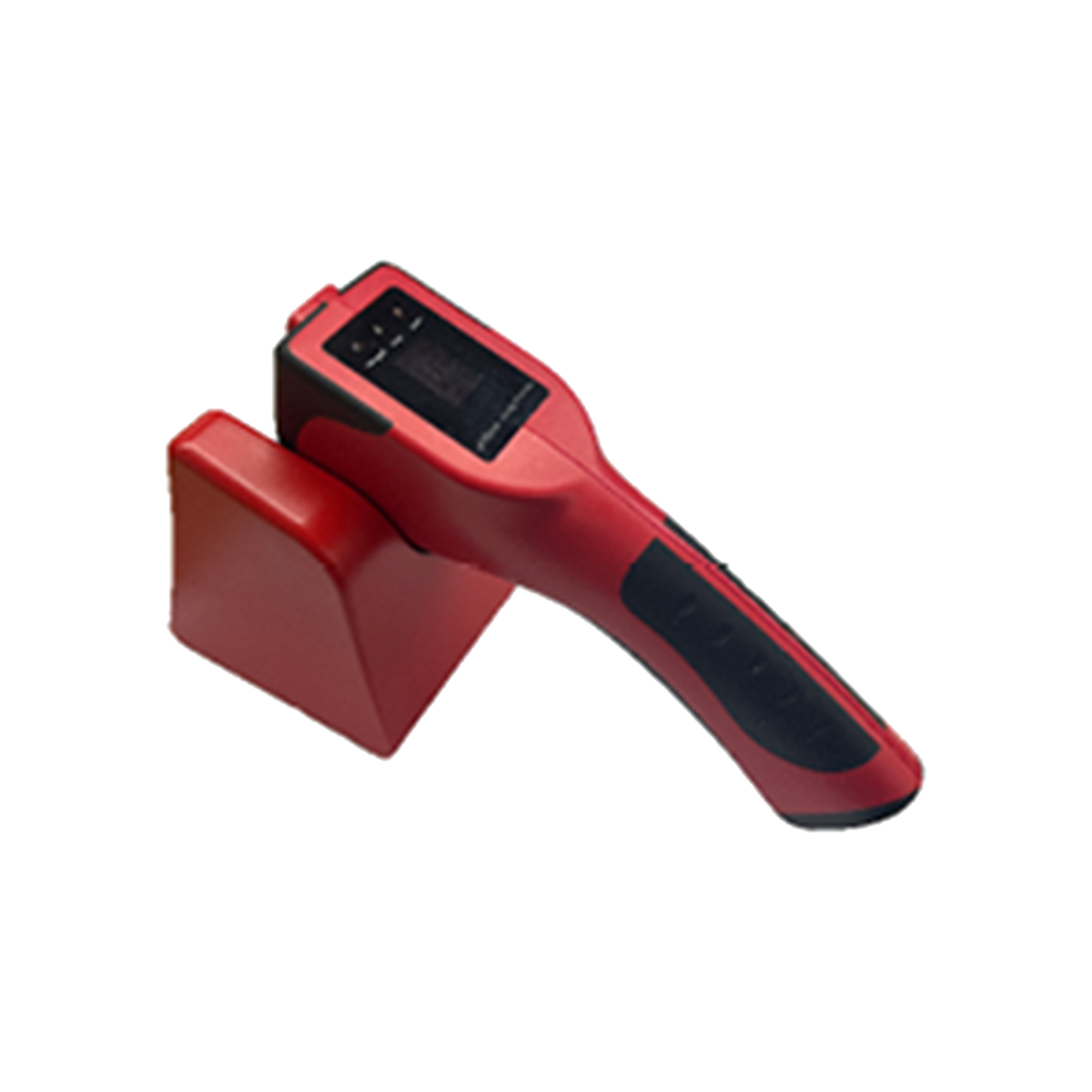

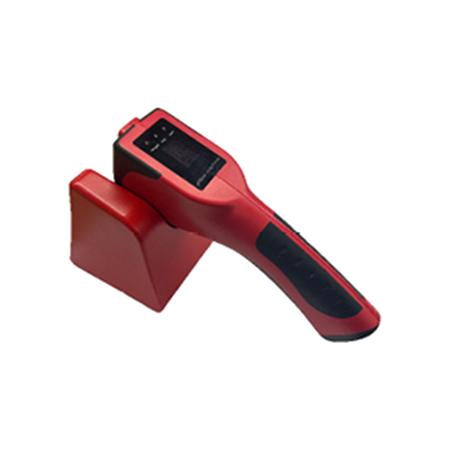

Dahua XIS4000-L Handheld Bottled Liquid Scanner
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
XIS4000-L
Handheld Bottled Liquid Scanner
> High detection speed.
> Multi-lane speed measurement.
> Wide detection range.
> Unmatched safety performance and saves labor costs.
Product Data
| System Parameters | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Detection Principle | Differences of permittivity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function Module | Detection of non-metal container | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Method | Sound & light alarm, image alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation Method | LCD, button operation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maintenance & Calibration | No need for maintenance and calibration during normal use, and the Device performs power-on self test. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Booting Time | ≤2 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Self-test Time | ≤1 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | more than 10,000 detection records | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function Parameters | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Detection Object | Flammable liquids in sealed container | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Detectable Container Material | Plastic/Glass/Ceramic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Detection Speed | 1–2 s for non-metal container | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Detectable Container Size | Containers with liquid not less than 60 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Detection Volume | 50 ml | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| False Alarm Rate | False alarm rate of pure water≤1% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Reset | Reset after alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Battery specifications | Two 1.5V AA battery or AA rechargeable battery not less than 1300mAh. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port Parameters | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Data Transmission Port | USB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Battery Holder | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Detection Switch | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Parameters | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimension | 214 mm × 50 mm × 79 mm (8.43" × 1.97" × 3.11") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Color | Red and black | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package Dimension | 430 mm × 285 mm × 150 mm (16.93" × 11.22" × 5.91") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Weight | 0.2 kg ± 0.02 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –20 °C to 55 °C (–4 °F to 131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –20 °C to 55 °C (–4 °F to 131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | <95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Humidity | <95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Fast handheld screening of sealed plastic, glass or ceramic liquid containers at entrances and checkpoints.
Detects flammable liquids in sealed containers in about 1 to 2 seconds for non-metal containers, keeping entry lines moving.
LCD and button controls with sound, light and image alarms make it easy for staff to run checks with minimal training.
Power-on self-test with no routine maintenance or calibration needed in normal use, helping reduce labor and servicing effort.
