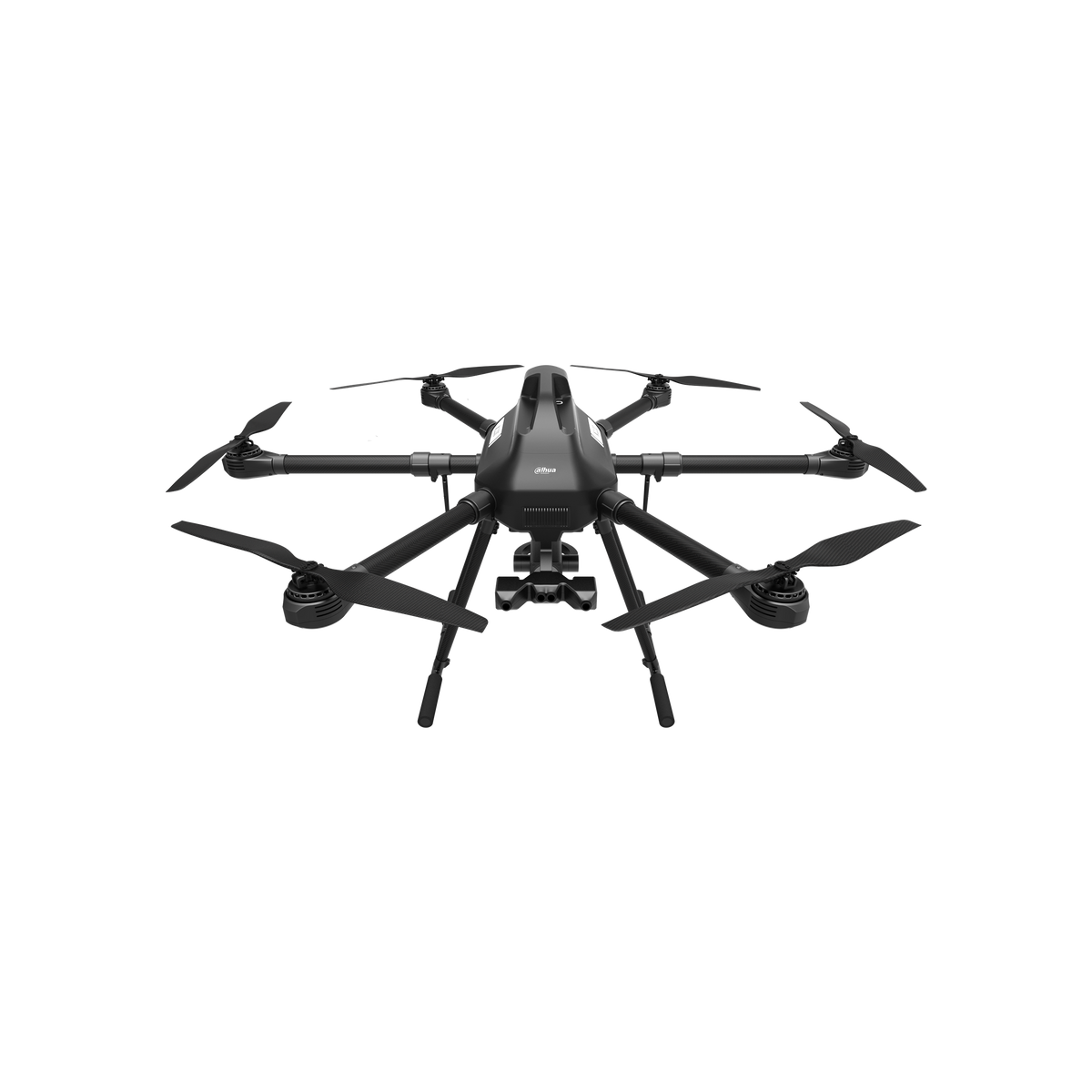

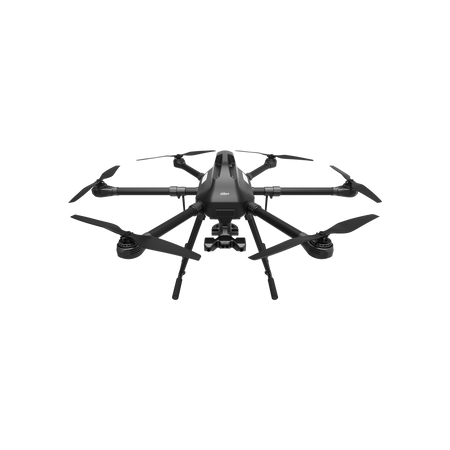

Dahua X1100 Industrial Hexacopter Drone, 1100mm Wheelbase, Camera & Optics
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
X1100
Product Data
| Aircraft | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Diagonal Wheelbase | 1100mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 955(mm) x 1100(mm) x 576(mm) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package Dimensions | 450(mm) x 478(mm) x 578(mm) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Satellite Positioning Systems | GPS/Beidou/GLONASS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Obstacle Avoidance | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Break Propeller Protection | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Takeoff Weight | 14.5kg(31.96lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Flight Parameter | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Flight Time(No Payload) | 41mins | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hovering Power | 1050W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hovering Accuracy | Vertical: ±0.5m , Horizontal: ±1.5m( | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Speed | 22m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Flight Height | 1500m(4921.3ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Takeoff Altitude | 5000m(16404.2ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Ascent Speed | 13m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Descent Speed | 2m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Tilt Angle | 25° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Wind Speed Resistance | 14m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Angular Velocity | 100°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Flight Time(No Payload) | 41mins | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Battery | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | 27000mAh/pcs | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Battery Type | LiPo | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 5.1kg(11.24lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -20°C ~ 60°C(-4°F ~ 140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | -30°C ~ 65°C(-22°F ~ 149°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remote Controller | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4G LET | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | Support Onvif, SIP, RTSP and private protocol | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | Audio In, Micro SD Card Slot | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VPN | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Transmission Distance | 3-10Km | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Screen | 7" touch screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Industrial aerial surveillance and inspection missions that need a large-wheelbase hexacopter with GPS, Beidou and GLONASS positioning.
GPS, Beidou and GLONASS support helps keep the aircraft reliably located during demanding industrial flight operations.
A 27000mAh LiPo battery and up to 41 minutes of no-payload flight time support longer aerial missions between landings.
Obstacle avoidance, propeller protection and an operating range of -20°C to 60°C help the drone handle varied field environments.
