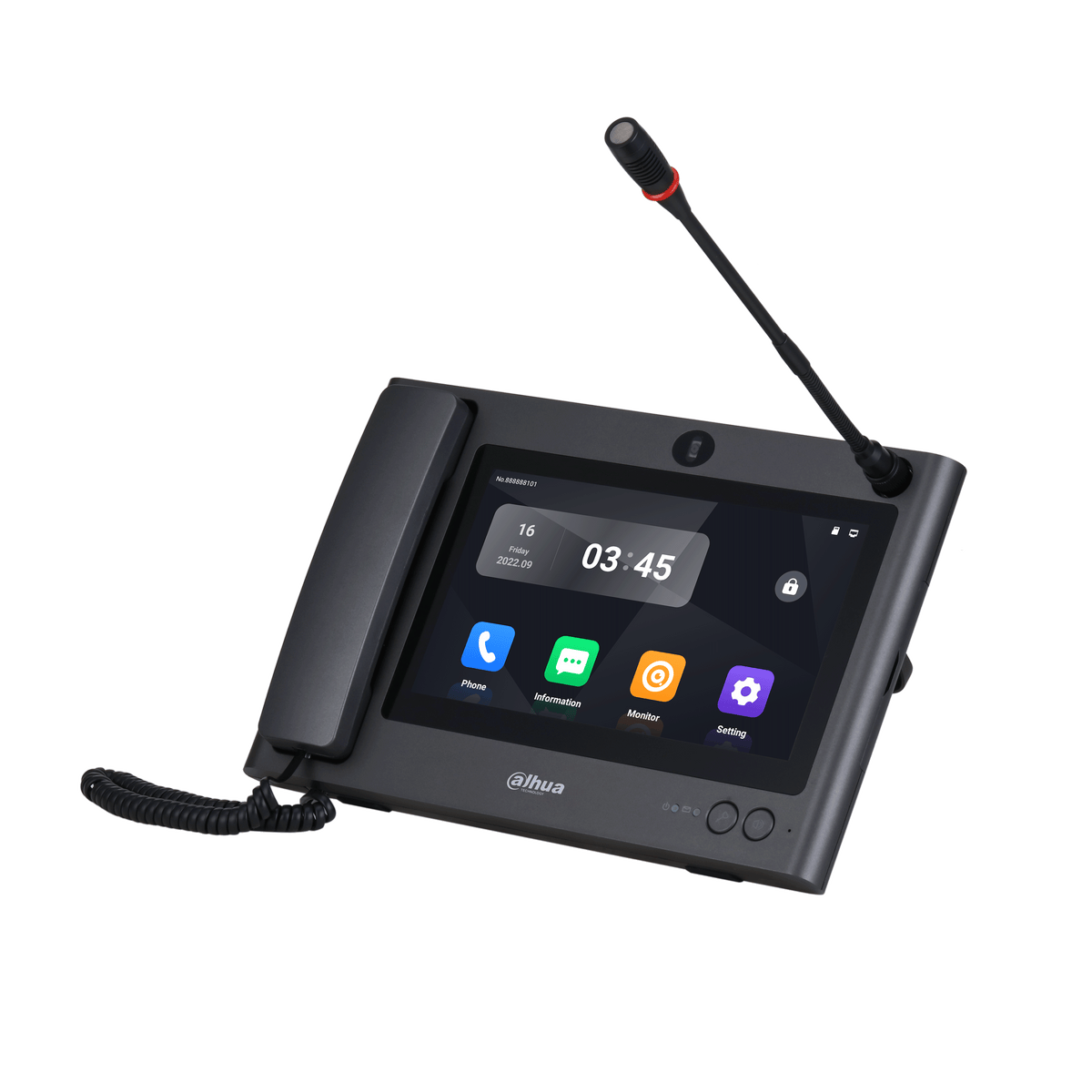

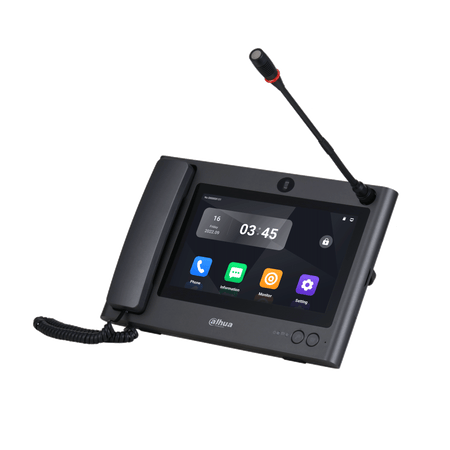

Dahua VTS8A40B-CG 10-Inch Touch Screen Master Station Video Intercom

In stock
SKU: VTS8A40B-CG
$562.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

VTS8A40B-CG

> Highly convenient, it has a 10-inch glass touch screen with a 1024 (H) × 600 (V) resolution and supports speaker phone, gooseneck micro phones and handsets.

> Supports desk mount installation, and the bracket can be adjusted from 0°–45°.

> Supports cameras and performing two-way video calls with master stations and indoor monitors.

> Offers HDMI output with a resolution up to 1024 (H) × 600 (V).

> The intercom can be set for residential areas and use in industries.

> Buidlings intercom: Doors can be remotely unlocked during monitoring and while the intercom is in use.

> Features two-way talk for indoor monitors and door stations.

> Monitors 4 channel door stations and IPCs at the same time.

> Records videos, takes snapshots and stores information on SD cards during monitoring and while the intercom is in use.

> Industry intercom: 300 IP VTAs can be connected to the master station.

> Supports two-way talk with emergency phone terminals and emer gency phone terminal stations.

> Monitors 4 channel door stations and IPCs at the same time.

> Records videos, takes snapshots and stores information on SD cards while the emergency phone terminal and emergency terminal station are performing monitoring and using the intercom.

> Offers two-way talk between stations.


Product Data

System

Main Processor

Embedded Processor

Operating System

Android 11

Button Type

Mechanical

Interoperability

ONVIF; CGI; SDK; SIP

Network Protocol

IPv4; RTSP; UDP; FTP; RTP; TCP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

10" TFT display

Screen Resolution

1024 × 600

Camera

5 MP CMOS camera

Field of View

H: 57°; V: 45°; D: 72°

Video Compression

H.264; H.265

Video Resolution

720p

Video Frame Rate

25 fps

Video Bit Rate

2 Mbps

Audio Compression

G.711a; G.711u; PCM

Audio Input

3 Channels

Audio Output

Built-in speaker; handset speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz,16Bit

Function

Communication Mode

Full digital

Multi-Window Display

Supports splitting to 4 windows and monitoring 4-ch 720p videos.

Storage

Micro SD, Max 512 GB

Web Configuration

Yes

Auto Registration

Yes

Access Device

Building mode:
Up to 32 VTSs.
Up to 32 IPCs.
Industry mode:
Up to 300 VTAs (Added through IP).
Up to 32 IPCs.

Performance

Casing Material

PC + ABS

Port

RS-485

1

HDMI

1

USB

1 × USB 2.0 port
1 × USB 3.0 port

Power Output

1 channel, 12 V/200 mA

Network Port

1 × RJ-45 100 Mbps/1000 Mbps self-adaptive

General

Appearance Color

Titanium gray

Power Supply

12 VDC, 4A

Power Adapter

Included

Installation

Desk Mount

Certifications

CE; FCC

Accessory

Power adapter; power cord; handset cord

Product Dimensions

345.00 mm × 224.60 mm × 64.42 mm (13.58" × 8.84" × 2.54")

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

5%–90% (RH) (Non-condensing)

Operating Altitude

0 m–1300 m (0 ft–4265.09 ft)

Power Consumption

≤ 5 W (standby), ≤ 10 W (working)

Gross Weight

2.5 kg (5.51 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30% to 75% (RH)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Building and industry intercom desks that need a 10-inch touch master station for two-way video calls, door release and multi-channel monitoring.

Before you orderConfirm your door stations, indoor monitors and emergency terminals support ONVIF, CGI, SDK or SIP interoperability with this master station, and check stock and lead time before ordering.
01
10-Inch Glass Touch Screen

The 10-inch glass touch screen with 1024 x 600 resolution gives operators a clear, responsive interface for calls, monitoring and door control.

02
Flexible Desk Mounting

Desk mount installation with a bracket adjustable from 0 to 45 degrees lets staff set a comfortable viewing angle for daily intercom work.

03
Multi-Channel Monitoring

Monitor four door stations and IPCs at once, with two-way talk, snapshots and SD card recording during monitoring and intercom use.
