Dahua VTS5340B 10-Inch Video Intercom Master Station
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

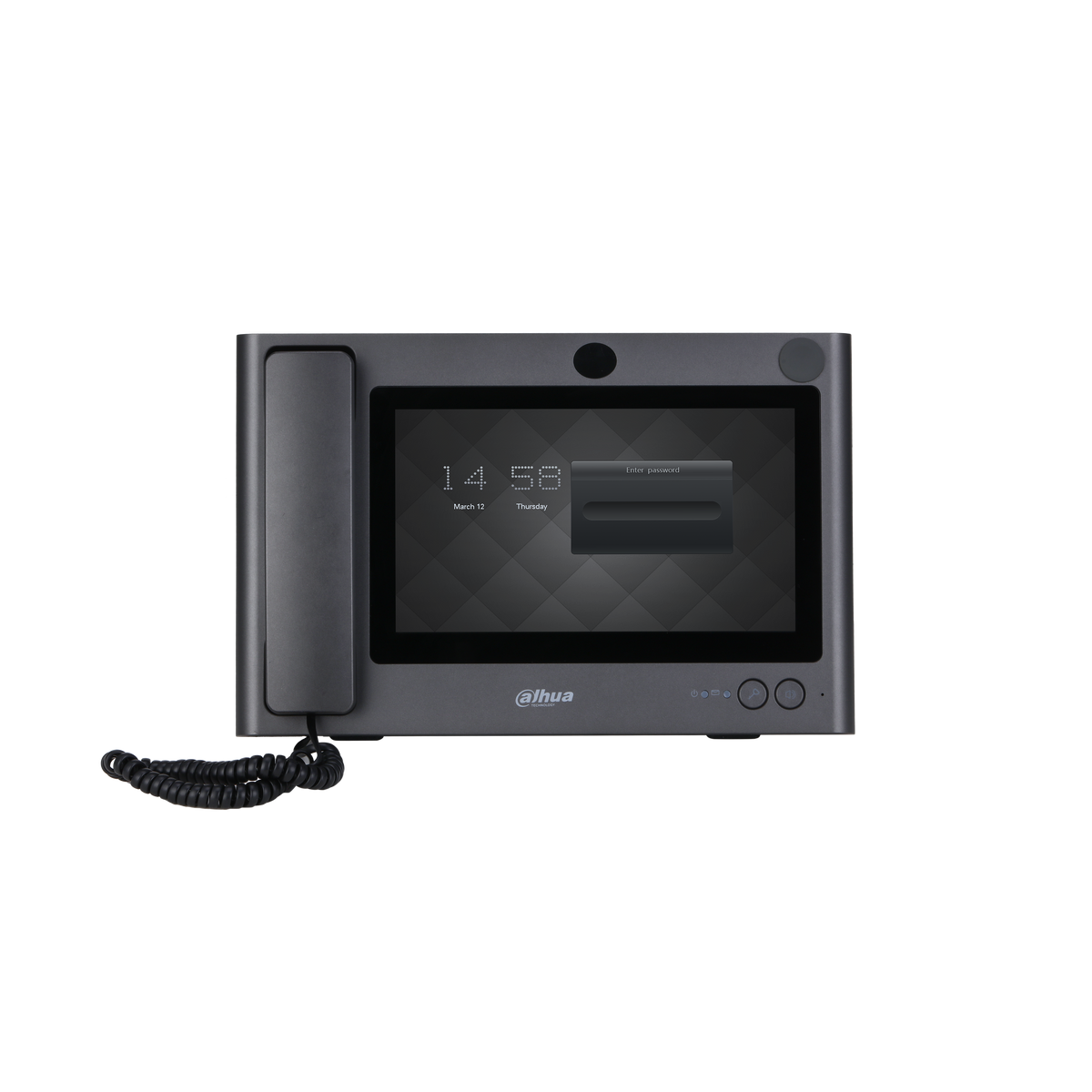

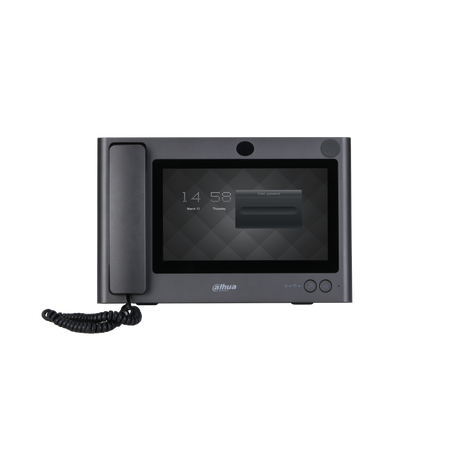

VTS5340B
Master Station
> Easy to operate, no need to install, bracket angle range 0°–45°.
> Supports 4 720P channels.
> 10-inch capacitive high resolution LCD provides good human machine interaction.
> Supports two audio output modes: handsfree and handset.
> SD card expansion makes videos and snapshots can be restored locally.
> Supports HDMI output; resolution 1024×600.
Product Data
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux operating system |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
IPv4;SIP; RTSP; RTP; TCP; UDP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Type |
Capacitive Screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display |
10 inch TFT display |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Resolution |
1024(H)×600(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Encoding |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
Built-in speaker; handset speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Mode |
Full duplex communication |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Enhancement |
Echo suppression and cancellation/digital noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
16KHz, 16Bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Housing Material |
PC+ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Displayed in Split Screen |
4 channel 720P videos can be displayed on the 4-section screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Micro SD card (max capacity is 64GB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
1 RJ-45 100Mbps/1000Mbps self-adaptive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color |
Titanium grey |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
DC 12V/2A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Provided |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Installed on the desk |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE, FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
344.97 mm × 224.6 mm × 64.42 mm (13.58"×8.84"×0.34") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%RH–90%RH (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Environment |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–1300 m (0 ft–4265.09 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤24W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
2.5 kg (5.51 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Desk-mounted video intercom control in apartments and small building entry systems.
The capacitive TFT screen shows four 720P video channels in split view for easy monitoring.
Choose handsfree or handset talkback with echo suppression and digital noise reduction.
A micro SD card slot up to 64GB lets you store videos and snapshots on the station.
