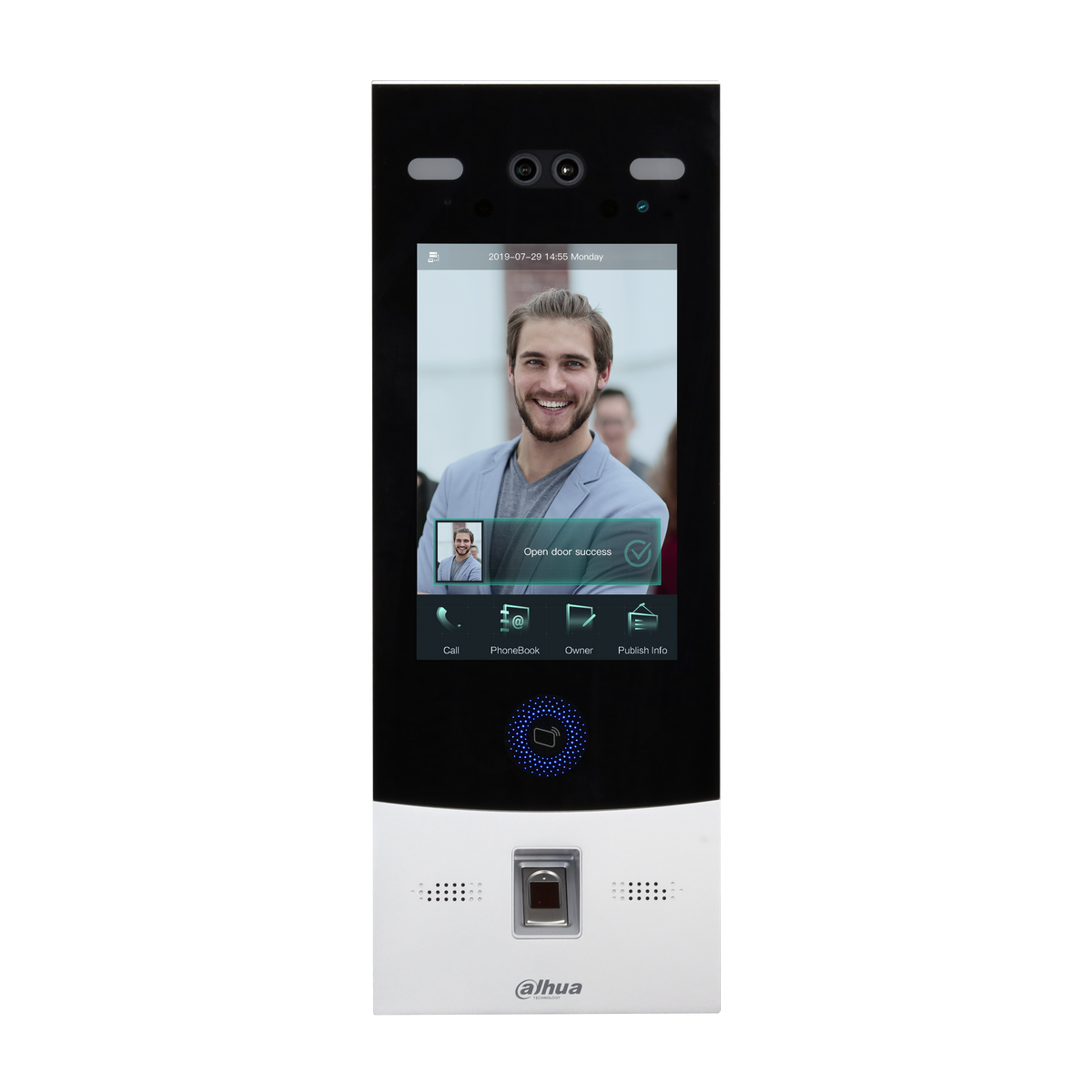

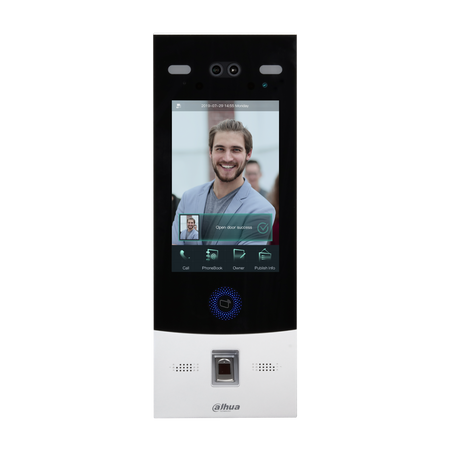

DAHUA VTO7541G Digital Face Recognition Outdoor Station
DAHUA VTO7541G Digital Face Recognition Outdoor Station
icctvzone

Dahua VTO7541G 8" Face Recognition Video Intercom Outdoor Station

In stock
SKU: VTO7541G
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

VTO7541G

Digital Face Recognition Outdoor Station

> Anodized aluminium alloy middle frame

> 8 inch capacitive touch screen and high definition IPS screen; resolution: 800 (H)×1280 (V)

> Face, fingerprint, password, and card unlock

> Face verification accuracy>99%; face comparison time ≤0.2s per person; false recognition rate Face profiles can be recognized, the profile angle range is 0°–90°

> Support liveness detection

> Full duplex communication

> Outdoor stations can be managed through the platform; voice communication between mobile app and platform

> 2 MP low illuminance wide dynamic dual camera; white light fill light and IR fill light, fill light brightness can be adjusted

> Support duress alarm, tamper alarm, and fire alarm

> IK07; IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

> Surface mount and flush mount



Product Data

System

Main Processor

Embedded processor

Internet Protocol

IPv4, FTP, DNS, RTSP, RTP, TCP, UDP, SIP

Keyboard Type

Touch keyboard

Basic

Appearance

G serials

Display

High definition IPS screen

Screen Type

Capacitive screen

Resolution

800 (H)×1280 (V)

Camera

1/2.8” 2MP CMOS

Angle of View

H:88°, V:47°, D:105°

WDR

120dB

Light Compensation

Auto white light fill light

Auto IR light fill light

Status Indicator

1, blue-operation status

Voice prompt

Yes

Housing Material

AL+PC+ABS

Function

Unlock Mode

Remote/password/face/fingerprint/card

Online Update

Yes

Full Duplex Communication

Yes

Snapshot When Unlocking Doors

Yes

Information Release

Words, pictures, and videos can be played on the outdoor station

Leave Photos and Messages

Yes

Web Configuration

Yes

Motion Detection

Video motion detection

Issue Card Locally

Yes

Auto-Registration

Yes

Performance

Face Recognition Range

Face-camera distance: 0.3 m–2.0 m

Human height: 1.1 m–2.4 m

Face Recognition Configuration

Anti-fake switch

Recognition threshold

Facial profile angle

Face Verification Accuracy

>99%

Face Comparison Time

≤0.2s

Capacity

Face Capacity

20, 000

Card Capacity

10, 000

Fingerprint Capacity

10, 000

Port

RS-485

1

Wiegand

1 (input or output)

Ethernet

1 10M/100M/1000M Ethernet port

Alarm Input

2 (Switch quantity)

Alarm Output

2 (Dry contact)

Alarm Linkage

Yes

Power Output

1 DC 12V/100ma

Exit Button

1

Door Status Detection

1

Lock Control

1, normally on or off by default

Alarm

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Regular

Ingress Protection

IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Power Supply

Optional

Power Supply Mode

DC 12V/2A

Power Consumption

≤24.0W

Product Dimensions

389mm×145mm×43mm (15.31"×5.71"×1.69")

Packaging Dimensions

413mm×182mm×104mm (16.26"×7.17"×4.09")

Operating Temperature

-20°C to +60°C (-4°F to + 140°F)

Operating Humidity

10%RH–90%RH

Operating Altitude

86kPa–106kPa

Gross Weight

1.91kg (4.21 lb)

Accessory

Mount plate

Installation Method

Surface mount and flush mount

Operating Environment

Outdoor

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Apartment and building entrances that need multi-factor face, fingerprint, password and card entry with IP66-rated outdoor durability.

Before you orderConfirm whether surface or flush mounting suits your wall, and verify the unlock modes and platform integration your site requires before ordering.
01
Multi-Mode Entry

Supports face, fingerprint, password and card unlock so residents can choose the credential that suits them.

02
Fast Face Verification

Face comparison time of 0.2 seconds or less per person helps keep entry lines moving at busy doors.

03
Weather-Ready Housing

IK07 impact and IP66 water resistance ratings support reliable outdoor installation when gaps are properly sealed.
