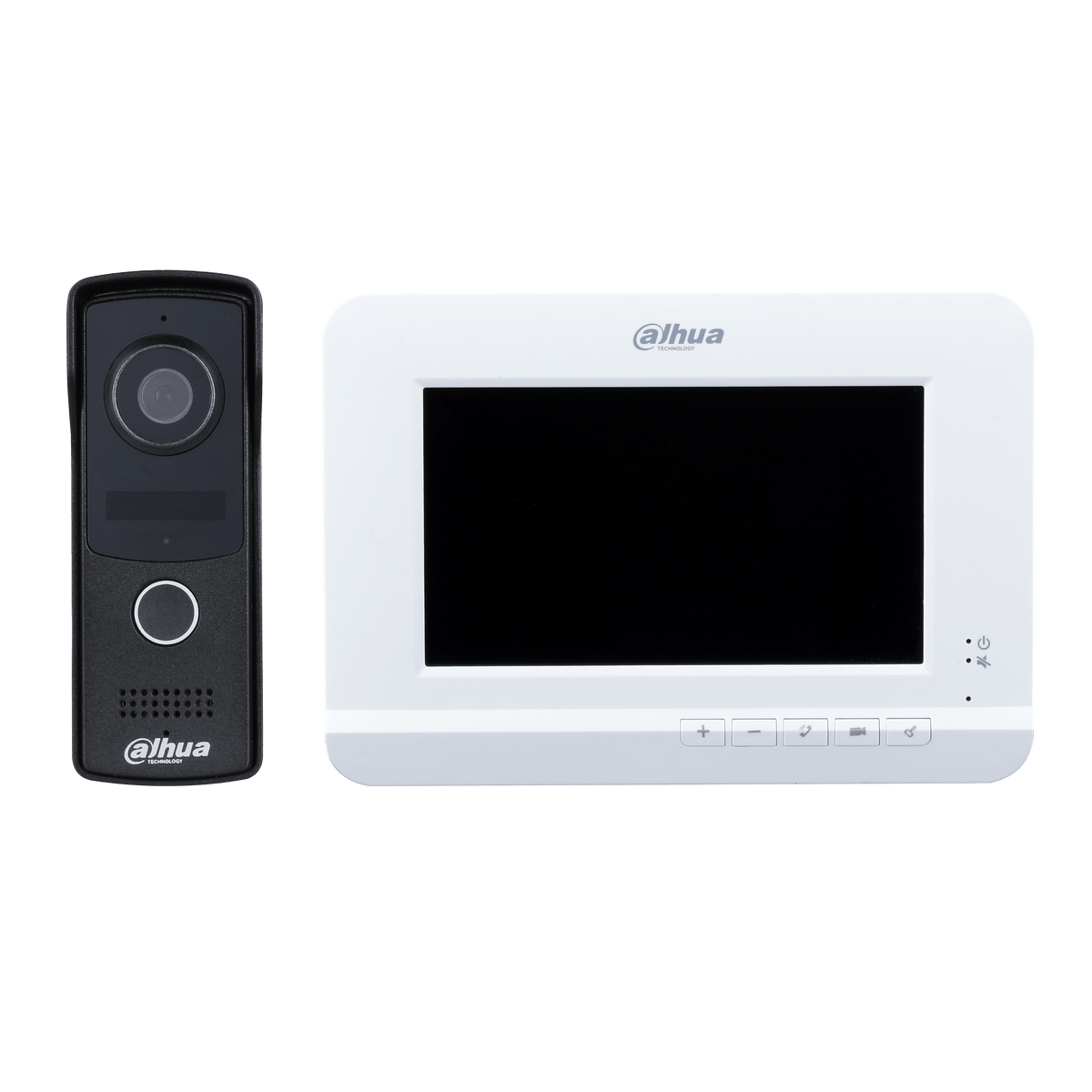

Dahua VTK-VTO2010D/VTH2020DW 4-Wire Video Intercom Kit
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
VTK-VTO2010D/VTH2020DW
4-Wire Video Intercom KIT
> Screen dimension: 7 inch
> Video intercom function: Unlock, voice call, video call, volume adjustment, and doorway monitoring
> Quantity of voice intercom and video intercom: 2 voice intercoms + 3 video intercoms
> Applicable scenario: Villa
Product Data
|
DHI-VTH2020DW |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical keyboard keys |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screed Type |
Non-touch screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display |
7 inch TFT display |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
800 (H) × 480 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Status indicator Light |
2 indicator lights Power: Indicator light green-Power on Volume: Indicator light off-Mute |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Methods |
Analog |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Housing Material |
PC+ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply Mode |
12V DC 2A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Source |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation Mode |
Surface |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
CE FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
220.5 mm × 153.5 mm × 26.8 mm (8.68" × 6.04" × 1.06") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-10° C to +55° C (+14°F to +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%RH–95%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤2W (standby mode) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net weight |
0.39 kg (0.86 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DHI-VTO2010D |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical keyboard keys |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
1/2.7” 2MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H:70°, V:38°, D:82° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
3.3 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio In |
1 channel to the microphone, pickup distance 0.5m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Out |
1 channel to the speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator Light |
1 indicator light; Green: Power on |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Method |
Analog |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Unlock Mode |
Local unlock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation Mode |
Surface |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
CE FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
134.9 mm × 47.2 mm × 33.8 mm (5.31" × 1.86" × 1.33") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection Grade |
IK07, IP65(Apply silica gel to gaps between the device and the wall.Liquid sodium silicate is recommended. For details, see the quick start guide.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-30° C to +50° C (-22°F to +122°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%RH –95%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤1W (standby mode) ≤3W (operating) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.19 kg (0.42 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Villa entry points that need a 7-inch indoor monitor with door unlock, voice and video call, and doorway monitoring over 4-wire analog wiring.
The indoor unit gives visitors a clear 800 x 480 TFT view so residents can see and speak with callers before unlocking.
The kit supports 2 voice intercoms plus 3 video intercoms, making it easier to cover several rooms or entry points in one setup.
The outdoor unit carries IP65 and IK07 ratings, so it is built to handle outdoor mounting at the entrance.
