Home » Dahua VTH8642KMS-W 10" 2-Wire & WiFi Indoor Monitor
DAHUA VTH8642KMS-W 2-wire & WiFi Indoor Monitor
DAHUA VTH8642KMS-W 2-wire & WiFi Indoor Monitor
icctvzone

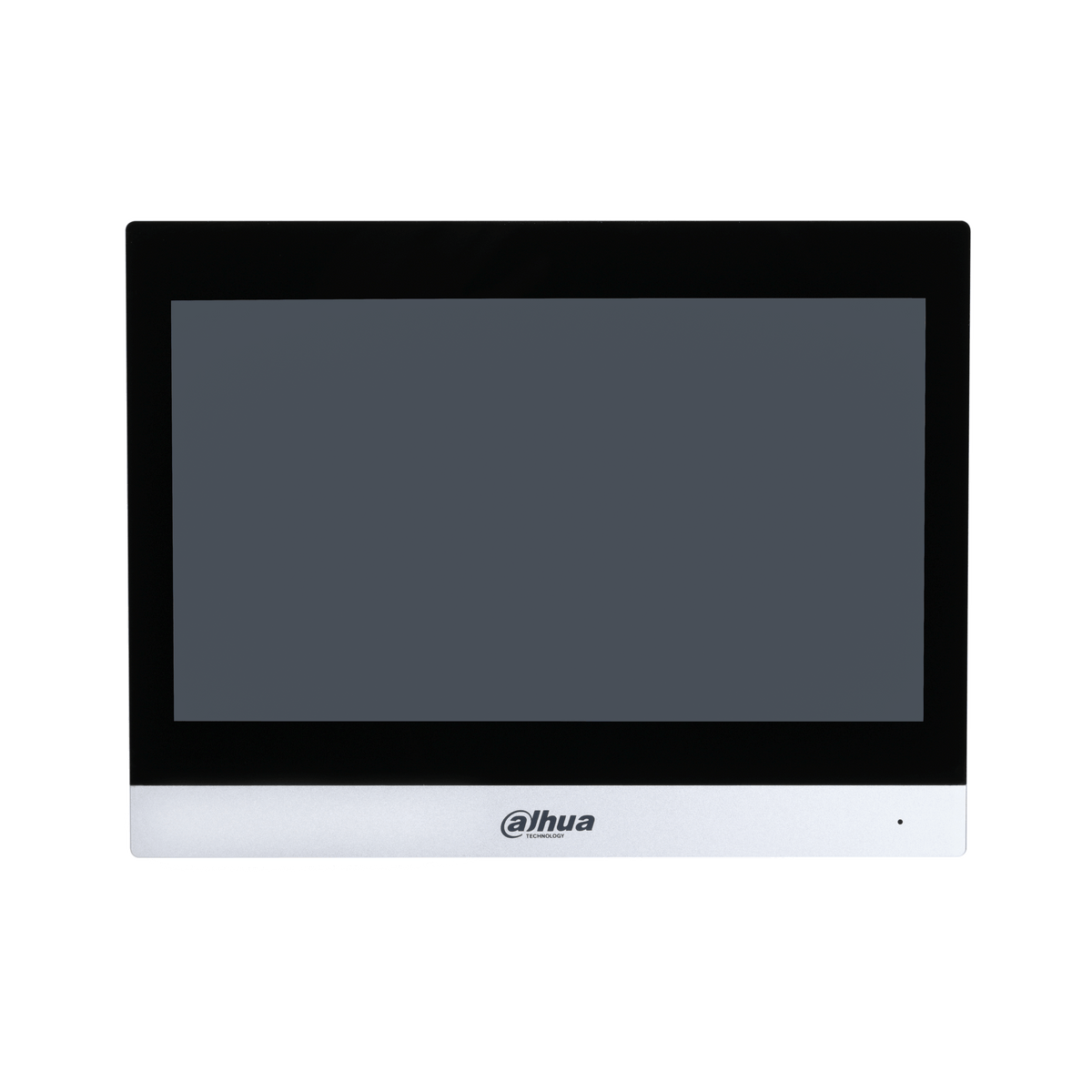

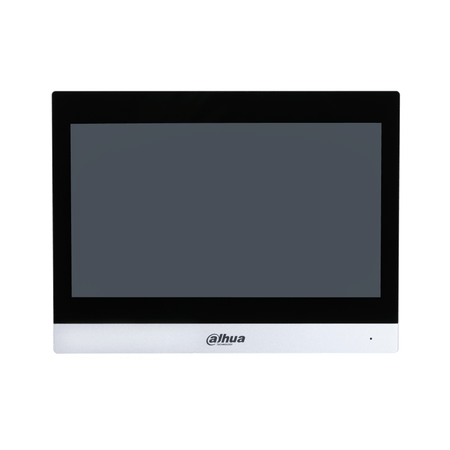

Dahua VTH8642KMS-W 10" 2-Wire & WiFi Indoor Monitor

In stock
SKU: VTH8642KMS-W
$378.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

VTH8642KMS-W

2-wire IP & Wi-Fi Indoor Monitor

> Elegant alluminum alloy design.
> Built-in Linux OS.
> 10" capacitive touch screen, 1024 × 600.
> Displays the camera's image when it receives a call from the door station
> 6-channel wired alarm zone.
> Sends SOS messages to the management center.
> Wi-Fi connection
> High-performance speaker and microphone that produces high-quality voice calls.
> 2–wire digital communication
> Customizable Do Not Disturb mode.



Product Data

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Network Protocol

RTSP; RTP; SIP; DNS; SSH

Basic

Screen Type

Capacitive touchscreen

Display

10" TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711Mu; G.711u

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-way Audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16 kHz; 16 bit

Function

Communication Mode

Digital 2-wire

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (insert an SD card into the indoor monitor)

DND Mode

Do not disturb period can be set; Do not disturb mode

Number of Extensions

Villa: 3
Apartment: 2

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Wireless Security Encryption

WPA/WPA2; WPA-PSK/WPA2-PSK

Storage

Micro SD card (up to 64 GB)

Performance

Casing

Metal

Alarm

SOS

Yes

Port

RS-485

1

Alarm Input

6

Alarm Output

1

Door Bell

Yes (use any alarm input port)

Network

One two-wire port and one 10Mbps/100Mbps Ethernet port (one of them can be selected)

General

Color

Siliver

Power Supply

48 VDC 1.25 A

Installation

Surface mount

Certifications

CE; FCC

Accessory

Bracket and alarm ribbon cable (included)

Dimensions

250 mm × 190 mm × 23.5 mm (9.84" × 7.48" × 0.93")

Operating Temperature

-10°C to +55°C (+14°F to 131°F)

Operating Humidity

10%–95% RH (non-condensing)

Operating Altitude

Beneath 3000 m (9842.52 ft)

Power Consumption

Standby ≤ 3 W; working ≤ 7 W

Net Weight

0.67 kg (1.47 lb)

Gross Weight

0.85 kg (1.87 lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Villa and apartment video intercom installations that need a 10" touchscreen indoor monitor with 2-wire digital communication and Wi-Fi connectivity.

Before you orderConfirm your door station and intercom system compatibility, the required extension count for villa or apartment mode, and current lead time before ordering.
01
Clear 10" Touchscreen

The 10" capacitive touchscreen at 1024 × 600 shows the door station camera image when a call comes in, so residents can see visitors before answering.

02
Flexible 2-Wire & Wi-Fi

Digital 2-wire communication plus 2.4 GHz Wi-Fi gives installers more options for wiring and placement during retrofits and new builds.

03
Alarm and SOS Ready

Six wired alarm inputs, one alarm output and SOS messaging to the management center help residents raise alerts quickly.
