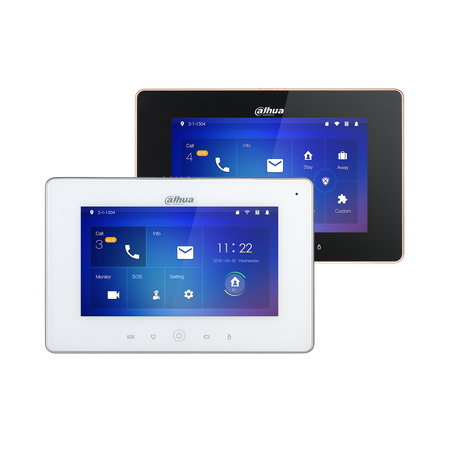

Dahua VTH5241DW-S2 10" Touch Screen Wi-Fi Indoor Monitor
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
VTH5241DW-S2
IP & Wi-Fi Indoor Monitor
> IPC surveillance
> 6ch wired alarm integration, 6ch wireless alarm integration(433MHZ)
> Micro SD card optional, max 32GB
> Record & Snapshot(SD card needed)
Product Data
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
VTH5241DW-S2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Micro Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operation System |
Embedded LINUX OS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
All-direction Microphone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
Built-in Loudspeaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bidirectional Talk |
Support Dual-way Bidirectional talk |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LCD Screen |
10" 1024x600 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operation Mode |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input |
Touch buttons and capacitive screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wired Zones |
6 on-board zones |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Zones |
8 wireless zones |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Out |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi |
IEEE802.11b/g/n 2400~2483.5MHz CE EIRP≤20dBm, FCC POWER≤30dBm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet |
10M/100Mbps Self-adaptive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
TCP/IP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Memory Slot |
Micro SD, Max 32GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Surface |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
DC 12V, PoE（802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Work ≤8W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
﹣10°C to +55°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Relative Humidity |
10%RH–90%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
265.0mm×180.0mm×22.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
1kg |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
A wall-mounted indoor station for video intercom answering, IPC surveillance viewing and alarm zone integration in homes or small offices.
The 10-inch 1024x600 capacitive touch screen gives residents an easy, responsive interface for answering visitors and reviewing camera feeds.
Six on-board wired zones plus eight wireless 433MHz zones let you tie door and motion sensors into the indoor monitor for consolidated alerts.
DC 12V or PoE 802.3af power and 10/100Mbps Ethernet with Wi-Fi support simplify installation where cabling options vary.
