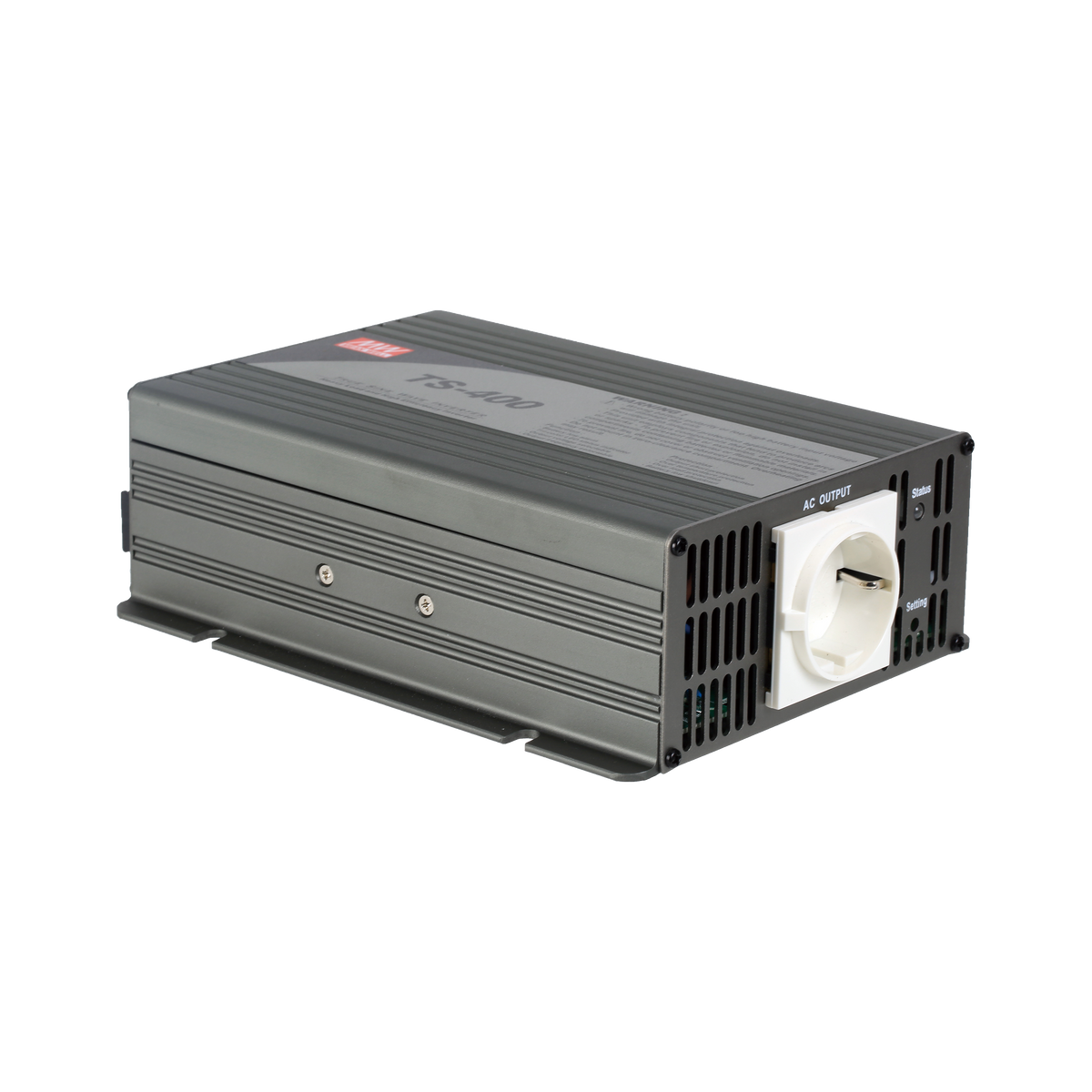

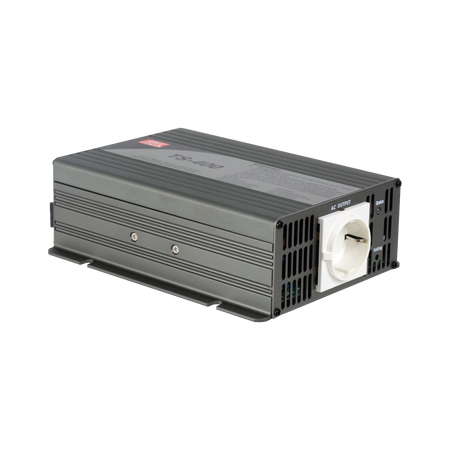

Dahua TS-400-248B 400W 48V Solar Sine Wave Inverter
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
TS-400-248B
Special Inverter of Solar Power Supply System
> 42~60VDC wide-range input voltage, suitable for 48V battery of solar power supply system
> High efficiency up to 88.5%
> Protections: Battery low alarm / Battery low shutdown / Over voltage / Over temperature / Output short / Input reverse polarity / Overload
> Output voltage / frequency adjustable
Product Data
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
TS-400-248B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated Power |
400W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Output Power |
460W for 180 sec. / 600W for 10 sec. / surge power 800W for 30 cycles |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AC Voltage |
Factory setting set at 230VAC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
200 /220 / 230/ 240Vac selectable by setting button |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency |
50±0.1Hz 50/60Hz selectable by setting button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wave Form |
True sine wave (THD<3%) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Front Panel Indicator |
Green : normal, Red : abnormal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Voltage Range |
42 ~ 60VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DC Current |
10A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
No Load Current Draw |
0.32A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Efficiency |
88.5% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Types |
Gel battery & lead-acid battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Input Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fuse |
20A*1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Low Alarm |
45VDC ± 4% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Low Shutdown |
42VDC ± 4% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Polarity |
By internal fuse open |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Over Temperature |
70℃±5℃ (158℉±41℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Short |
Protection type : Shut down o/p voltage, re-power on to recover |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Over Load |
105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection type : Shut down o/p voltage, re-power on to recover0 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
-10 ℃~ +40℃(+14℉ ~ +104℉) @100% load ; +60℃(+140℉) @50% load |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Humidity |
20% ~ 90% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
-30 ℃~ +70℃(-22℉ ~ +158℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
10% ~ 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structural Parameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
1.5kg (3.3lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension (LxWxH) |
205mmx158mmx67mm (8.07"x6.22"x2.64") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE (EN55011, EN55022, EN55024) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Note: 1. In view of the outdoor high temperature environment, the actual application process does not exceed 50% load. 2. AC regulation and THD are tested by 400W, linear load at 52V input voltage. 3. The tolerance of each voltage value by models is ±2V. 4. Effifiency is tested by 300W, linear load at 52V input voltage. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering AC surveillance and access-control loads from a 48V solar battery bank in off-grid or backup sites.
Delivers a clean true sine wave with low distortion so connected equipment runs smoothly rather than on a rough modified waveform.
Accepts a broad DC input range suited to 48V solar battery systems, giving flexibility as battery voltage rises and falls.
Covers battery low alarm and shutdown, over voltage, over temperature, output short, reverse polarity and overload for safer operation.
